10.4.8 Data transmission between I/O system IP20 and controller
In the Lenze setting of the I/O system IP20, the basic identifiers of the PDOs are
set for the communication protocol ”system bus (CAN)”.
For communicatingwithLenzecontrollers thebasic identifiersfortheprocessdata
object 1 must be adapted.
1. Set PDO1-Rx via index 1400
h
, subindex 1 to 770.
2. Set PDO1-Tx via index 1800
h
, subindex 1 to 769.
3. Make a reset node by setting the index I2358h = 1. The settings are
accepted.
l
L
EPM – T110 1A.10
PW
ER
RD
BA
ADR.
0
1
+
–
DC
24V
X1
DO 8xDC24V 1A
.0
L+
.1
.2
.3
.4
.5
.6
.7
F
1
2
3
4
5
6
7
8
9
L
10
EPM – T220 1A
DI 8xDC24V
.0
.1
.2
.3
.4
.5
.6
.7
1
2
3
4
5
6
7
8
9
L
10
EPM – T210 1A
PDO1-Rx
CAN_OUT3
CAN_IN3
PDO1-Tx
0
1




epm-t112

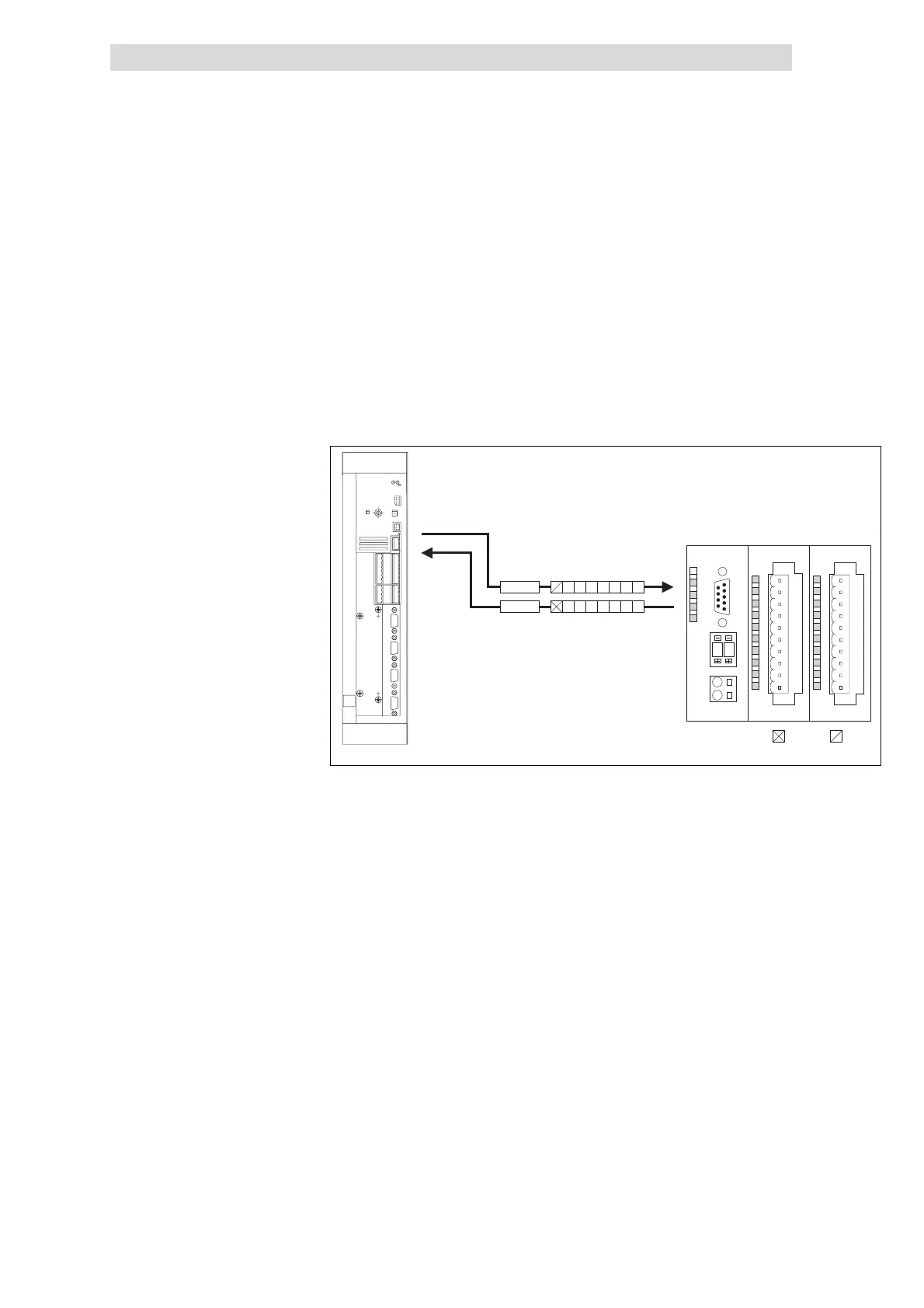

Fig. 10.4-2 Data transmission between I/O system IP20 and controller
PDO-Rx The I/O system IP20 receives the status information of the controller
PDO-Tx The I/O system IP20 transmits the status information to the controller

Controller with node address 1 (C0350 = 1)
c 768
d
(Basic identifier) + 1 (node address) = 769
d
(identifier)
d 769
d
(Basic identifier) + 1 (node address) = 770
d
(identifier)

CAN gateway of the modular system (or a module of the compact system)
with node address 2
e 767
d
(Basic identifier) + 2 (node address) = 769
d
(identifier)
f 768
d
(Basic identifier) + 2 (node address) = 770
d
(identifier)
