Parameterising SSI interface
Input data / output data
12
Parameter setting
12.5
12.5.2
l
12.5-5
EDSPM-TXXX-3.0-04/2004

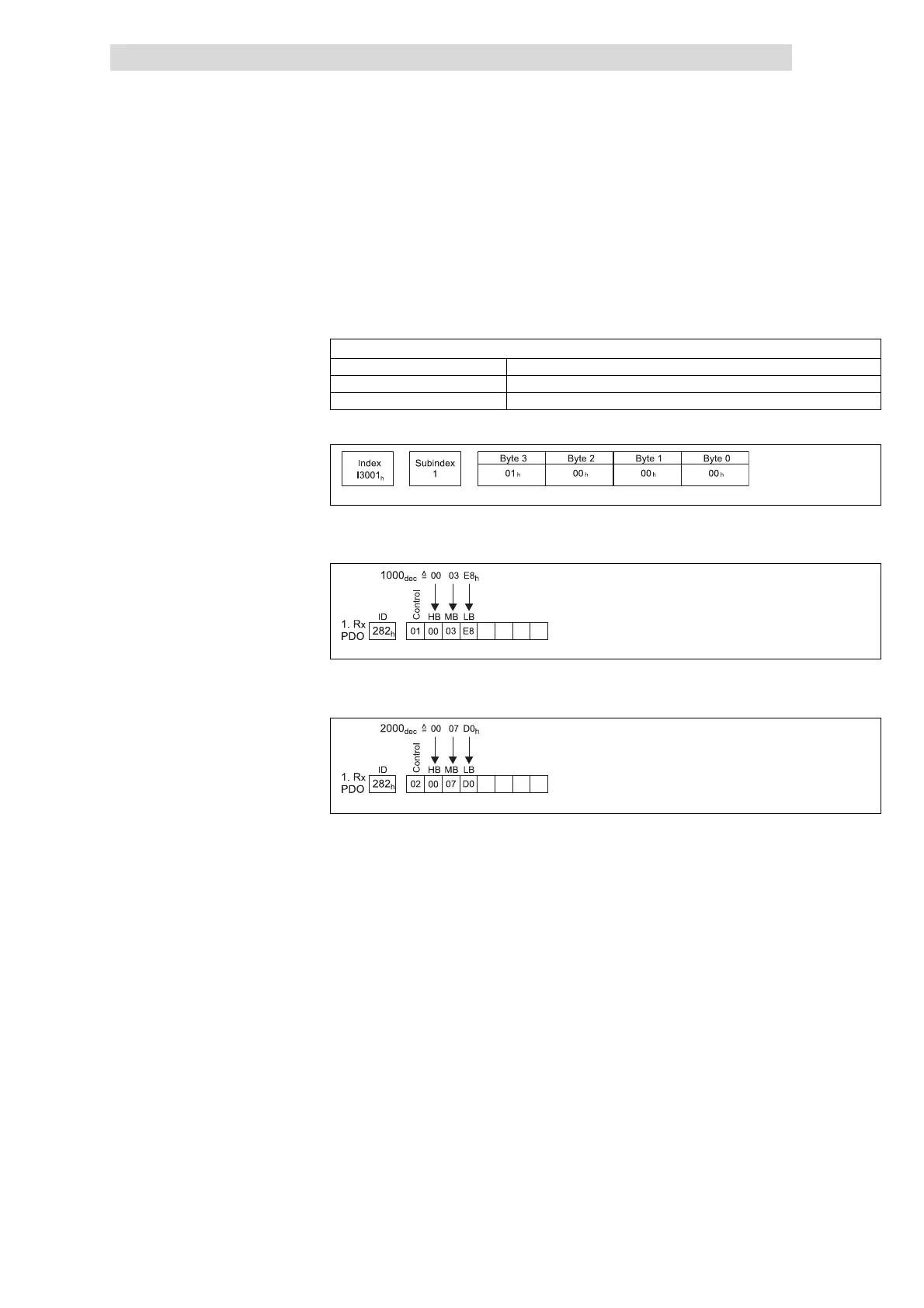

The station consists of a CAN gateway and an SSI interface. An encoder with a
24-bit resolution and Gray code is used.
Output I/O.0 is to switch with count value of > 1000, output I/O.1 with a count value
of > 2000. The figures are given in a hexadecimal format to provide a simpler
representation.
Selection
Node address 2
Coding (I3001/1) Gray Code
Hold function (I3001/1) Deactivated
1. Assigning parameter data
epm-t188
Fig. 12.5-5 Example - How to assign parameter data when using SSI interface
2. Assigning comparison value for channel 0
epm-t189
Fig. 12.5-6 Example - How to assign a comparison value to channel 0 when using SSI interface
3. Assigning comparison value for channel 1
epm-t190
Fig. 12.5-7 Example - How to assign a comparison value to channel 1 when using SSI interface
Example
