Lenze EPM-T110 - Fig. 12.4-34 Counter Access of the 24 Xcounter in the Modes 17 and 19

Parameterising 2/4xcounter module
Measuring the period (modes 17 and 19)
12
Parameter setting
12.4
12.4.10
l
12.4-27
EDSPM-TXXX-3.0-04/2004
Mode 17:
The output OUT 0 is set to HIGH level when the
measuring process starts, and is
set to LOW level, when the measuring process is completed. The output OUT1
indicates the output signal of OUT0 in an inverted way.
Mode 19:
The output OUT 0 is set to HIGH level when the
counting process starts, and is set
to LOW level, when the counting process is completed. The output OUT1 indicates
theoutputsignalofOUT0inaninvertedway.
T Avera ge period
n
f
ref
Reference frequency (see figure ”counter access”)
T =
n
f
⋅
m
m Content, counter 1 (number of reference frequency pulses)
T
f
ref
⋅ m
n Number of CLK pulses in counter 0 (corresponds to Compare unless prematurely
terminated by a HIGH signal at input IN4 (STOP)
epm-t092

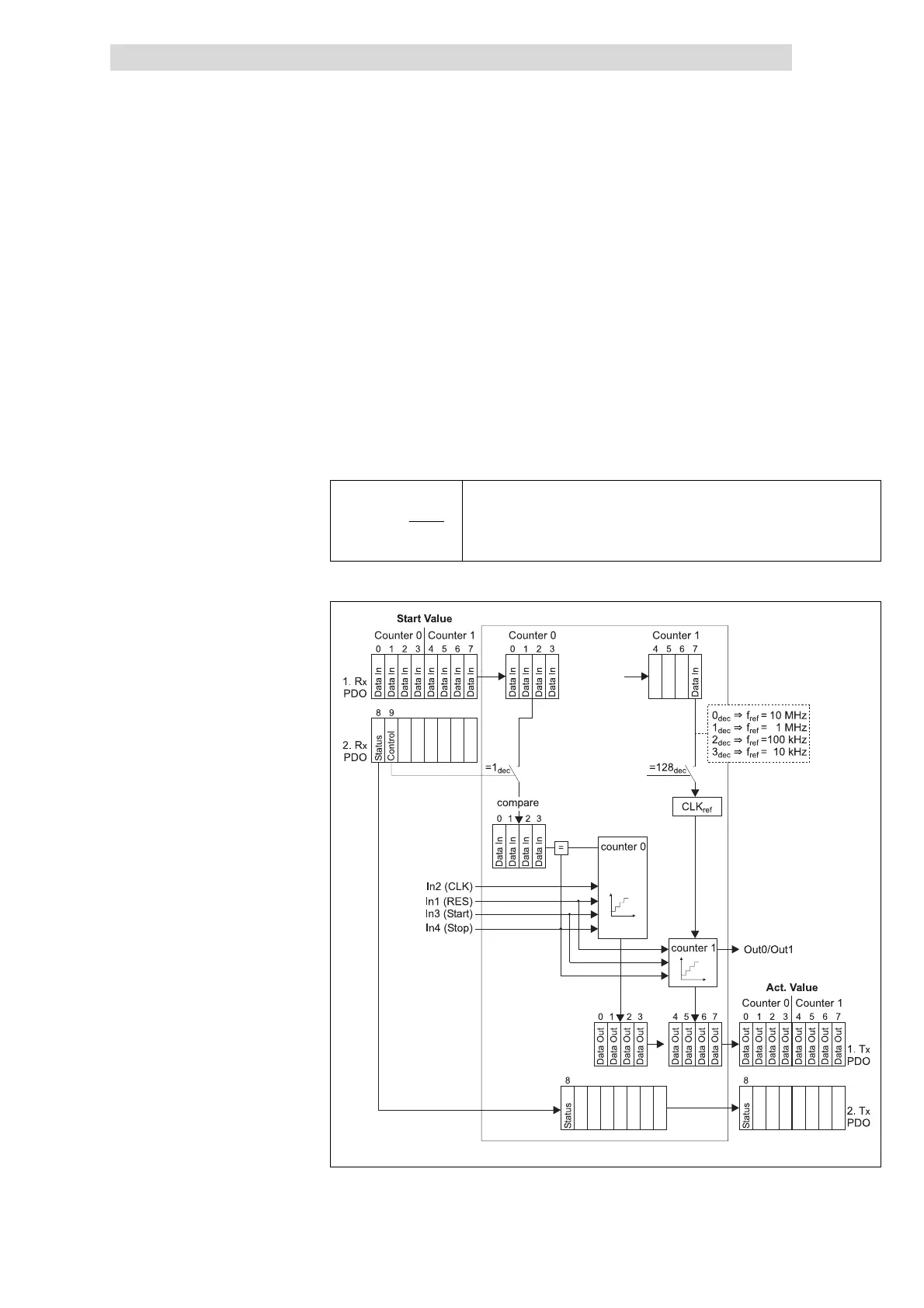

Fig. 12.4-34 Counter access of the 2/4xcounter in the modes 17 and 19
OUT signal
Computing the period
Counter access
