Parameterising 2/4xcounter module
Encoder with GATE (modes 36 ... 38)
12
Parameter setting
12.4
12.4.19
l
12.4-56
EDSPM-TXXX-3.0-04/2004
The counter is incremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a HIGH-LOW edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a HIGH-LOW edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
epm-t170

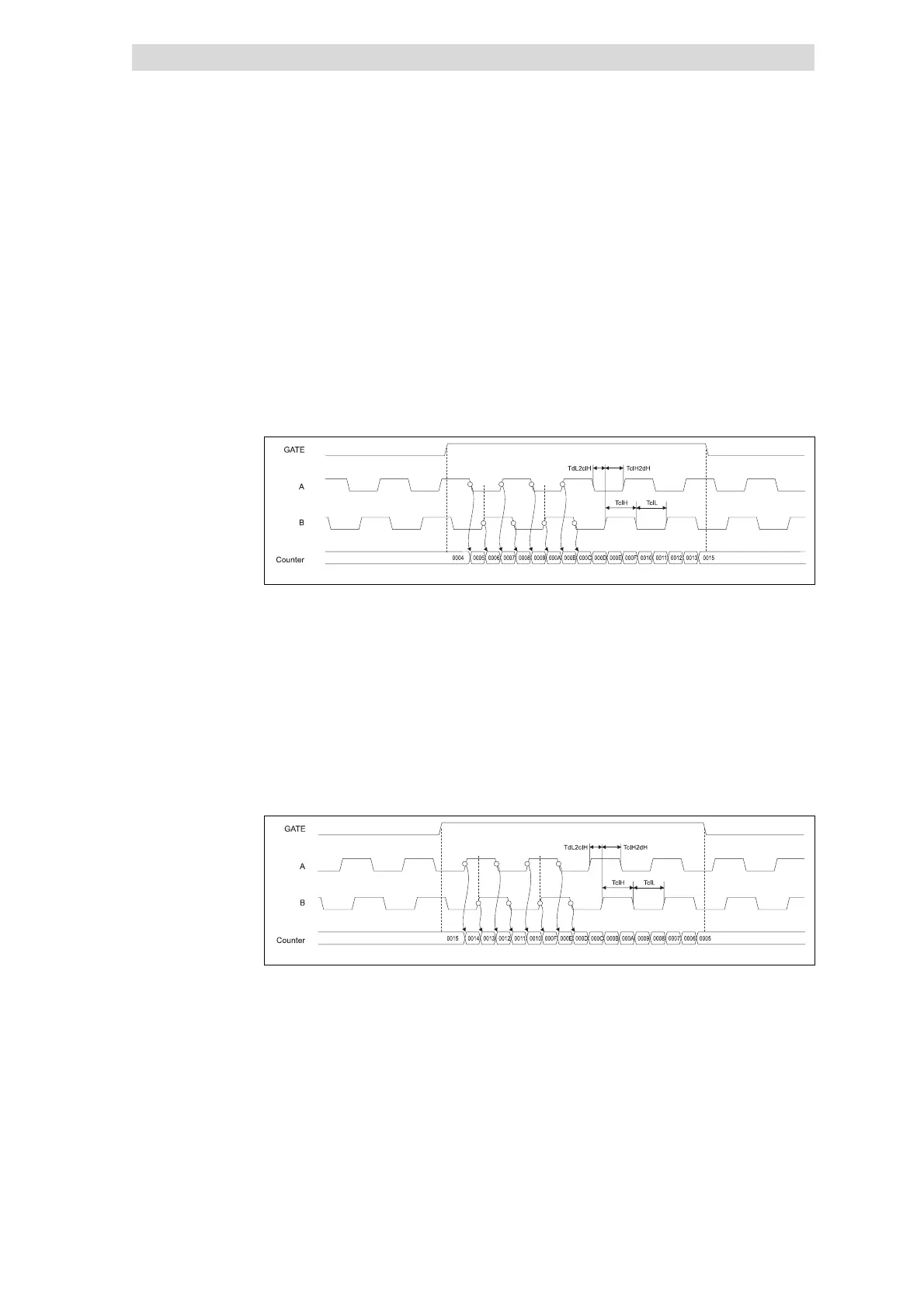

Fig. 12.4-78 Signal characteristic of 2/4xcounter in the mode 38 (upcounter)
The counter is decremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
epm-t171
Fig. 12.4-79 Signal characteristic of 2/4xcounter in the mode 38 (downcounter)
Signal characteristic in mode 38
