Lenze EPM-T110 - Page 246

Parameterising 2/4xcounter module
2 × 32 bit counter with GATE and set/reset (modes 23 ... 26)
12
Parameter setting
12.4
12.4.13
l
12.4-36
EDSPM-TXXX-3.0-04/2004
epm-t084

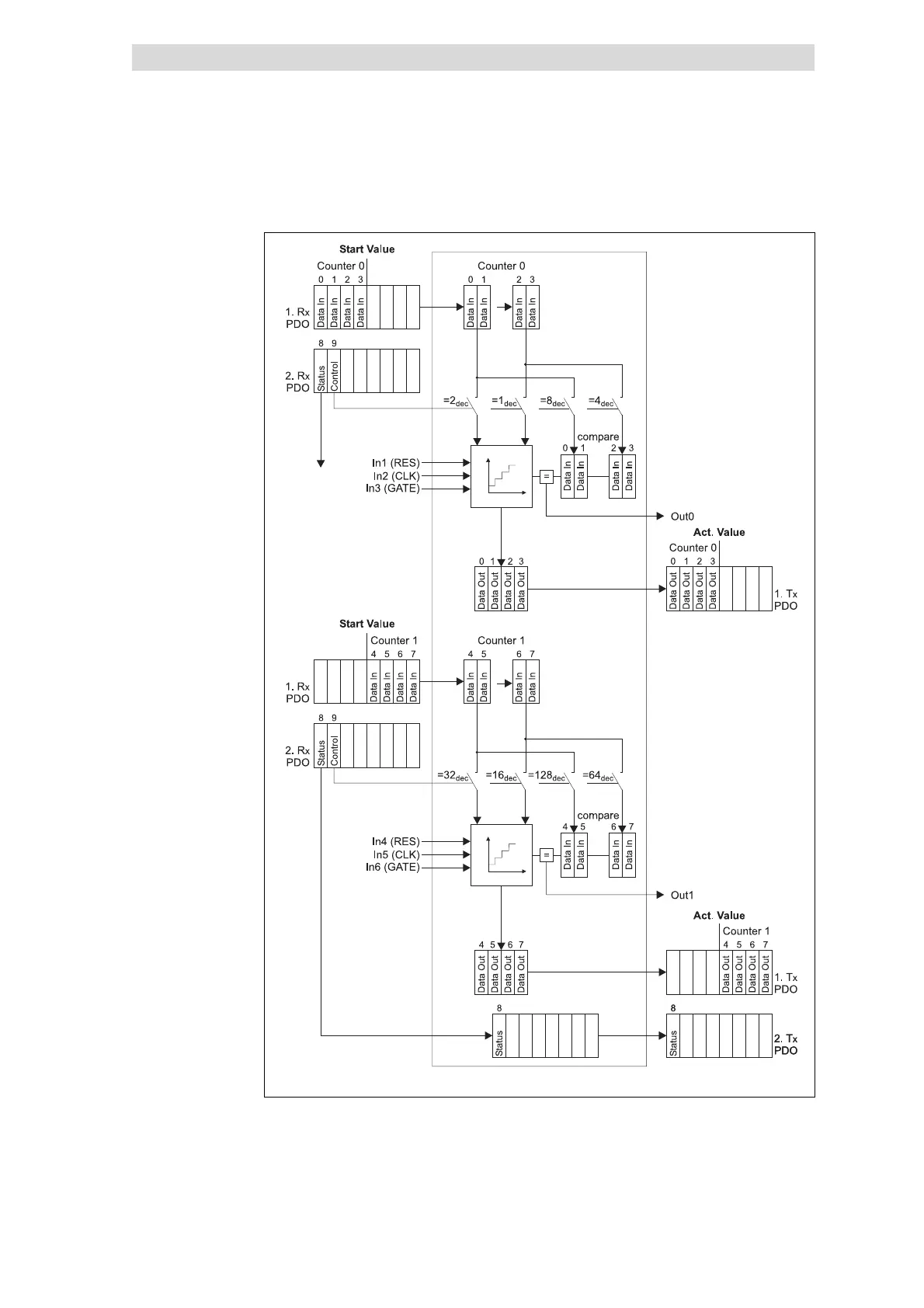

Fig. 12.4-46 Counter access of the 2/4xcounter in the modes 23 ... 26
Counter access
