Parameterising 2/4xcounter module
Encoder with G/RES (modes 28 ... 30)
12
Parameter setting
12.4
12.4.15
l
12.4-44
EDSPM-TXXX-3.0-04/2004
The counter is incremented by 1 on
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z
a HIGH-LOW edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z
a HIGH-LOW edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
epm-t152

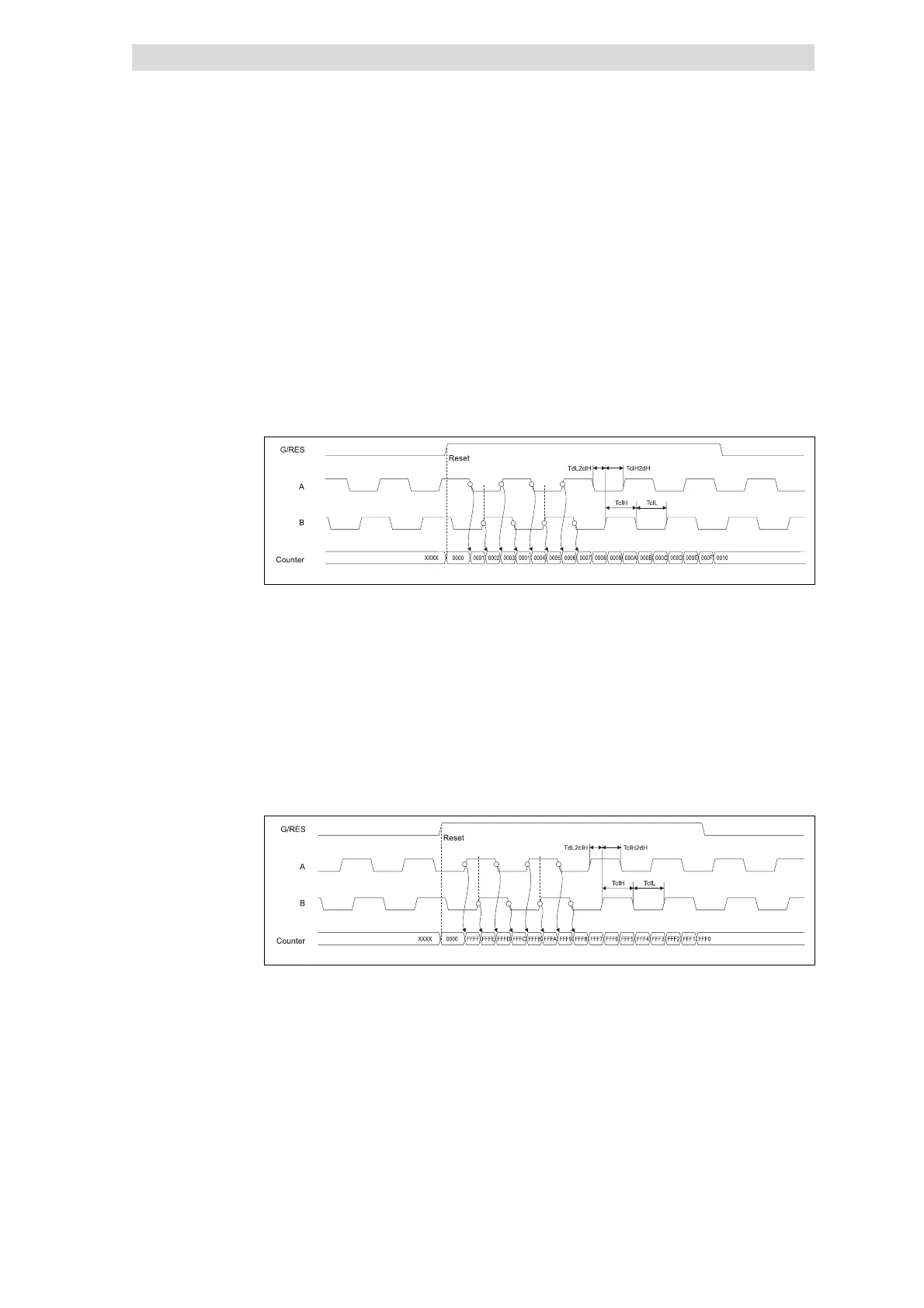

Fig. 12.4-60 Signal characteristic of 2/4xcounter in the mode 30 (upcounter)
The counter is decremented by 1 on
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z
a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
epm-t153
Fig. 12.4-61 Signal characteristic of 2/4xcounter in the mode 30 (downcounter)
Signal characteristic in mode 30
