Lenze EPM-T110 - Page 256

Parameterising 2/4xcounter module
2 × 32 bit counter with GATE and RES edge-triggered (mode 31 and 32)
12
Parameter setting
12.4
12.4.16
l
12.4-46
EDSPM-TXXX-3.0-04/2004
epm-t155

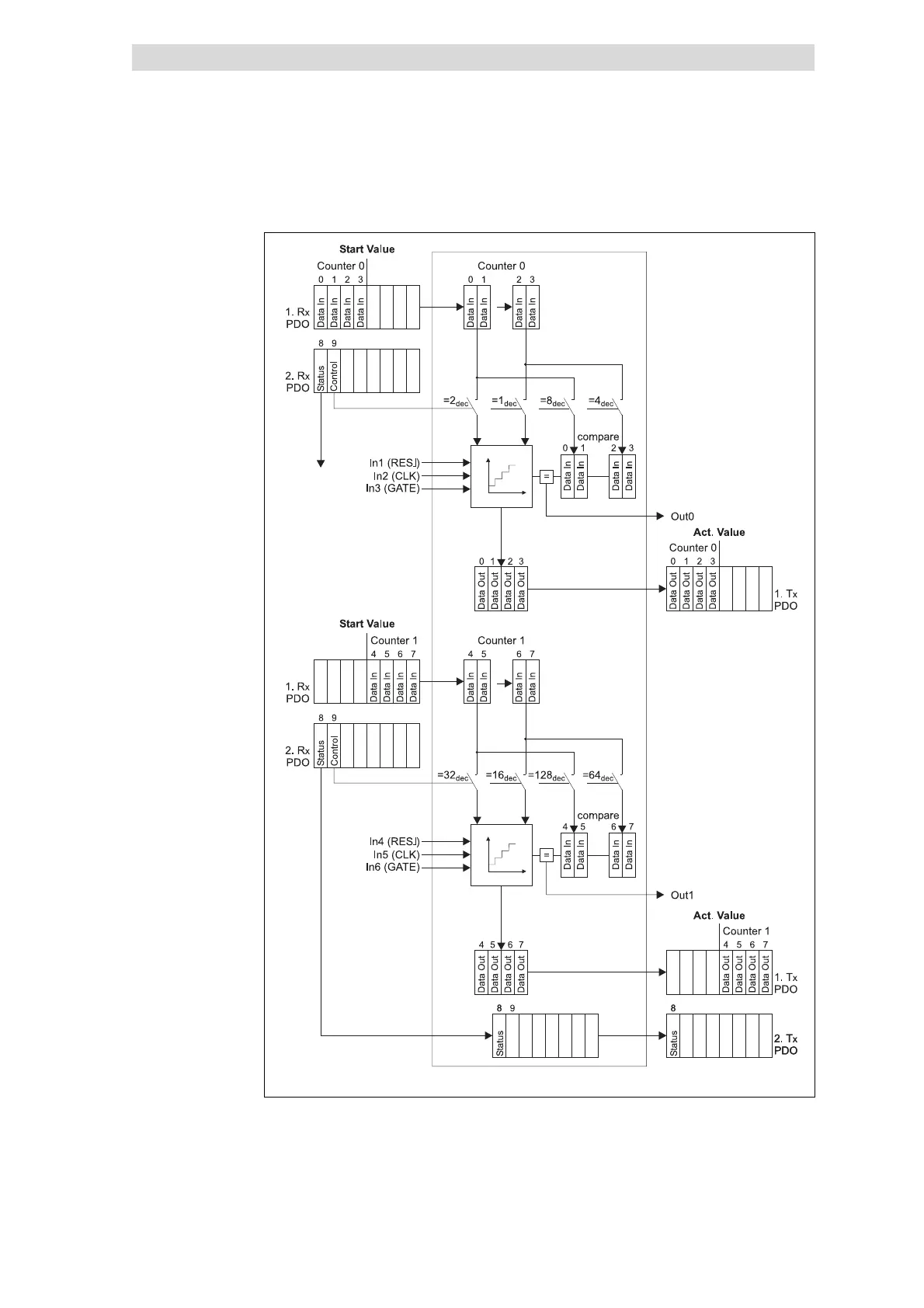

Fig. 12.4-63 Counter access of the 2/4xcounter in the modes 31 and 32
Counter access
