8×digital input
5
The modular system
5.3
l
5.3-2
EDSPM-TXXX-3.0-04/2004
DI 8xDC24V
.0
.1
.2
.3
.4
.5
.6
.7
1
2
3
4
5
6
7
8
9
L
10
EPM – T210 1A
0
1
+
–
1
2
3
4
5
6
7
8
9
10
DC 24 V (DC 18 … 28.8 V)
.
epm-t025 epm-t026

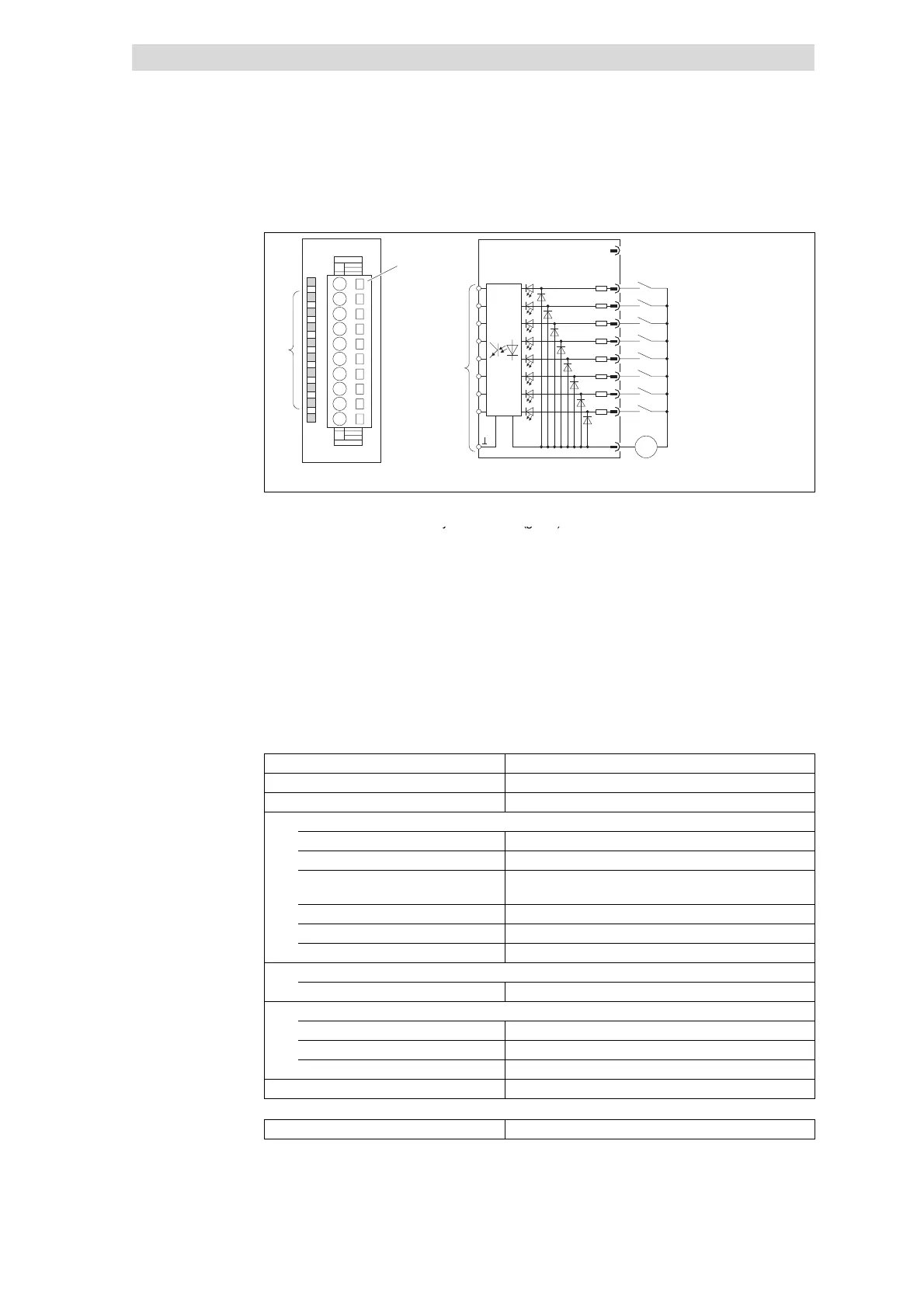

Fig. 5.3-2 Front view and connection of 8×digital input

Status display .0 ... .7; LED (green) is
l
i
t
h
H
I
G
H
l
l
i
i
d

Terminal strip assignment details
y
(
g
)
lit when a HIGH level is recognised
1 Not assigned
2 Digital input E.0
3 Digital input E.1
4 Digital input E.2
5 Digital input E.3
6 Digital input E.4
7 Digital input E.5
8 Digital input E.6
9 Digital input E.7
10 GND (reference potential)
)
Connection to backplane bus
Type
8×digital input
Voltage supply DC 5 V / 20 mA (via backplane bus)
Connectable cable cross-section ≤ 2.5 mm
2
(≥ AWG 14)
Digital inputs
Rated input voltage DC 24 V (DC 18 ... 28.8 V)
Number of i nputs 8
Level LOW: DC 0 ... 5 V
HIGH: DC 15 ... 30 V
Input resistance 3.3 kΩ
Delay time 3ms
Electrical isolation from backplane bus Yes, via optocouplers
Communication
Input data 1byte
Dimensions
Width 25.4 mm
Height 76.0 mm
Depth 76.0 mm
Weight 50 g
Order designation EPM-T210
Status display and terminal
assignment
Technical data
