Diagnostic aids 3-63
4062-XXX
The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear.
The rear guide should come into contact with the media and hold it in position.
Side guide
The media tray assembly is designed so it can adapt to the media width in the media feed direction by moving
the side guide to the left or right.
Wear strips
The wear strips are designed to provide a fixed resistance to ensure that a single piece of paper is properly fed
out of the media tray. There are several types of wear strips available for custom or hard to feed media.

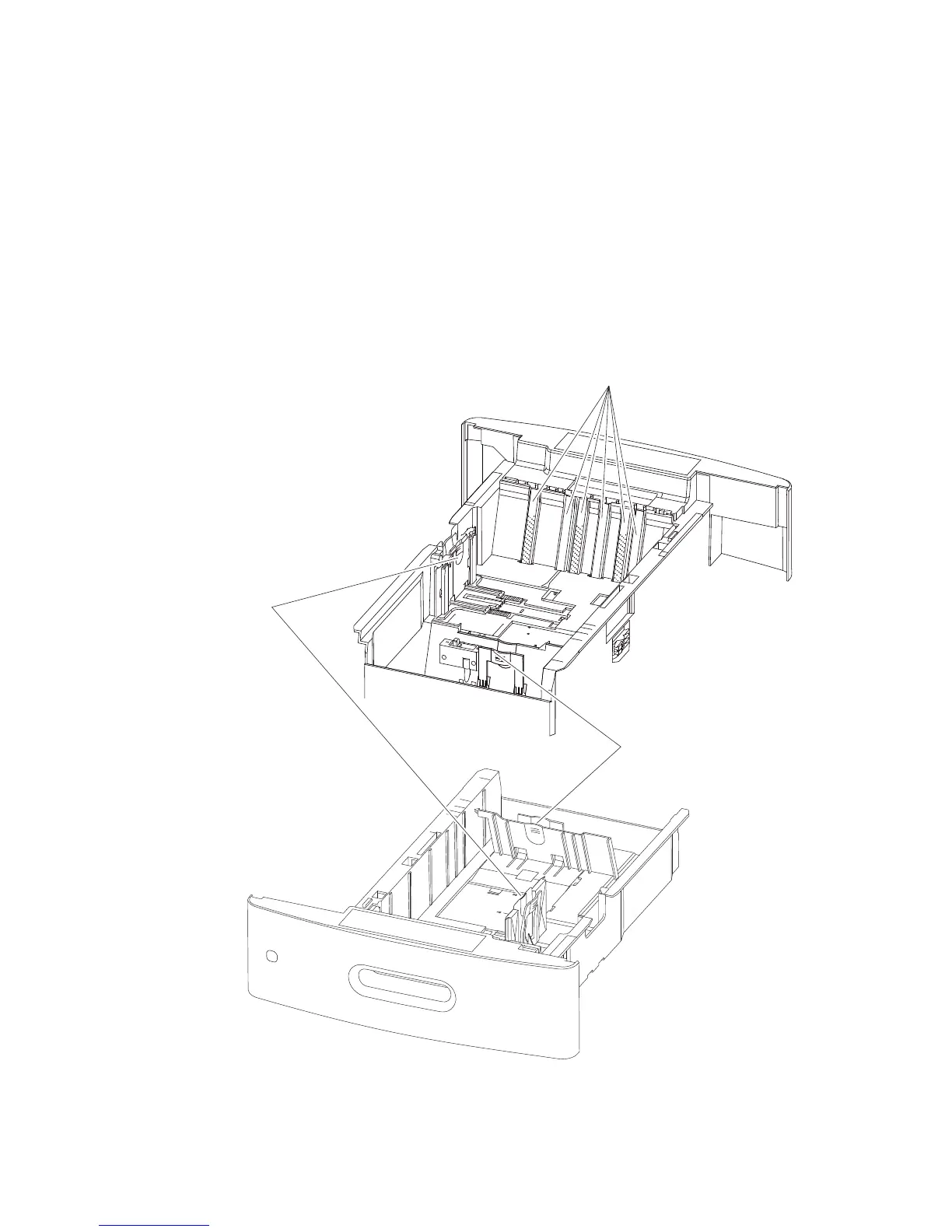

Media tray assembly
Detection of media size
Wear strips
Side guides
End guides
