Lexmark T650 - SFP Stapler Assembly Media Stack Flap and Media Stack Flap Actuator Removal

To Next Page

To Previous Page

Repair Information 4-181

4062-XXX

SFP stapler assembly media stack flap and media stack flap actuator removal

1. Remove the handle cover. Go to “SFP stapler assembly handle cover removal” on page 4-175.

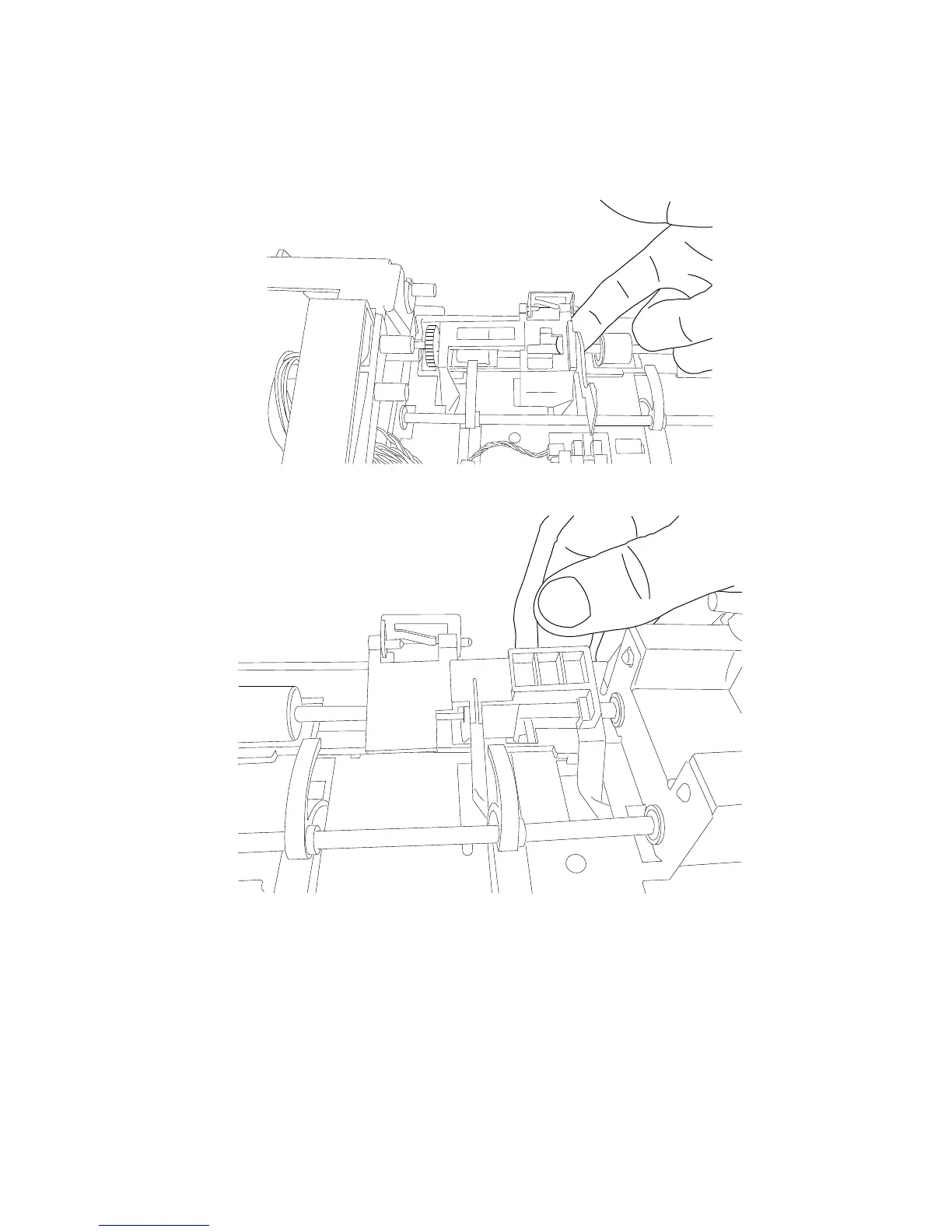

2. Release the locking tab and slide the media stack flap actuator to the right and remove.
