5. Remove the HCIT tray lift drive motor assembly.
High capacity input tray (HCIT) controller card assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, left. Go to “High capacity input tray (HCIT) cover, left removal” on page 4-122.

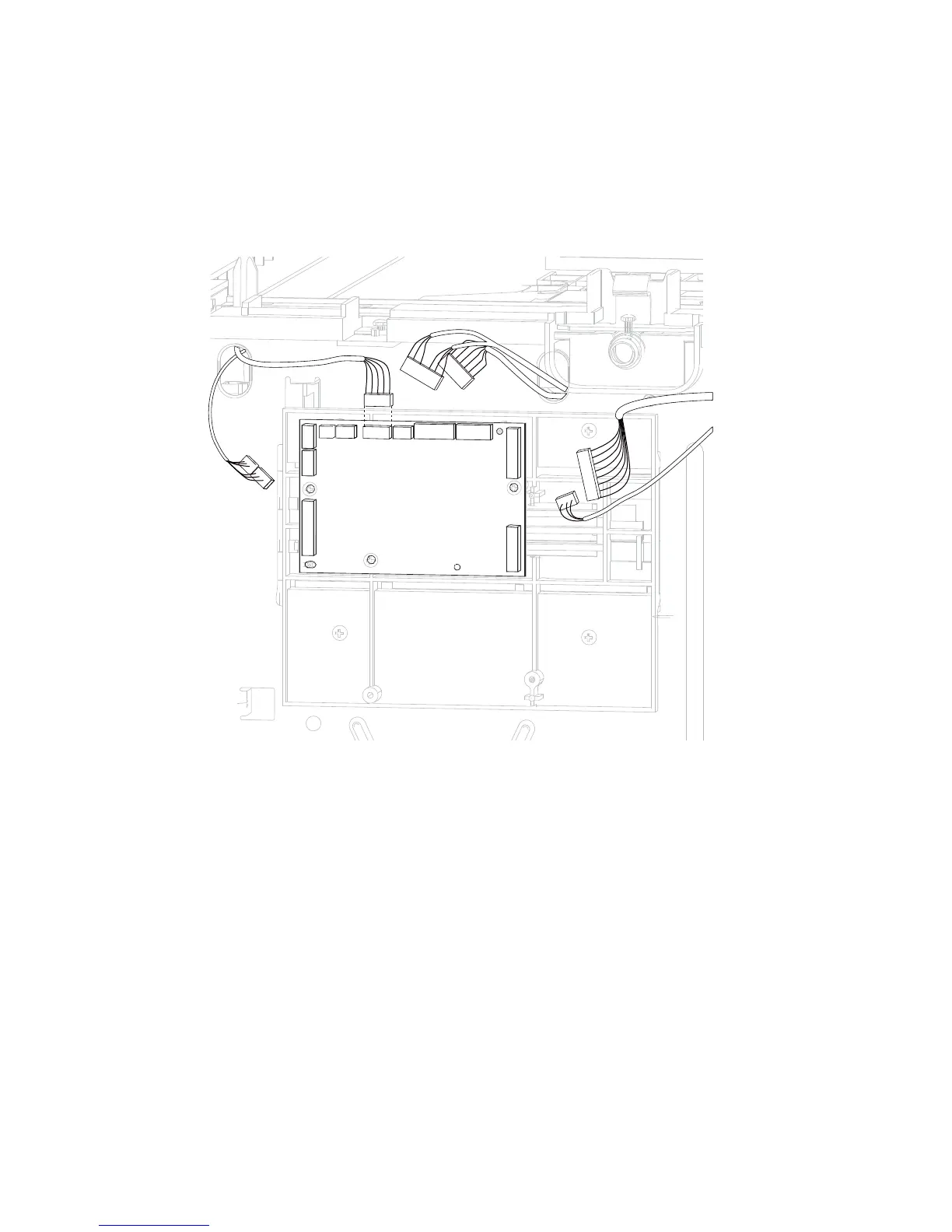

2. Disconnect all connectors from the HCIT controller card assembly.
