Lexmark T650 - Sheet Controller Card Assembly Removal

To Next Page

To Previous Page

Repair Information 4-111

4062-XXX

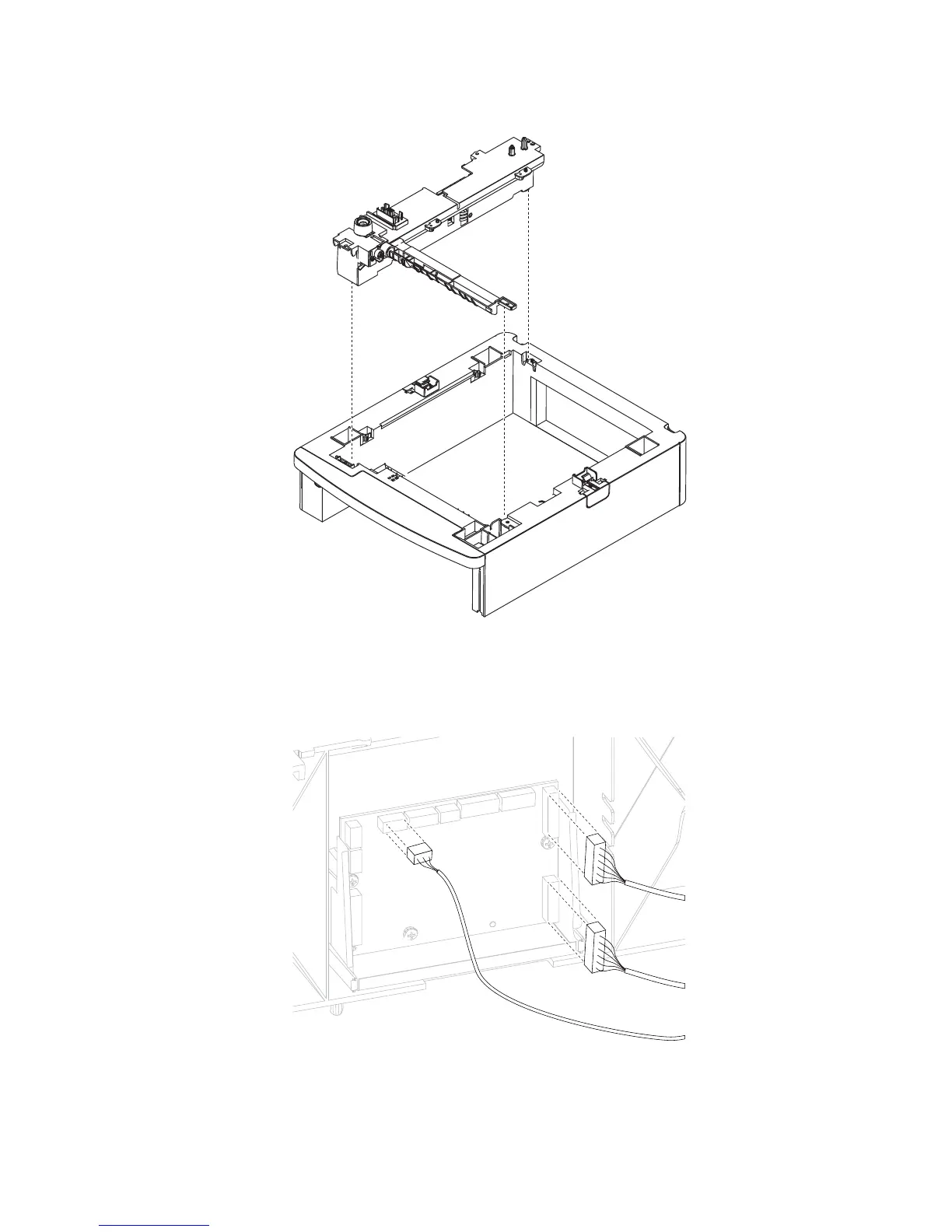

5. Remove the 550-sheet frame assembly.

550-sheet controller card assembly removal

1. Remove the 550-sheet frame assembly. Go to “Media size actuator removal” on page 4-159.

2. Disconnect the three connectors from the 550-sheet controller card assembly.
