Lexmark T650 - High Capacity Input Tray (HCIT) Tray Closed Latch with Spring Removal; High Capacity Stacker Rear Door Assembly Removal

4-132 Service Manual
4062-XXX
High capacity input tray (HCIT) tray closed latch with spring removal
The left and right tray closed latches with springs are the same, and only one is in a package. The instructions
below are for removing the left latch; removing the right latch has similar instructions.
1. Remove the HCIT media tray assembly. Go to “High capacity input tray (HCIT) media tray assembly
removal” on page 4-115.

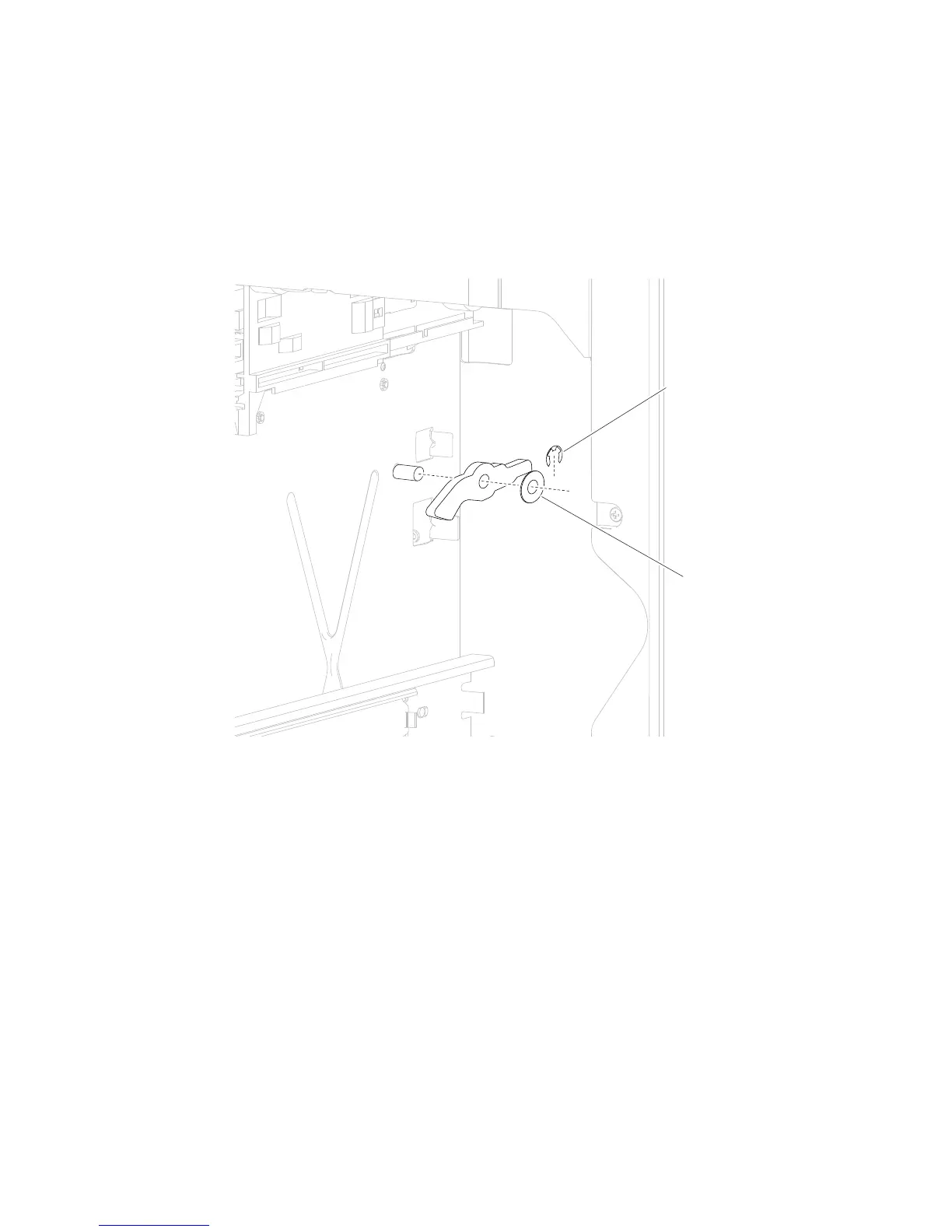

2. Remove the E-clip (A) and the washer (B) with a prying tool securing the HCIT tray closed latch with spring
to the left frame.
3. Remove the HCIT tray closed latch with spring.
High capacity stacker rear door assembly removal
1. Open the rear door assembly.
2. Remove the rear door strap by twisting vertically and pulling it out of the slot.
A
B
