EXTERNAL EQUIPMENT SETUP
23
When connecting HDMI to DVI cable
GG
If the PC has a DVI output and no HDMI output, a separate audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the PC graphics card's output resolution to 1024x768, 60Hz.
NOTE
!
ANTENNA
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO AUDIOAUDIO
AV IN 1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO OUTOUT
OPTICAL
HDMI/DVI INHDMI/DVI IN
1
RGB INRGB IN
RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
L R
DVI-PC OUTPUT
VIDEO
HDMI/DVI IN
COMPONENT IN
VIDEO AUDIO
DIGITAL
AUDIO OUT
RGB IN
2
(DVI) (DVI)
(DVI)
AUDIO

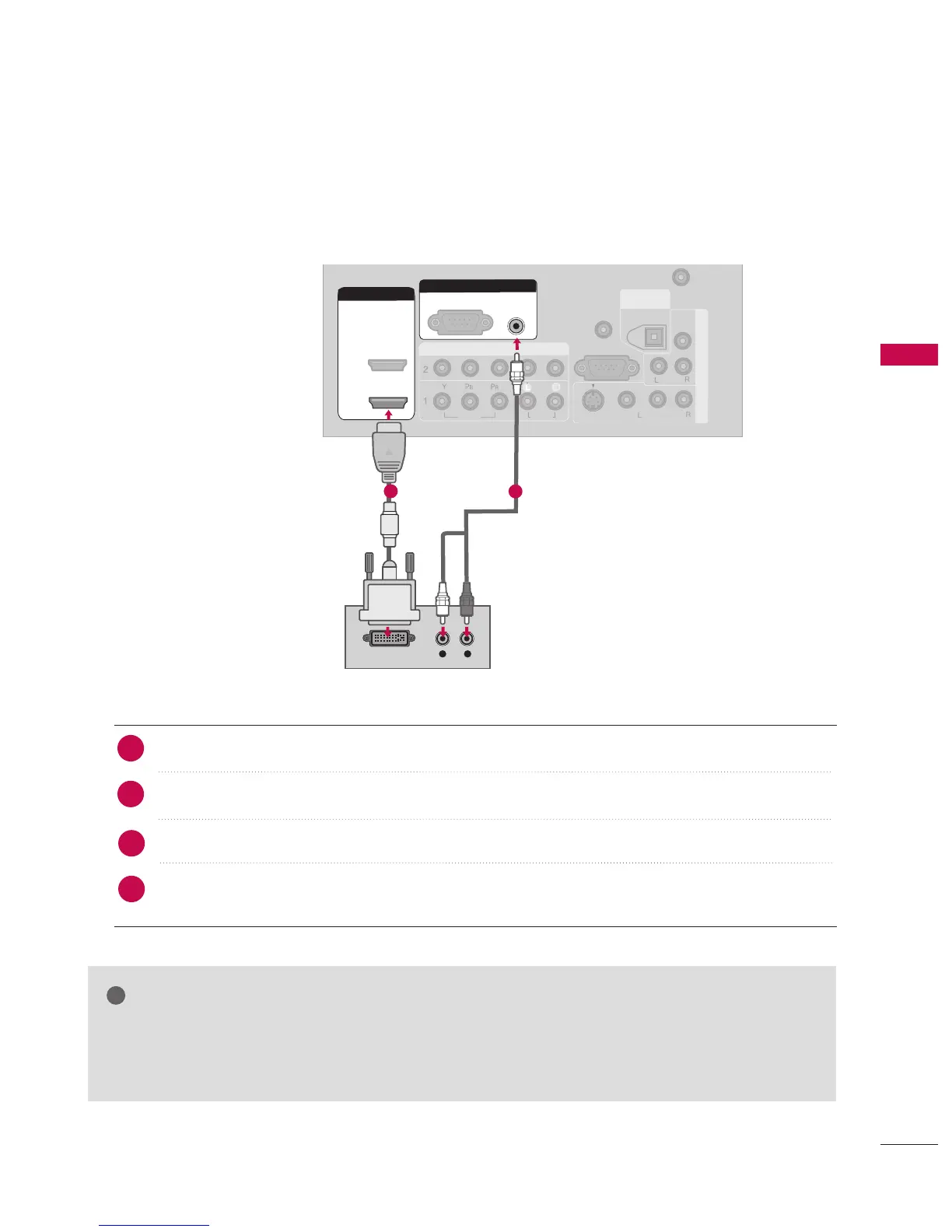

Connect the DVI output of the PC to the HHDDMMII//DDVVII IINN 11jack on the set.
Connect the PC audio output to the AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
Turn on the PC and the set.
Select HHDDMMII11//DDVVII input source using the IINNPPUUTT button on the remote control.
