OptiCare for Multicare
DISCONNECTED AIR PIPES
If either the red, yellow or black air pipe is disconnected from the System Control Unit the following alert appears in the screen.
NOTE: Red strip above the mattress icon is ashing during this alert.
NOTE: Blue air pipes disconnected from the Sytem Control Unit do not cause this alert!
To remove this alert:
► check and reconnect each air pipe to the compressor!

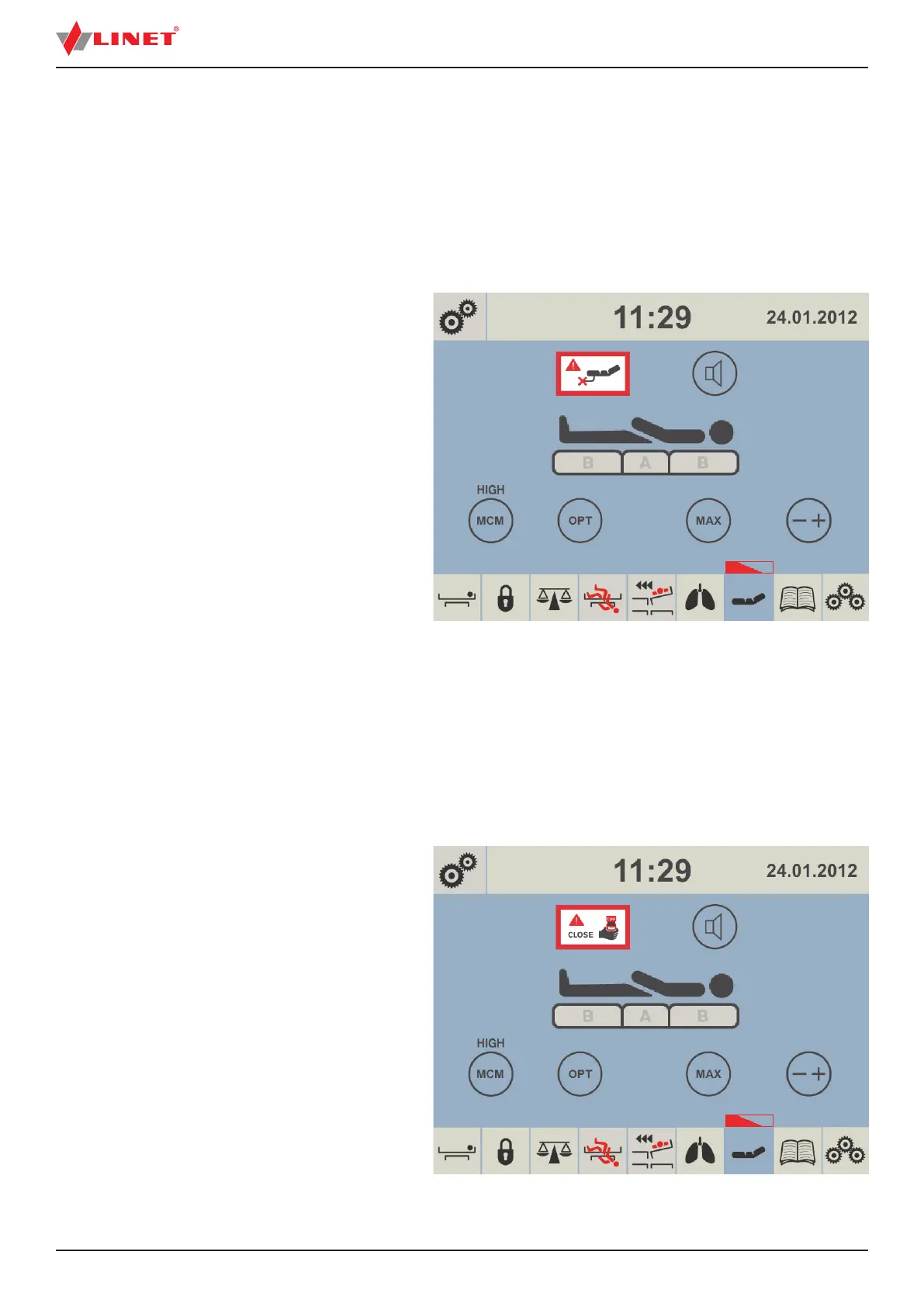

Fig. Alert – Disconnected Air Pipes
CLOSE CPR
When CPR valve is opened and the mattress is in ating this screen appears.
NOTE: Red strip above the mattress icon is ashing during this alert.
To remove this alert:
► close CPR valve manually!
Fig. Alert – CLOSE CPR
