5.22 5.22 Transmission system radioTransmission system radio
The transmission system radio is a radio system with bi-
directional operation. The transmission system facilitates
wireless signal transmission from safety equipment to door
systems.
The radio connection exists between an internal, pluggable
component, which is connected to X20, and an external unit
that is mounted on the door leaf.
It is possible to transmit signals from different closing edge
systems and/or a safety circuit.
Transmission with spiral cable is thereby omitted.

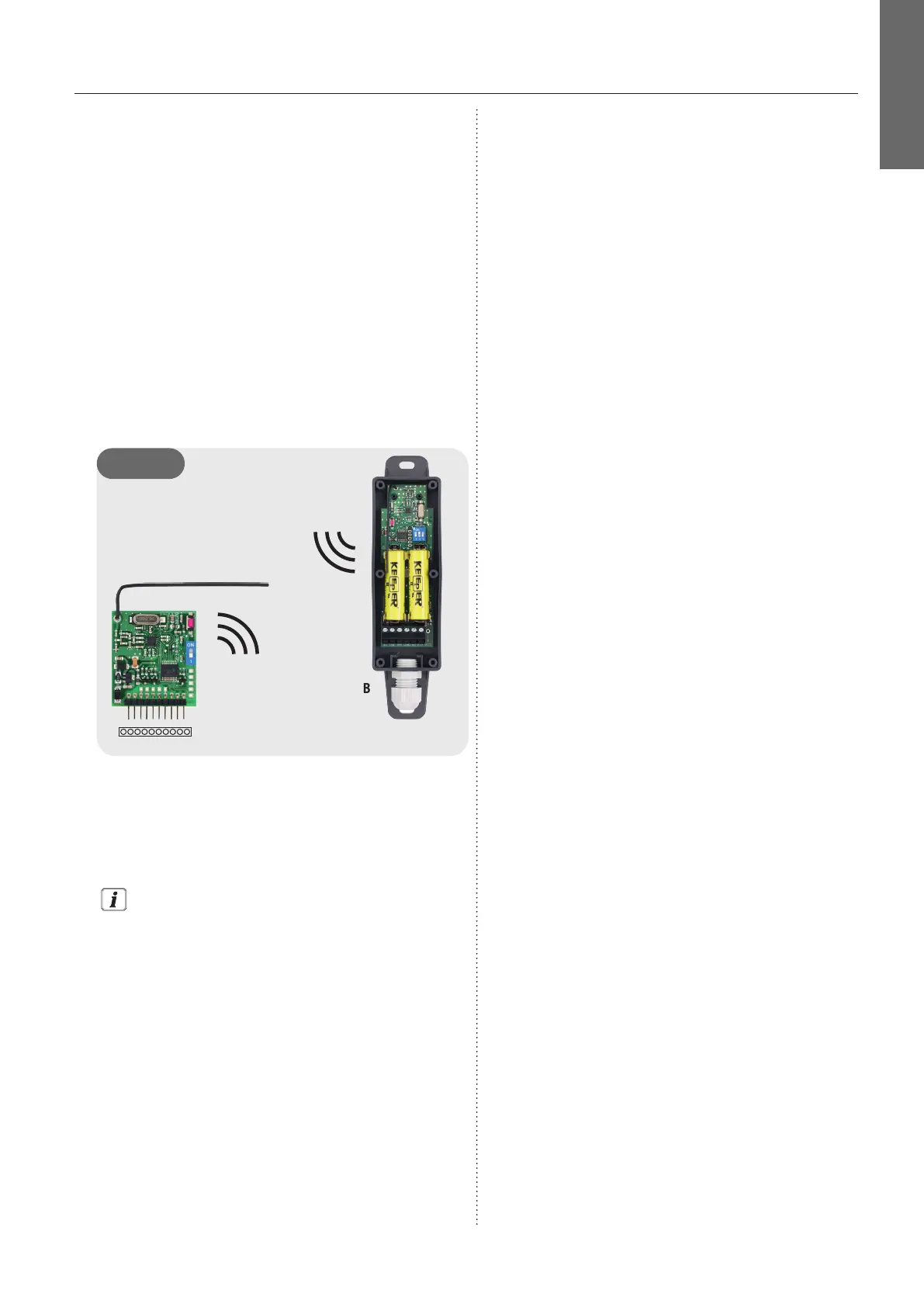

X20
A
B
5.22 / 1
A Pluggable components. Is connected to connector
stripX20oftheCS320.
B External unit. Is mounted on the door leaf. The safety
strip and safety circuit are connected here.
REFERENCE
For a precise description of the function and connection,
refer to the separate documentation for the transmission
system.
6. Initialisation
WithrstcommissioningandafteraRESETthefollowing
components are automatically detected and programmed:
− End position system
− Closing edge protective device
− Light barrier system
− Input 2 (safety input)
During this process (approx. 60 seconds) the green LED
ashesandthedisplayshows“PLEASEWAIT…”inthetop
line.
Operation of the system is not possible at this time.
Theendpositionsystemmustbeinstalledbeforerst
commissioning.
Components can be retrospectively changed or added via the
LCD display or renewed initialisation.
If a component is not yet connected, this is shown in the
displaywith“A”.
A search for this component takes place with every
subsequent initialisation. If this is detected, the corresponding
setting mode is set automatically.
Exception:
Input 2 remains inactive (OFF), if a resistance value is not
detectedwithrstinitialisation.
Ifaresistorisdetectedatinput2withrstcommissioning,
this is evaluated as a safety element and put into operation as
a safety input.
Ô “10.2Inputoperatingmode”/parameterINPUT2
NOTE:
Initialisation serves not only to teach the different system
components, but also offers the option of changing the menu
language directly.
Thepre-setmenulanguage(ENGLISH)appearsfor
60secondsasashingtextinthedisplay.Withthe[+]and
[–]buttonsitispossibletoselectthedesiredlanguage
andsavethiswiththe[P]button.Alltexts/messagesare
subsequently displayed in the selected language.
