CP5 • System description
CP_SEM_60-00-60.001 19

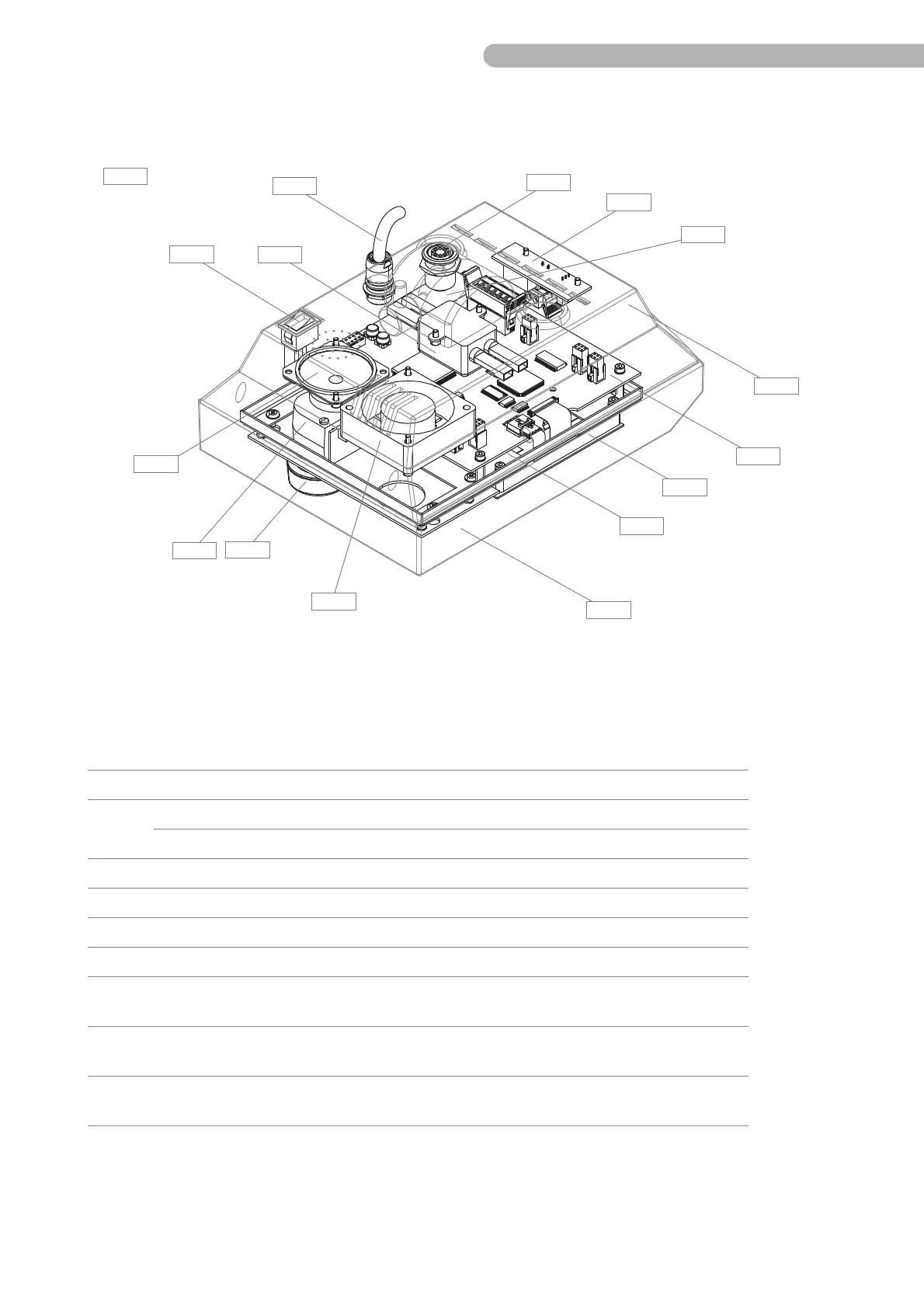

3.2.1 Assembly overview – Control panel
Fig. 3: Assembly overview – Control panel
A
A 1
A 14
A 9
A 15
A 16
A 13
A 12
A 10
A 7
A 5
A 6
A 4
A 11
A 2
A 3
Item Name Number Part Number
A Pump control panel 60-02-60
A1Housing (front) 75-521-515
Front foil 76-102-964
A2 Housing (rear) 75-521-516
A3 Holder for pump control panel 60-02-13
A4 LCD Touch screen 97-103-616
A5 Computer board (for details see page 21) HKR 0325 90-305-620
A6 Circuit board keys and LEDs
(for details see page 22)
HKD 0327 90-305-640
A7 Circuit board Fan control
(for details see page 23)
HDM 0503 90-305-850
A8 Circuit board Inverter
(not shown here: for details see page 23)
LXM1617-05-6x 93-146-026
