3.3.3 Sensor module for flow measurement
On-site repairs can be carried out by replacing circuit boards. Servicing of the circuit boards
themselves is not permitted. For this reason, you should always replace the complete circuit board if a
fault occurs.

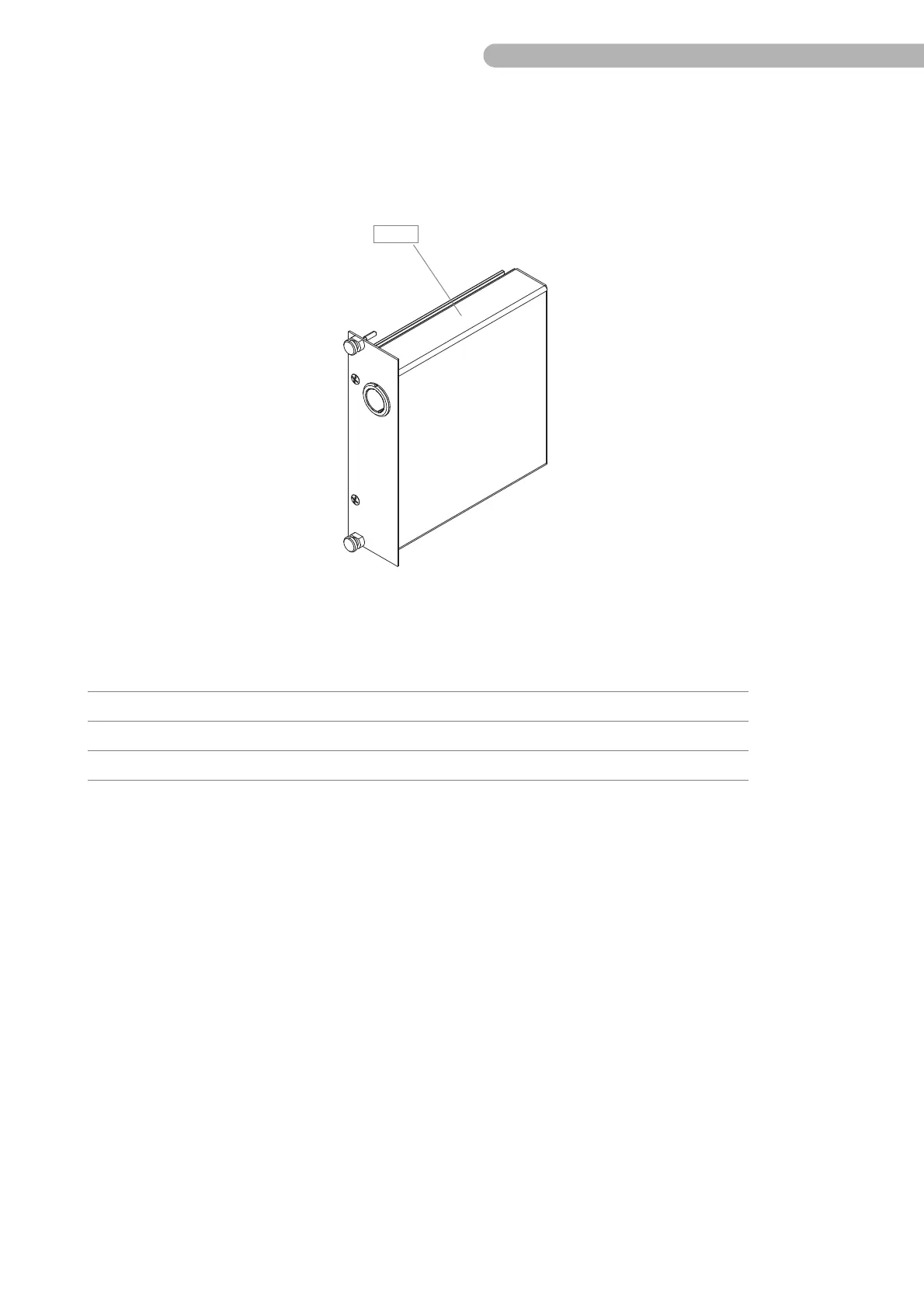

Fig. 13: Sensor module for flow measurement
Item Name Number Part Number
E Sensor module for flow measurement 25-60-70
Sensor board for flow measurement HSF 0803 90-306-010
Board for flow measurement Digiflow-Mini 1 90-325-010
