LivaNova CP5 - Circuit board inverter; Circuit board fan control

CP5 • System description
CP_SEM_60-00-60.001 23

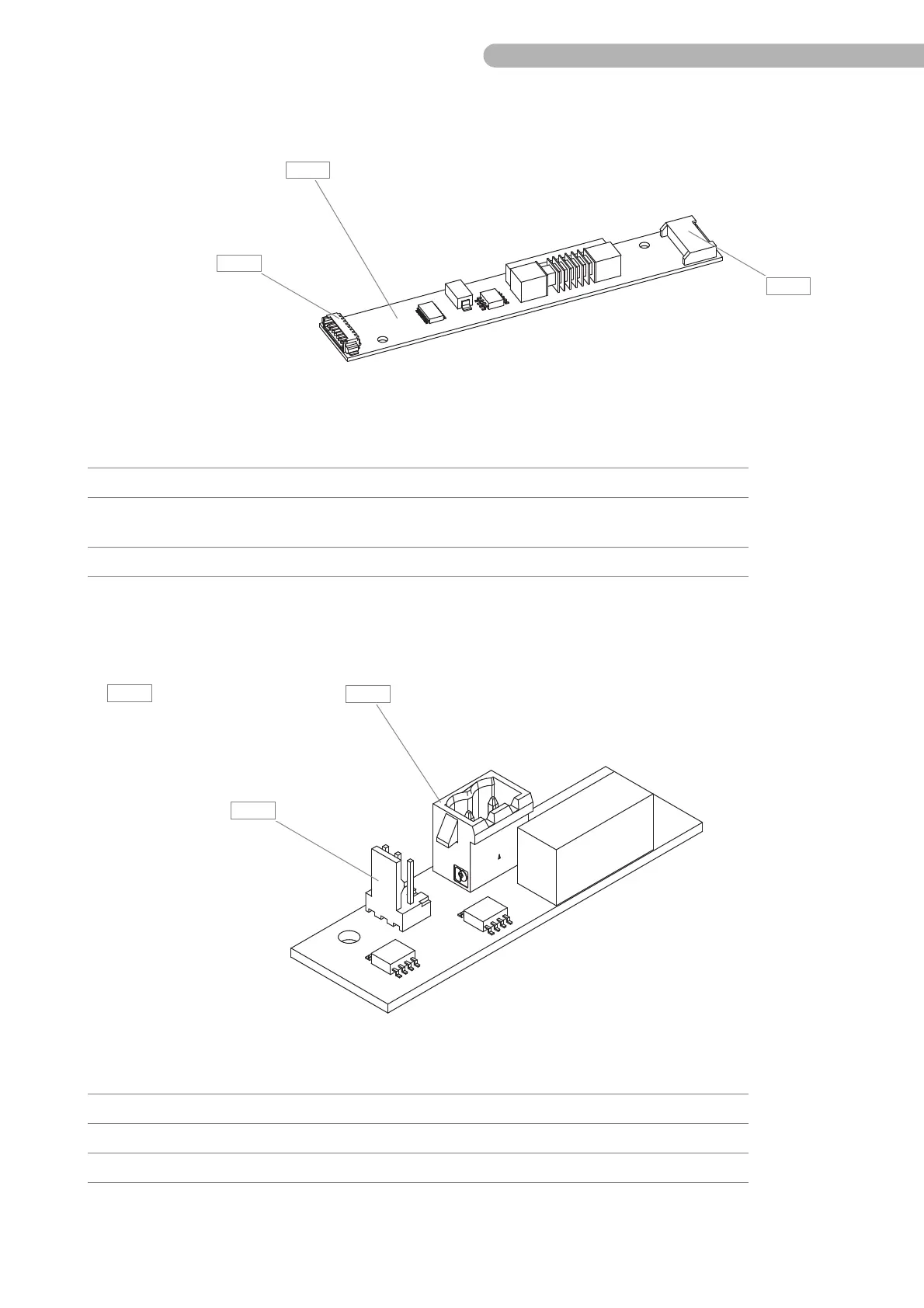

Circuit board inverter
Fig. 6: Circuit board inverter
Circuit board fan control
Fig. 7: Circuit board fan control
A 8
A 31
A 32
Item Name Number Part Number
A 8 Circuit board inverter LXM1617-05-6x 93-146-026
A31 Socket for connection circuit board
computer board A 18
CON INV
A32 Socket connection LCD Inverter
A 34
A 33
A 7
Item Name Number Part Number
A 7 Circuit board Fan control HDM 0503 90-105-850
A33 Socket connection fan CON 2
A34 Socket connection computer board A 5 CON 1
