CP5 • Replacing components
CP_SEM_60-00-60.001 51
6.2.2 Replace drive unit components
Motor control board (ZPR 0801)
It is only necessary to dismantle the motor control board if relevant error messages are displayed.

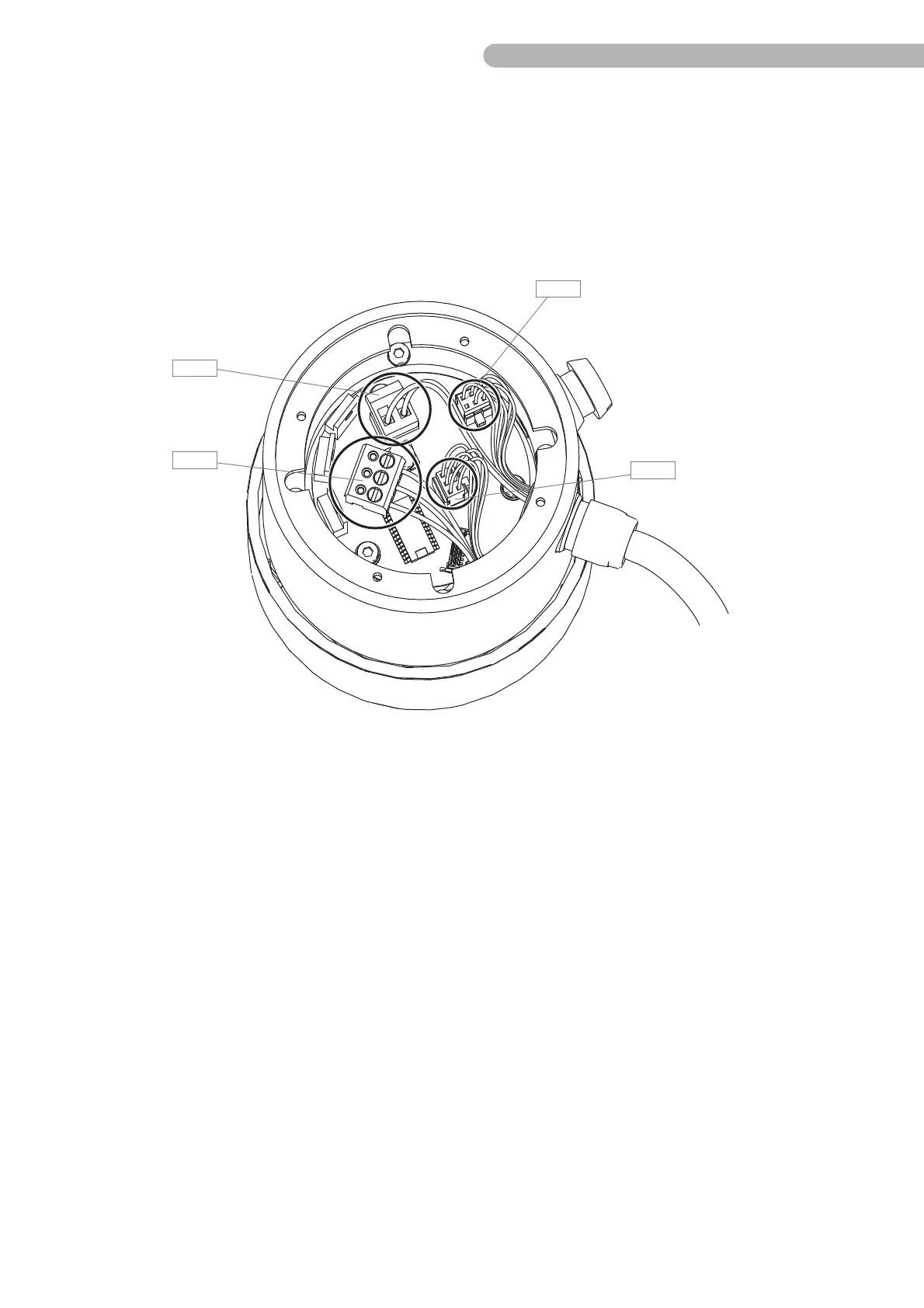

Fig. 25: Dismantling the board (1)
Detach the following connectors.
B 12 Current supply connector (PWR)
B 11 Pump control panel connection (PANEL)
B 10 Hall sensor connection (HALL)
B 13 Motor connection (MOTOR)
B 11
B 12
B 13
B 12
