CP5 • System description
24 CP_SEM_60-00-60.001
3.2.2 Assembly overview – drive unit

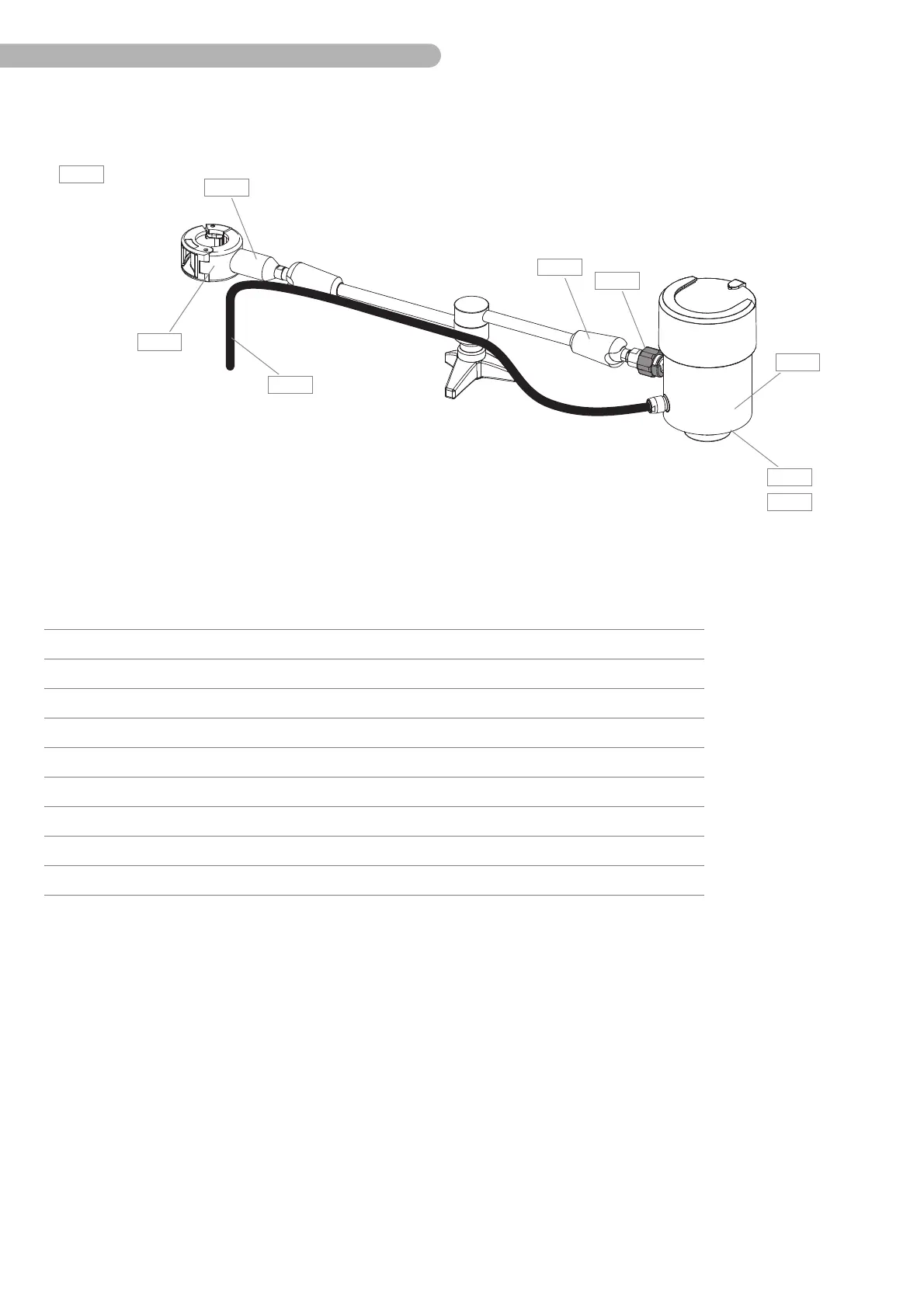

Fig. 8: Assembly overview – drive unit
B 2
B 3
B 4
B 5
B 6
B 8
B
B 1
B 7
Item Name Number Part Number
B Drive unit
B1Connection cable pump control panel 97-102-612
B2 Housing 60-01-19
B3 Base plate 60-01-21
B4 Splash protection 60-01-26
B5 Disconnect coupling 60-01-30
B6 Adjustable arm 73-200-506
B7 Adapter (50 mm) 43-42-85
B8 Fast clamp connector 43-42-60
