LivaNova CP5 - Circuit board motor control (ZPR 0801)

CP5 • System description
CP_SEM_60-00-60.001 25
Circuit board motor control (ZPR 0801)

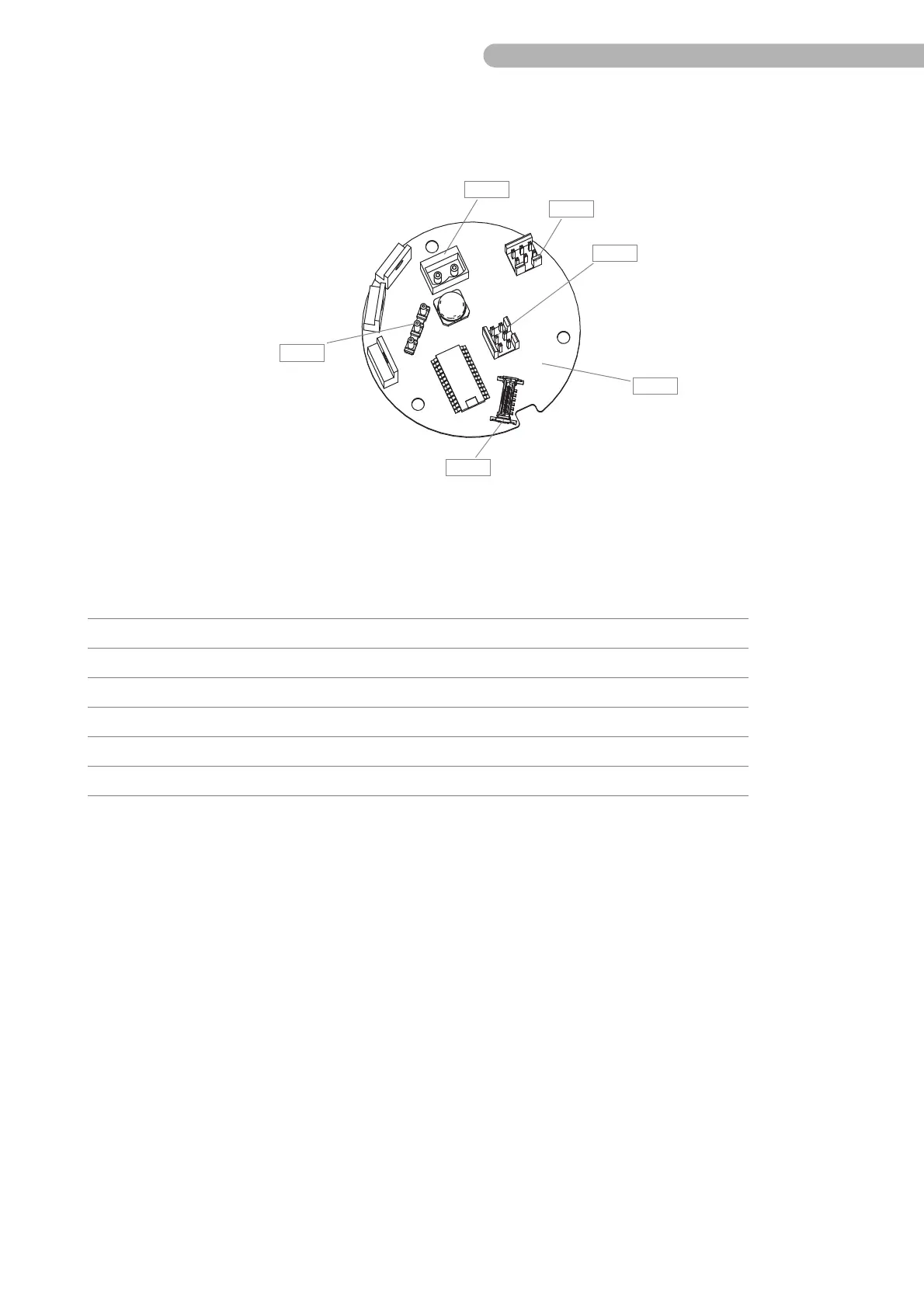

Fig. 9: Circuit board motor control
B 14
B 13
B 12
B 11
B 10
B 9
Item Name Number Part Number
B9 Circuit board Motor control ZPR 0801 90-305-990
B10 Hall sensor connection (actual value) HALL
B11 Pump control panel connection PANEL
B12 Power supply +24V/0V connection PWR
B13 Motor connection MOTOR
B14 Flash connection FLASH
