CP5 • Appendix
70 CP_SEM_60-00-60.001
7.7 Wiring diagrams

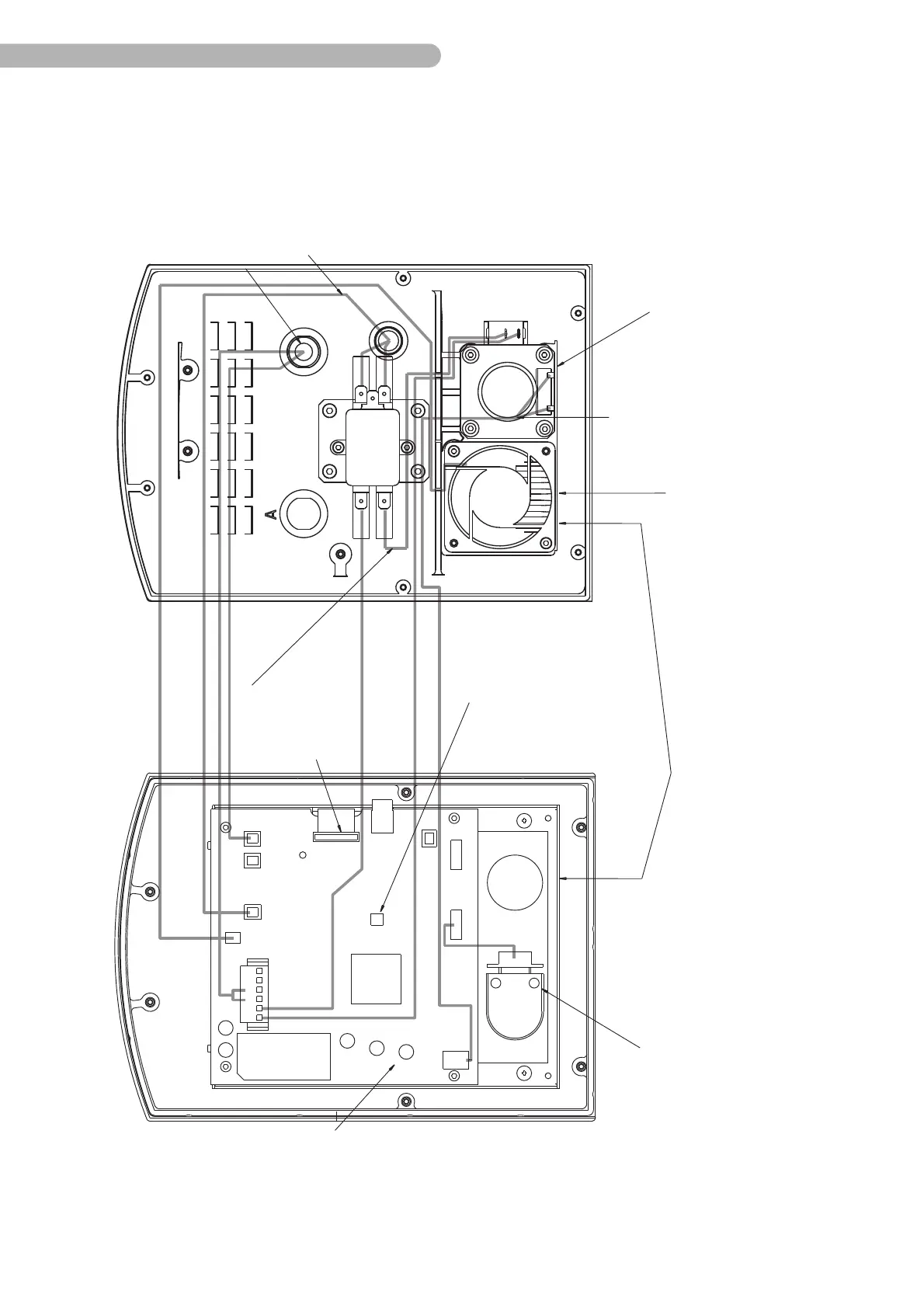

Fig. 34: Wiring pump control panel
Connection cable 97-102-628
System socket side 97-103-663
(für 28-95-85)
ArtNr: 75-521-516 Datum/Werkstoff
Fan 96-406-030
Speaker 97-103-669
Fan: - as far away from shaft encoder ribbon cable as possible ! - pay attention to fan grid on housing / cable exit! (suction fan)
Shaft encoder 97-103-608
Ribbon cable (for inverter) 96-231-042
IMPORTANT: Dip switch in ON position!
FFC 96-231-043
Cable set 97-101-935
Connection cable 97-102-628
CONPWRTOP
CONCAN
ws sw rt sw rt sw
75-521-515
Date / Material
CONFAN
CONPB
CONPA
MRP_ON
CONTS
CON3 FLASH
CON_ENC_A
CON_ENC_B
1
CONSPK
Inverter (CON_INV) not shown here (under the computer board)
NP
LOAD
ws
ws
