CP5 • Replacing components
54 CP_SEM_60-00-60.001

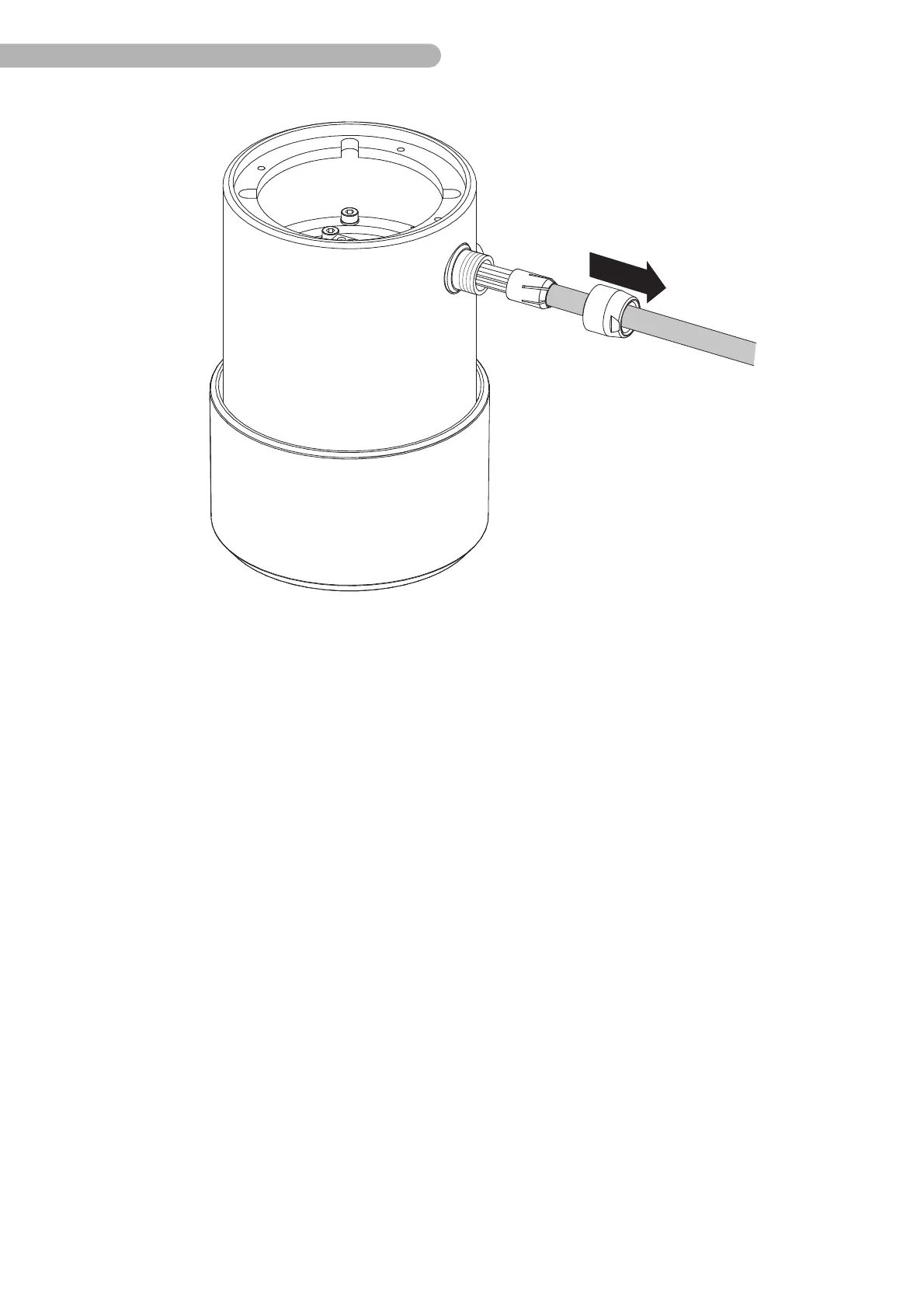

Fig. 28: Dismantling the connecting cable (3)
◗ Open the strain relief clamp on the rear of the casing and pull the cable out.
◗ Remove the two sheaths from the old cable. You will need these to re-attach the new cable.
◗ Fit the new cable in the reverse order.
When inserting the new cable (in the reverse order) ensure that the connections are correctly assigned:
