15
User Manual
• Resolution 480 x 234 pixels
Power consumption
• 630mA max @ 10V
Power supply
• 10 - 35 Volt dc, 7.5 Watt max
Operating Temperature Range
• from 0°C to 55°C (from 32°F to 131°F)
Memory
• Non volatile with battery back-up
Keyboard
• Backlighted, silicon rubber
1.3 BASICS
The chartplotter is controlled by using ten keys. There is also a cursor key to
move a cursor across the screen. As you press a key, a single audio beep confirms the
key action; every time the key pressed is not valid, three rapid beeps sound indicates
that no response is available.

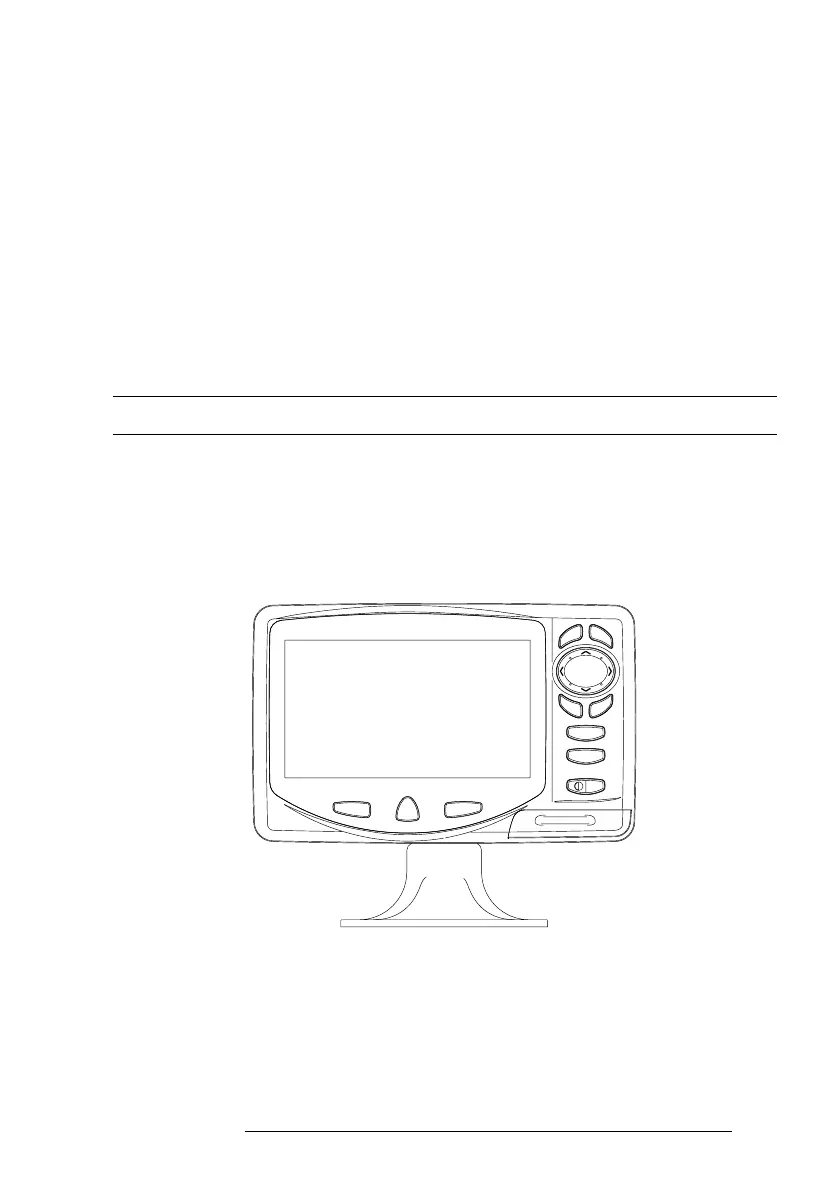

Fig. 1.3 - The chartplotter
