2.5 EXTERNAL CONNECTIONS
2.5.1 GPS CONNECTION O NLY F OR PANORAMIC 8 S UN
Connect the GPS to the Port 3: see the picture in Fig. 2.5.1.
Control the input setting following the procedure:
'MENU' + "BASIC SETTINGS" + 'ENTER' + "INPUT/OUTPUT" + 'ENTER' +
"PORT 3 INPUT" + 'ENTER' + "NMEA-4800-N81-N" + 'ENTER'
The GPS can be connected also to the Port 1 and 2, in this case select
NMEA0183-4800-N81-N on the used port.

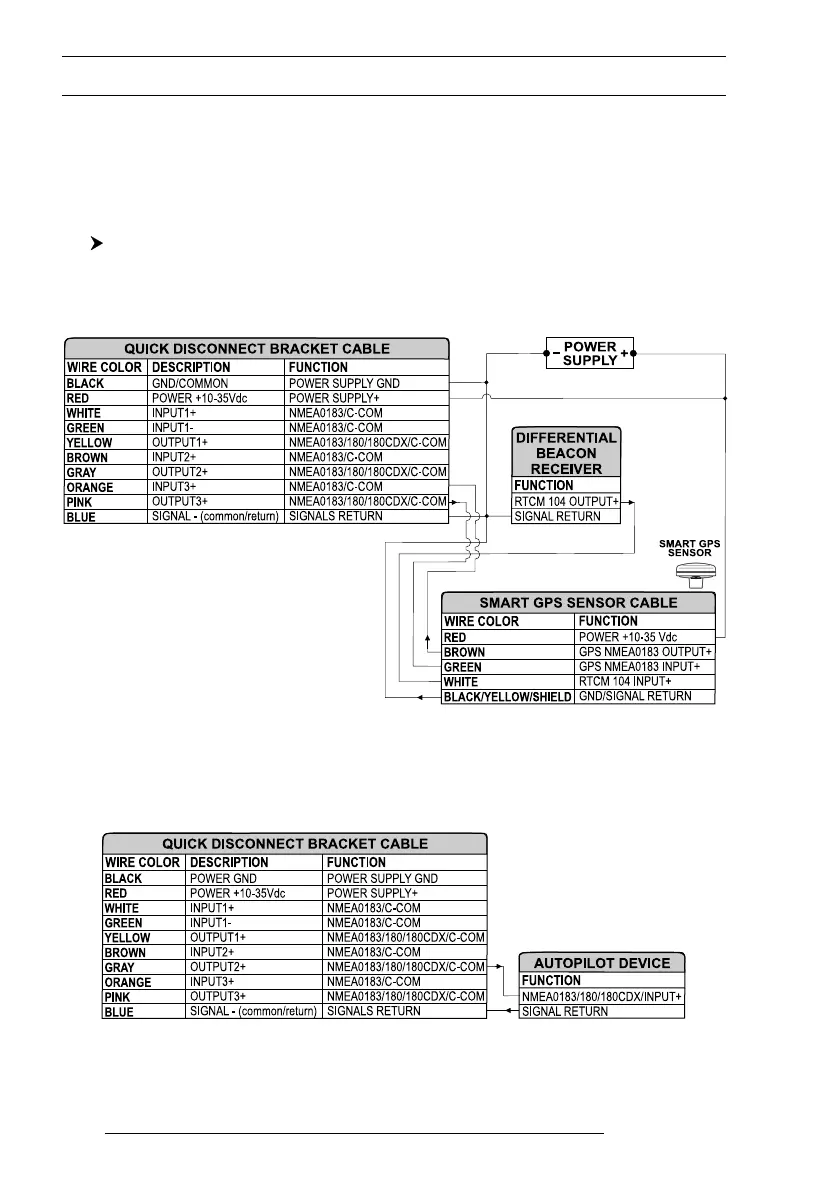

Fig. 2.5.1 - GPS Connection on Port 3
2.5.2 AUTOPILOT CONNECTION
To connect the Autopilot to the Port 2 see the following picture:
Fig. 2.5.2a - Autopilot Connections on Port 2
