6.4 TYPICAL CONNECTIONS

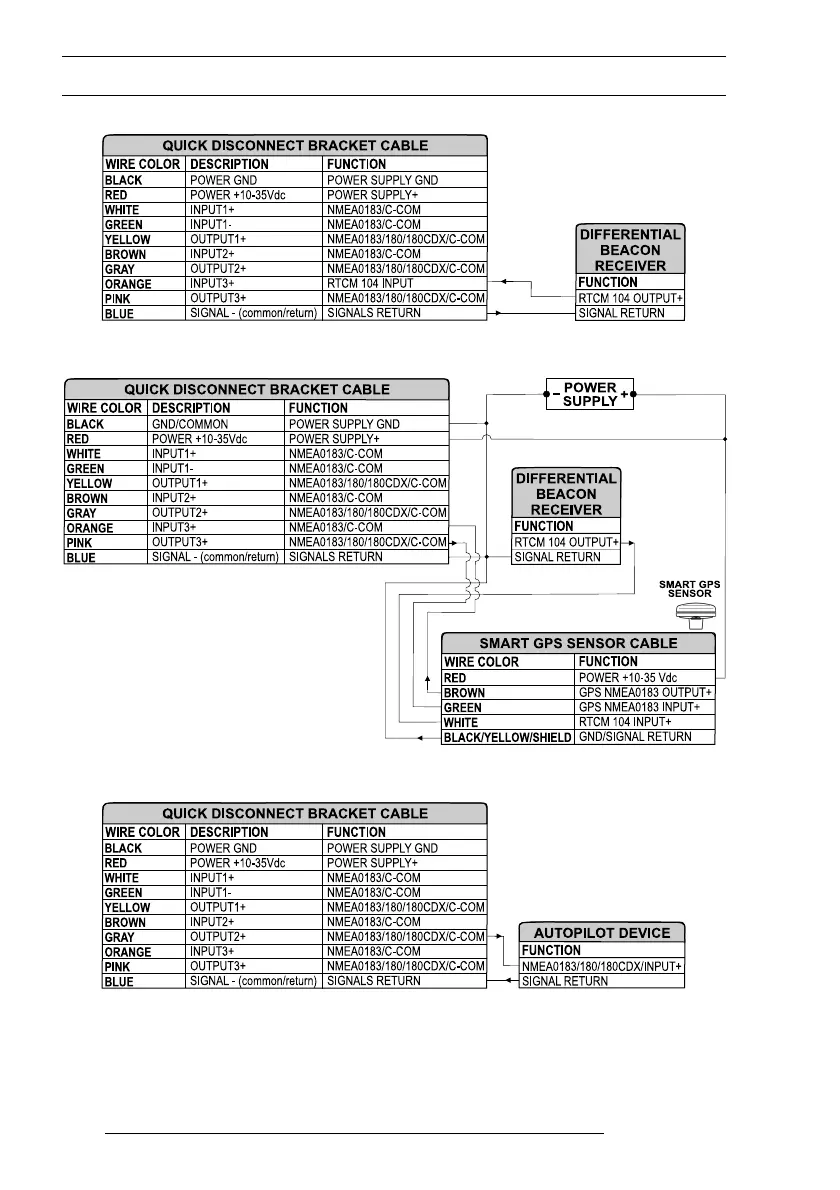

Fig. 6.4 - Beacon Receive Connection for COMPACT 8 Sun
Fig. 6.4a - GPS Connection on Port 3 for PANORAMIC 8 Sun
Fig. 6.4b - Autopilot Connection on Port 2
