4 -15

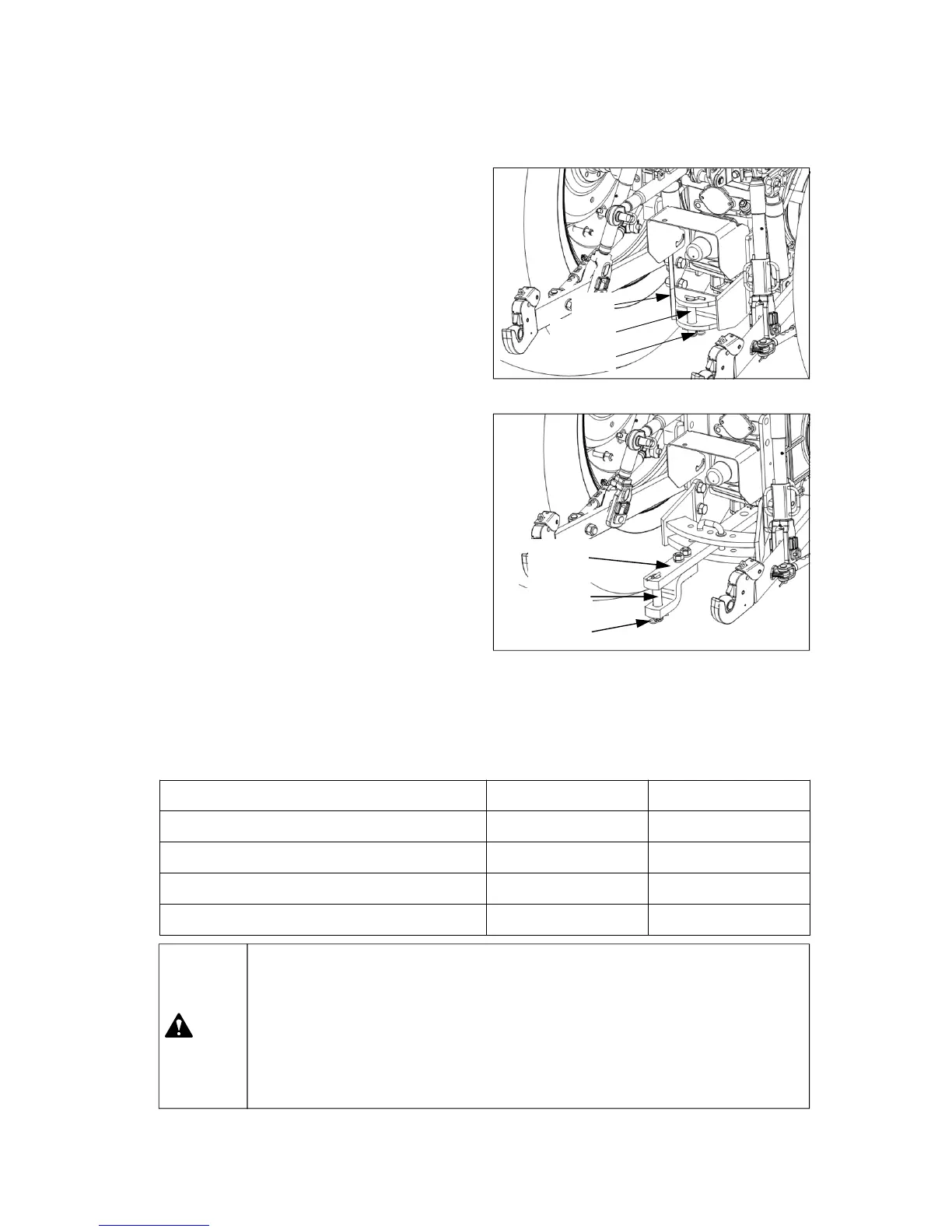

(3) Hitch and Drawbar (optional)
z It is used to tow the trailer or other rear towed
equipments.
z Remove snap pin and hitch pin first, and align
the hitch pin holes between tractor and trailer.
z Insert the hitch pin and snap pin correctly after
attaching/detaching equipment.
z DO NOT exceed the maximum permissible
vertical and horizontal load as below.
① Hitch
z Vertical load : 1500 kg (3307lb)
Horizontal load : 6 000 kg (13228lb)
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulations.
Caution
③Technically permissible towable mass(es)
Hitch Drawbar w/clevis
Unbraked towable mass 3 ton (6614 lb) 3 ton (6614 lb)
Independently braked towable mass 6 ton (13228 lb) 6 ton (13228 lb)
Inertia-braked towable mass 6 ton (13228 lb) 6 ton (13228 lb)
Hydraulic or pneumatic braked towable mass N/A N/A
② Drawbar w/clevis
z It is only used to tow the 2-axle equipment.
z It is available to adjust the position of the draw
bar after removing lock-pin in the right figure.
After adjusting, assemble the pins firmly.
z Type & EC component type-approval mark :
XP-DBT : TBD
Vertical load : 650 kg (1433lb)
Horizontal load : 6000 kg (13228lb)
Snap pin
Drawbar
w/clevis
Hitch pin
Hitch pin
Hitch
Snap pin
