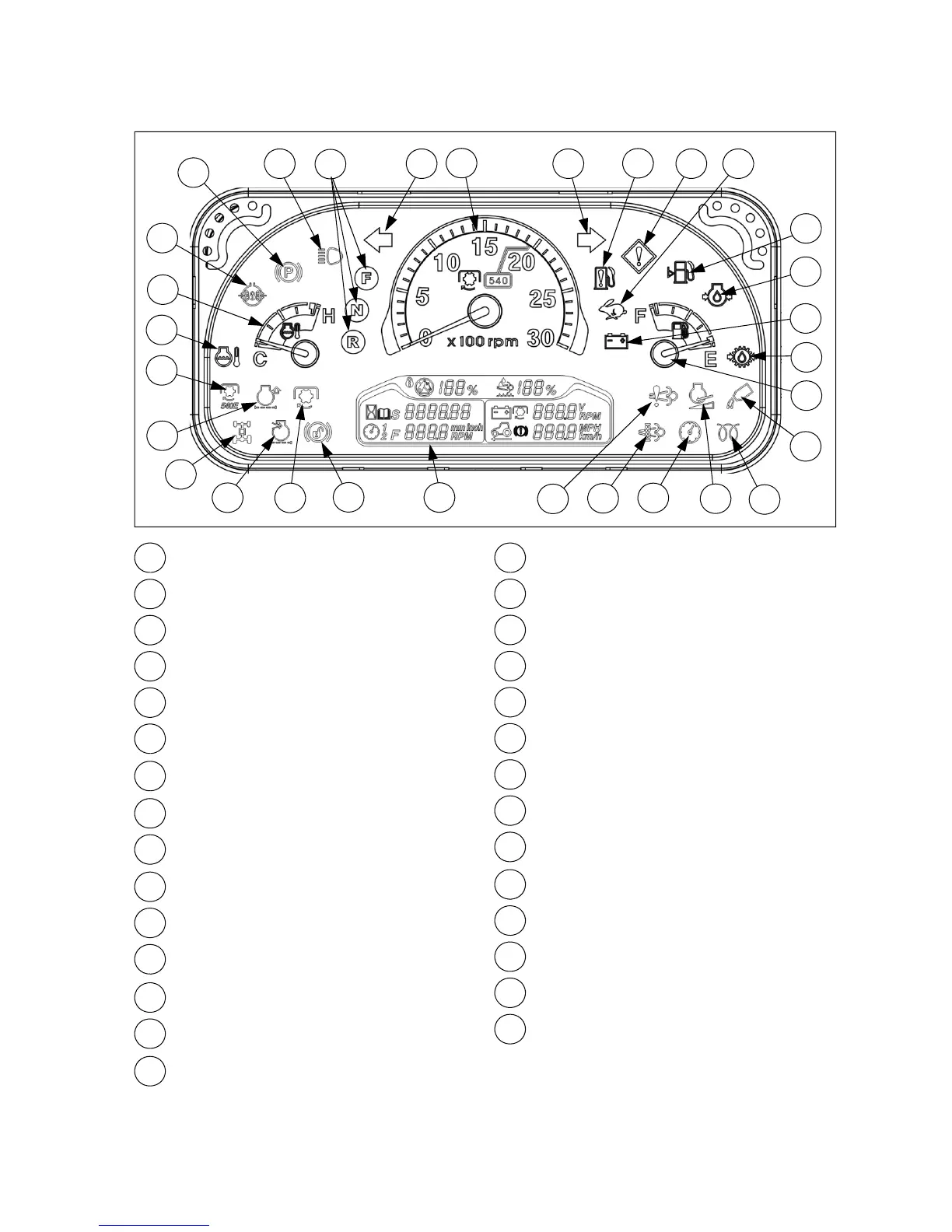

(1) Instrument panel
1
Tachometer
2
Turn signal indicator (LH/RH)
3
Forward/Neutral/Reverse indicator(optional)
4
High beam indicator
5
Parking brake indicator
6
Differential lock indicator
7
Engine coolant temperature gauge
8
Coolant over-heat warning indicator
9
540E PTO operation indicator
10
Engine idle rpm increase indicator
11
PTO operation indicator
12
4WD indicator
13
Air cleaner service indicator
14
Brake pedals not latched indicator (optional)
15
LCD display panel
16
ATS malfunction indicator
17
Engine torque reduction indicator
18
DEF level warning indicator
19
SCR filter HC level warning indicator
20
Engine Speed Cruise control indicator
21
Cold start aid indicator
22
Fuel level gauge
23
Hydraulic oil filter pressure indicator
24
Battery charging indicator
2
5
6
7
8
12
10
13
11
14
15
19
17
18
22
23
25
26
27
29
1
3
4
20
16
21
28
24
9
2
25
Engine oil pressure indicator
26
Low fuel level indicator
27
High speed indicator (optional)
28
Vehicle control error warning indicator
29
Fuel filter warning indicator
