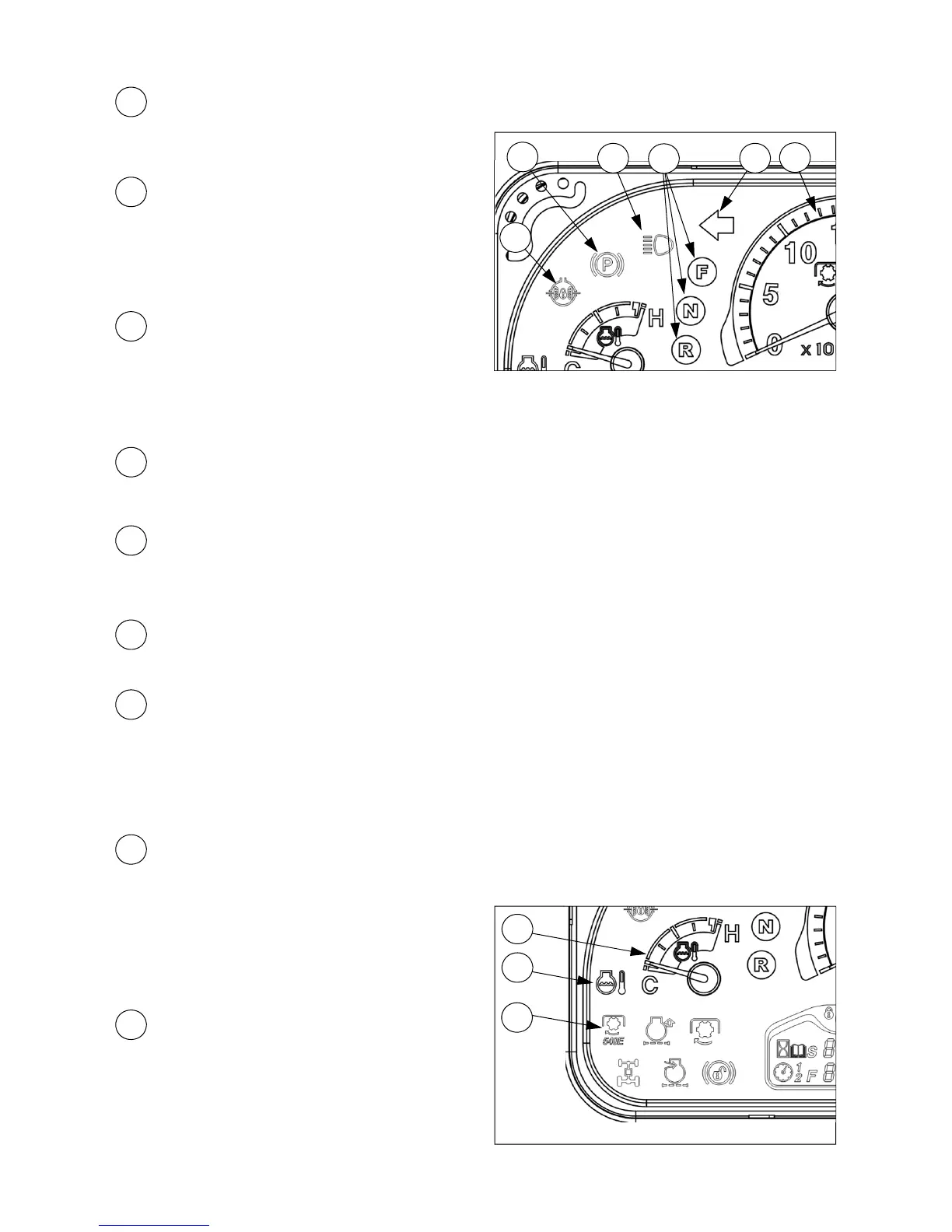

Tachometer
z The tachometer shows the engine revolutions
per minute (“10” means 1000rpm).
2
Turn signal indicator (Left / Right)
z When turning the turn signal light switch to the
left/right direction, the front and rear turn signal
lights are blinked. At this time, this indicator shall
blink simultaneously.
z These indicators shall be ON/OFF when
operating power shuttle lever to FORWARD /
NEUTRAL / REVERSE in power shuttle
transmission.
3
Forward/Neutral/Reverse indicator(optional)
4
High beam indicator
z When turning on high beam of the headlamp, this indicator shall be ON simultaneously.
5
Parking brake indicator
z This indicator shall be ON when applying the parking brake. If shifting F/R shuttle lever forward or
reverse when the parking brake is engaged, this indicator shall blink with alarming buzzer.
6
Differential lock indicator
z This indicator shall be ON when operating the differential lock switch.
7
Engine coolant temperature gauge
z This gauge shows the engine coolant temperature level. The closer the needle approaches “H”, the
higher the temperature of engine coolant is.
z The coolant is very hot. When checking the coolant, comply with instructions of the section 5
“Maintenance and Lubrication” in this manual.
8
Coolant over-heat warning indicator
9
540E PTO operation indicator
2
5
6
1
4
3
8
9
7
z If the engine coolant temperature goes over the
critical level, this indicator shall be on. Stop the
engine and cool down the engine.
z If not cleared, contact your authorized local
dealer for check.
z When PTO gear lever is 750/540E rpm, and
PTO switch and 540E PTO switch is “ON”, this
indicator shall be ON, and the engine maximum
speed shall be restricted in this mode.
