3 -39
Locking lever
(safety device)
Joystick lever
Lock

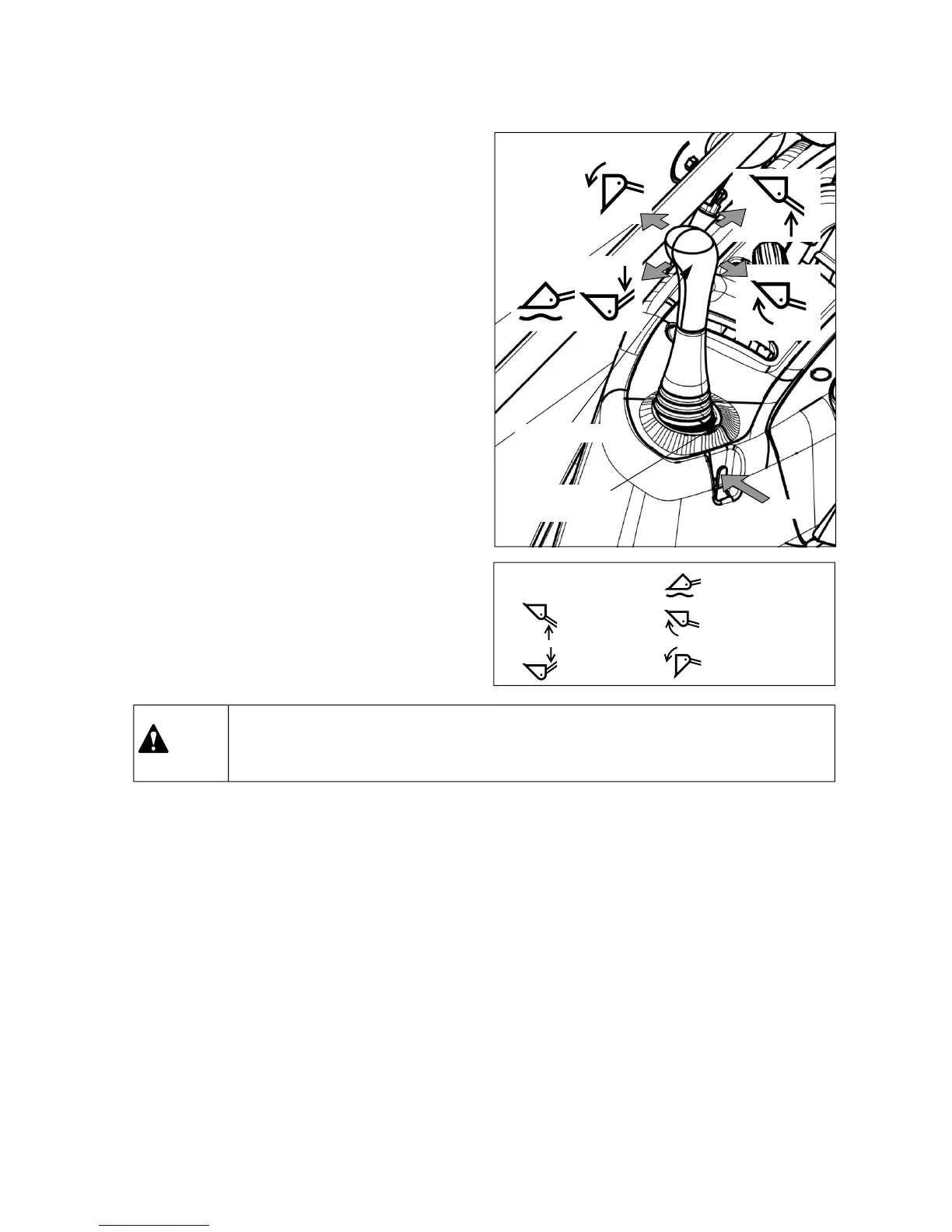

(5) Joystick lever (optional)
z Remote joystick lever helps to operate front
loader comfortably.
z Joystick can be operated at 4 directions as
shown in the right figure.
z If you move joystick diagonally, loader and
bucket shall be operated at the same time. Then,
small loads move first.
z When you want to float bucket, lower the loader
and push forward the lever at floating position.
z After finishing work, pull the lever and place it in
neutral position.
Loader up
Loader down
Bucket up
Bucket dump
Bucket floating
<Meaning of symbols>
z Locking lever shown in the right figure is used to
lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
z For further information, See section 4-4-(8) in
this manual.
▶To prevent accidents, push and lock the locking lever when you do not use joystick
lever.
Warning
