3 -38

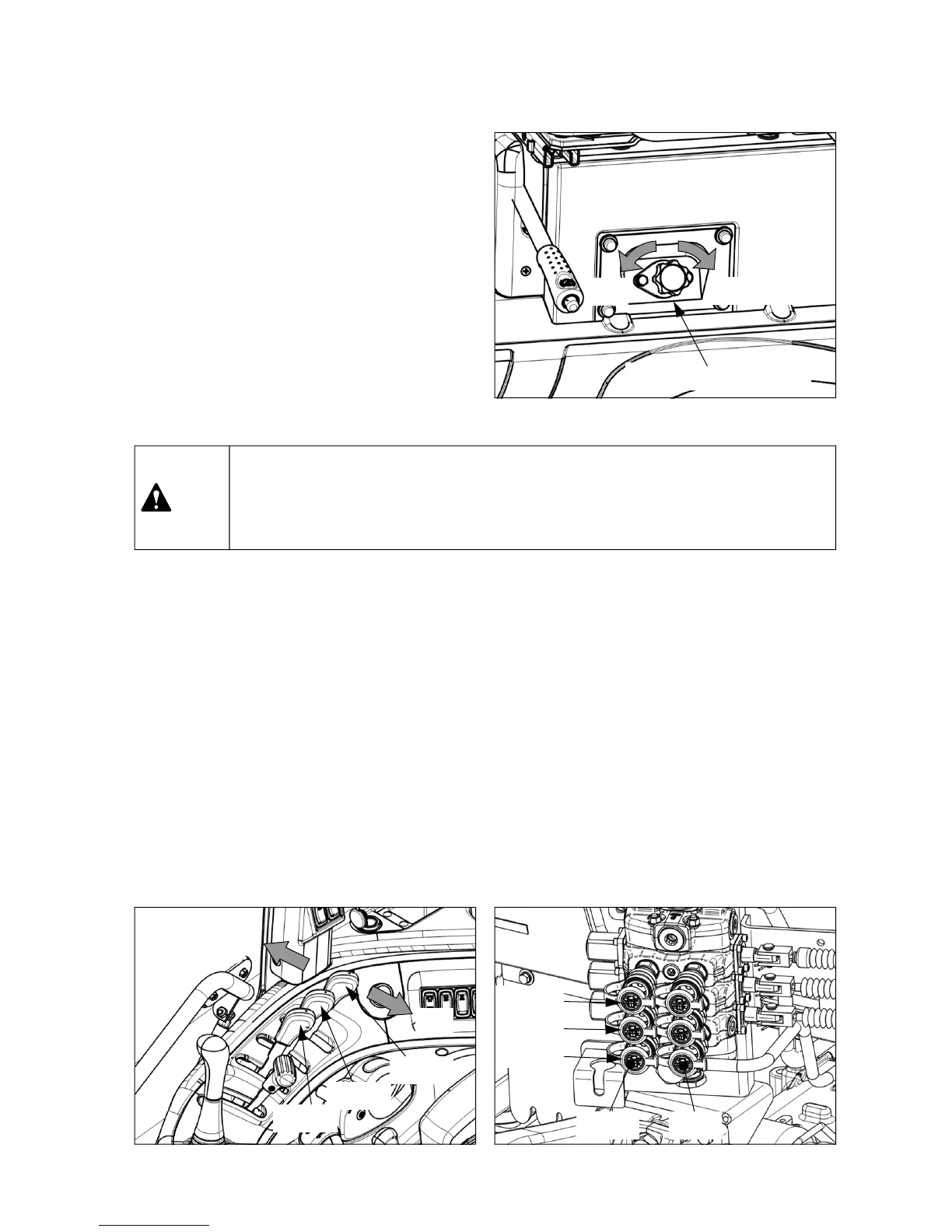

(4) Remote control lever and Quick coupler (optional)
z These levers are used to operate the hydraulic cylinder and/or motor of the implement attached to
the tractor.
z If you push the remote control lever forward, the hydraulic pressure works to the lower coupler, and
the upper coupler shall be connected to the drain.
z Lever ①,② and ③ (optional) can be operated respectively, and when operating the levers at the
same time, the one received less pressure begins to start first.
z According to the valve type, the remote control lever has different operation type.
- Spring return type, Detent type and Detent with auto release type.
z After connecting, and preliminary operating the hydraulic equipment, check again transmission oil
level of the tractor.
Push
Pull
Lever①
Lever②
Lever③
Lever ②
Lever ①
Lever ③
Pushed Pulled
z Turn the knob to the clockwise to lower the
implement slowly and to the counter-clockwise
to rise speed faster. If turning clockwise fully, the
implement is fixed and even if lowering down the
position control lever, the implement does not let
down.
- Tiller : Slow in down speed
- Plough : Fast in down speed
z Do not over tighten control knob. It may cause
damage to the control valve.
z When working in hard ground, slow down the
down speed to avoid the bounding of the
implements.
Down speed control knob
Slow & Lock
Fast
④ Down speed control knob (MHL)
▶When driving on the road, replacing tiller blades or removing grass around the tiller
blades, turn the down-speed control knob clockwise slightly to lock.
▶The knob may turn about two revolutions. Do not over-tighten the knob.
Warning
