3 -41

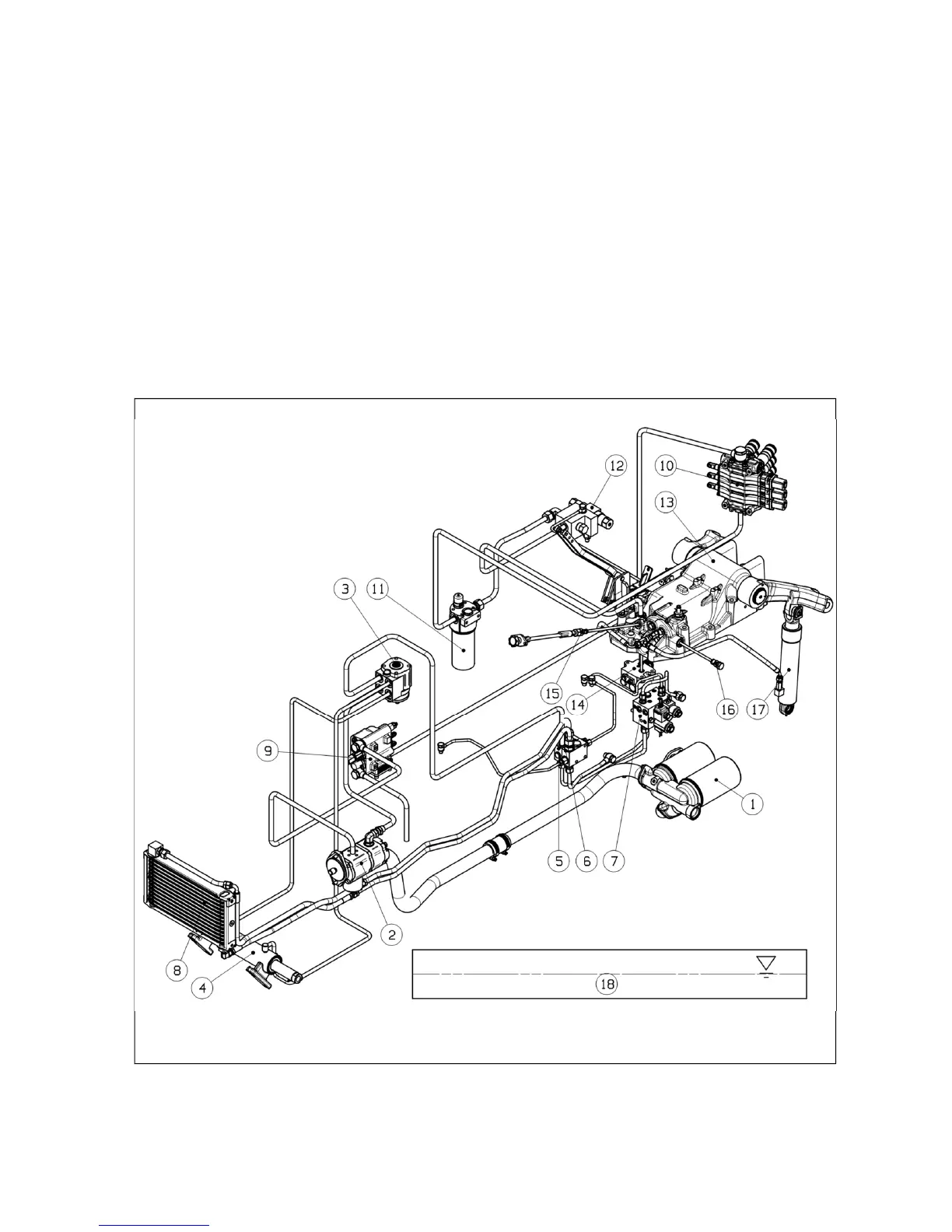

(7) Hydraulic System Diagram
1. Hydraulic oil filter
2. Hydraulic pump
3. Steering unit
4. Steering cylinder
5. Sequence valve
6. Oil cooler valve
7. T/M control valve
8. Oil cooler
9. Front loader valve
(Opt. : Front outlet valve)
10. Remote control valve
11. In-line filter (if fitted)
12. Leveling control valve
13. Hydraulic lift housing
14. Hydraulic lift valve(MHL)
15. Down speed control valve
16. Safety valve
17. Hydraulic lift cylinder
18. Oil tank (Transmission case)
① MEC+MHL
To Next Page
