(10) Differential lock switch
z This is effective for working on slippery ground.
If the tractor cannot go forward as one side rear
wheel is slipping, depress the clutch pedal and
press the upper side of the differential lock
switch.
z If engaged, both rear wheels will rotate at a
same speed and make it possible to move. But,
it disturbs steering operation. After escaping
from slippery ground, release the differential
lock.
z Push the lower side of the switch or press down
the brake pedals once to release the differential
lock. If the traction of rear wheels is equalized,
the lock is released automatically.
z If the differential lock does not released, i.e.
when turning to the right or left, the turning
radius is larger than normal operation, depress
the clutch pedal once and press one-side brake
pedal slightly for a second, and then the other.
▶Do not turn the tractor while the differential lock is engaged.
▶Do not use the differential lock while driving on the road.
▶Stop or slow the tractor before engaging the differential lock.
Warning

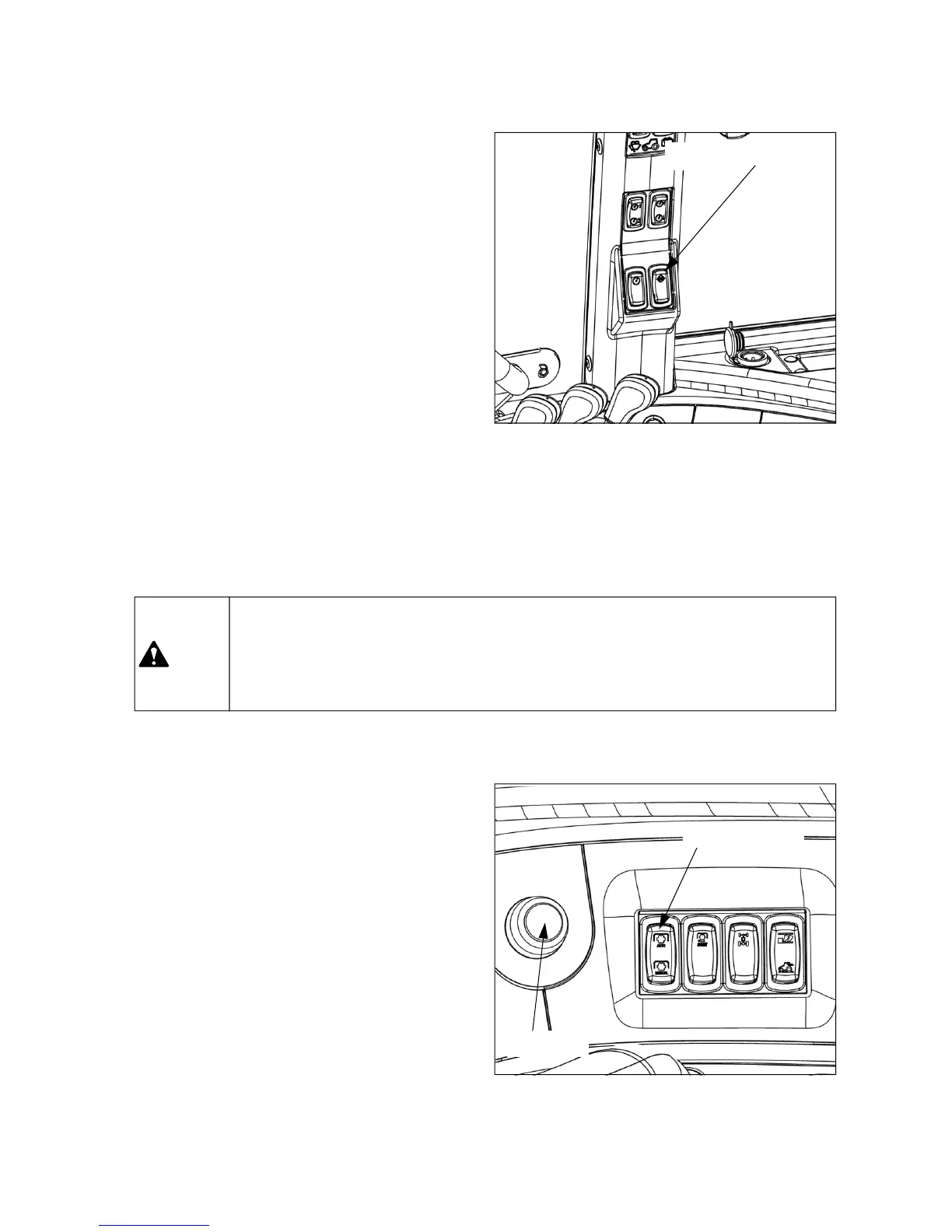

Differential lock switch
z It is used to select “AUTO” or “'MANUAL” mode
of PTO operation
z When the PTO mode switch is placed on
- AUTO : if pressing clutch pedal or lifting up
position control lever over the specified position,
the PTO shall be stopped.
- MANUAL : The PTO shaft shall rotate always
regardless of the clutch pedal or position control
lever.
(11) PTO mode switch (if fitted)
PTO switch
PTO mode switch
