3 -18

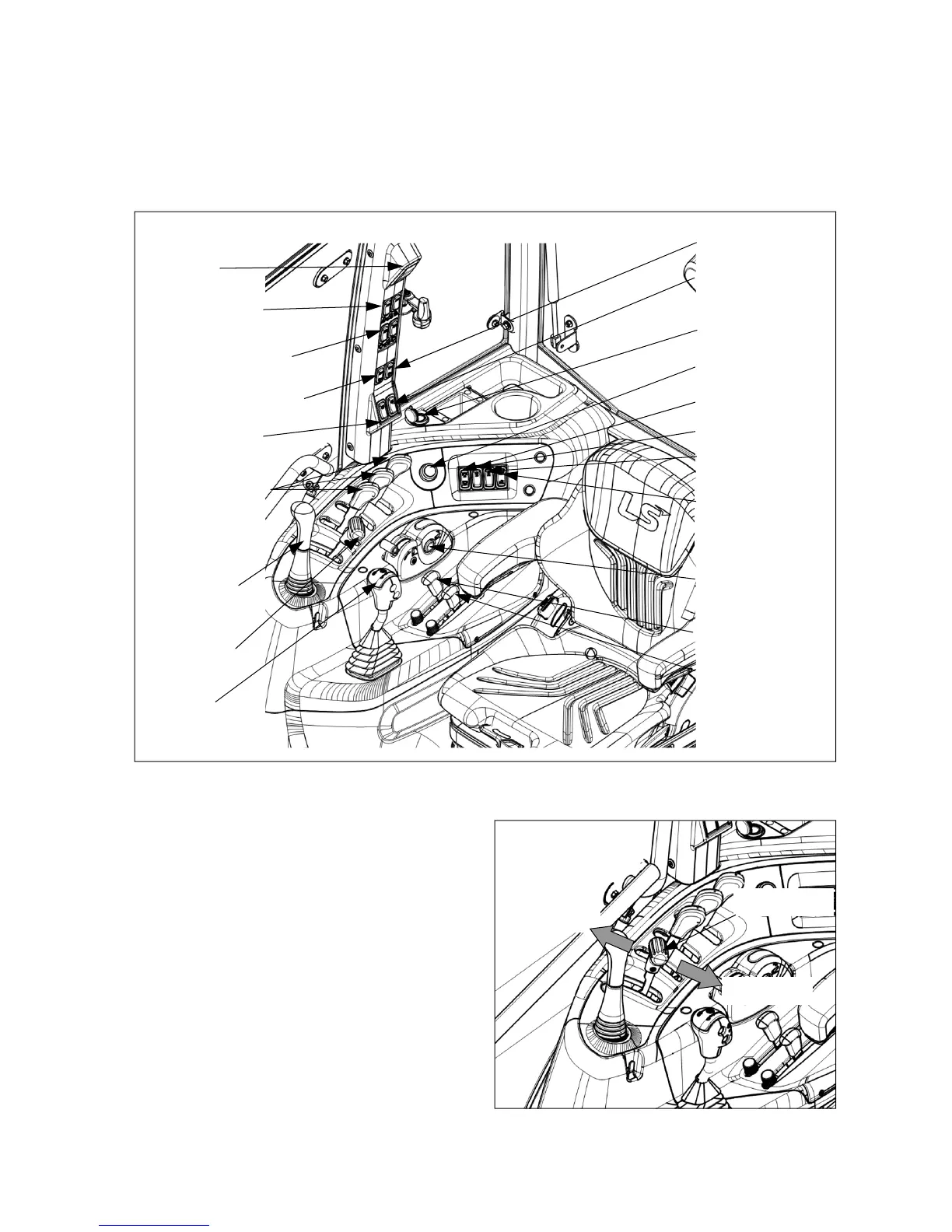

3-2. Right-hand console and Cabin pillar
Important to owner, read carefully
Indoor light
Work light switch
(Cabin only)
Window wiper switch
(Cabin only)
Electrical power
outlet socket
Joystick lever
(Section 3-5)
Remote control
lever (Section 3-5)
Throttle lever
Main gear
shift lever
4WD switch
Work/drive mode
select switch
(PSS)
Auto lift control
(Section 3-5)
Position control
lever (Section 3-5)
Draft control lever
(Section 3-5)
PTO switch
PTO mode switch
540E PTO switch
Differential lock
Switch
ECS speed up/
down switch
ECS mode select switch
ECS main switch
- Mechanical Hydraulic Lift (MHL)
(1) Throttle lever
z It is used to control the engine speed in field
operation. DO NOT use while driving on public
road. Use the throttle pedal at this time.
- Low speed : Pull the lever backward
- High speed : Push it forward.
z There is a sensitive electric sensor on the
throttle lever. Do not remove/modify it arbitrarily.
z If starting engine when this lever is not in low
idle position, the engine speed shall be set to
low idle position automatically.
z This lever must be placed on low idle position
before operating. If not, the engine speed is not
controlled.
Throttle lever
Low speed
High speed
