3 -14

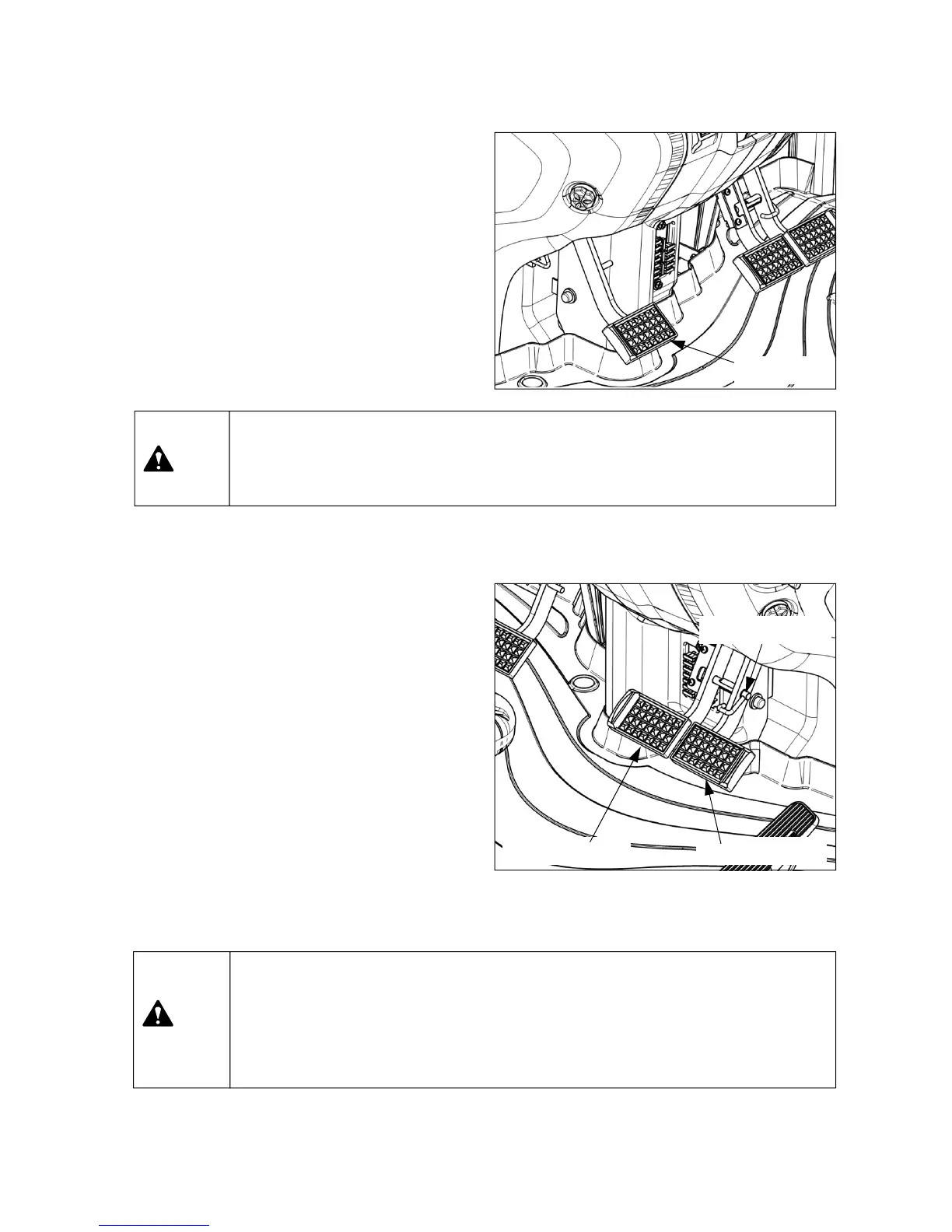

(5) Brake pedals
z When stopping the tractor, press both brake
pedals together with depressing clutch pedal.
z If the brake pedals are not locked with pedal
latch, left or right brake pedal can be operated
independently. This one-brake pedal operation is
useful to reduce the turning radius in field ground.
z DO NOT press the one-brake pedal while the
differential lock is engaged. It may cause
damage or failure of the rear axle.
z When brake pedals are pressed, 4WD will be
engaged automatically to brake the front wheels.
z When pressing brake pedals with pressing the
throttle pedal first, the engine speed shall be
changed to low idle.
Caution
▶Must lock the brake pedals with the pedal latch while driving.
- If pressing the one-brake pedal while driving, the tractor may turnover.
▶DO NOT ride your foot on the brake pedals while driving. If not, it may cause
damage or failure of the brake.
Brake pedal latch
Brake pedal (RH)
Brake pedal (LH)
▶DO NOT ride your foot on the clutch pedal while driving the tractor.
▶As the start safety switch is installed for the operator’s safety, depress the clutch
pedal fully to start engine.
Caution
(4) Clutch pedal (Synchro-shuttle)
z This is used to engage or disengage the main
transmission clutch for starting engine and
shifting transmission gear.
z Depress the clutch pedal quickly and fully and
release it slowly.
z If the PTO mode switch is placed on “Manual”,
the PTO shaft will NOT stop, if the switch is
placed on “AUTO”, the PTO shaft will be
stopped, when depressing the clutch pedal.
Clutch pedal
