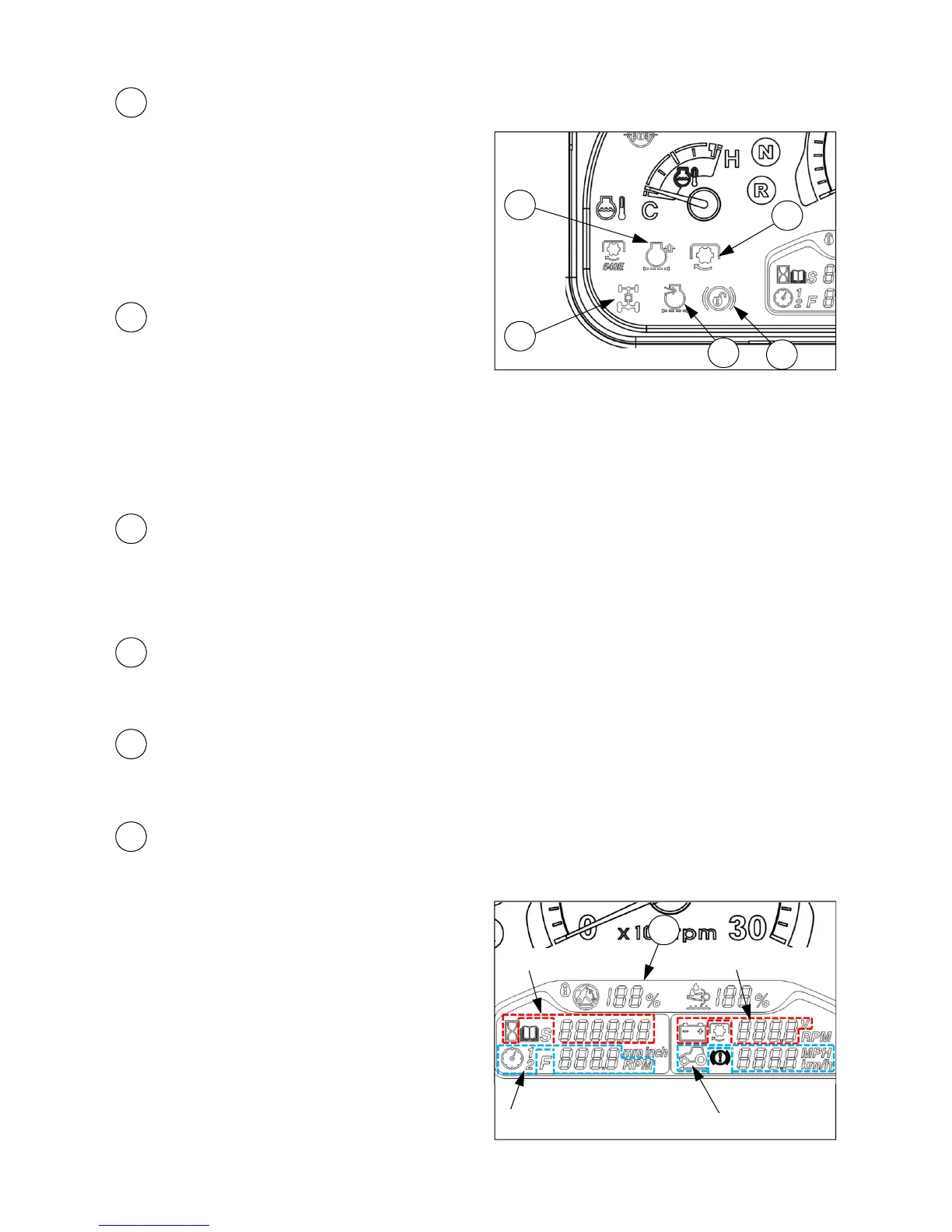

Engine idle rpm increase indicator
11
PTO operation indicator
z When the key switch is “ON” and PTO mode
switch is “MANUAL” and PTO switch is “ON”,
this indicator shall be ON.
z If PTO mode switch is “AUTO”, rear PTO and
this indicator shall be OFF to protect the PTO
drive shaft when clutch pedal is depressed or the
implement is lifted up over the specified limit.
12
4WD indicator
z When pressing 4WD switch to “4WD” position, this indicator shall be ON.
z When pressing brake pedals, 4WD shall be engaged automatically to brake the front wheels, and
this indicator shall be ON.
13
Air cleaner service indicator
14
Brake pedals not latched indicator (optional)
15
LCD display panel
Battery voltage
Hour meter
ⓐ Hour meter and error diagnostic code
z If normal operating condition, this display shows
the operating hour so far. For example, 0019.1
means the tractor has been operated for 19.1hr
(19 hours and 6 minutes).
z If an error(s) is happened on vehicle control, the
related error diagnostic codes are displayed
sequentially.
10
13
14
12
11
15
ESC Code
Speedometer
z If engine speed is needed to be increased for
normal after-treatment process, and parking
brake is applied, the engine low idle shall be
increased automatically and this indicator shall
be turned on.
z If the parking brake is not applied, this indicator
shall be blinked.
z If the air cleaner element is clogged, and the differential pressure is increased, this indicator shall be
ON. After stopping the engine, clean or replace the filter element with a new one.
z When brake pedals are not connected with pedal latch, the LH/RH pedal is can be operated
separately, and this indicator shall be turned. (Korea only)
ⓑ Battery voltage
z Current available battery voltage is displayed.
To Next Page
