② Chassis fuse box - continue
z Capacity and function of each fuse is described
on the cover of the fuse box.

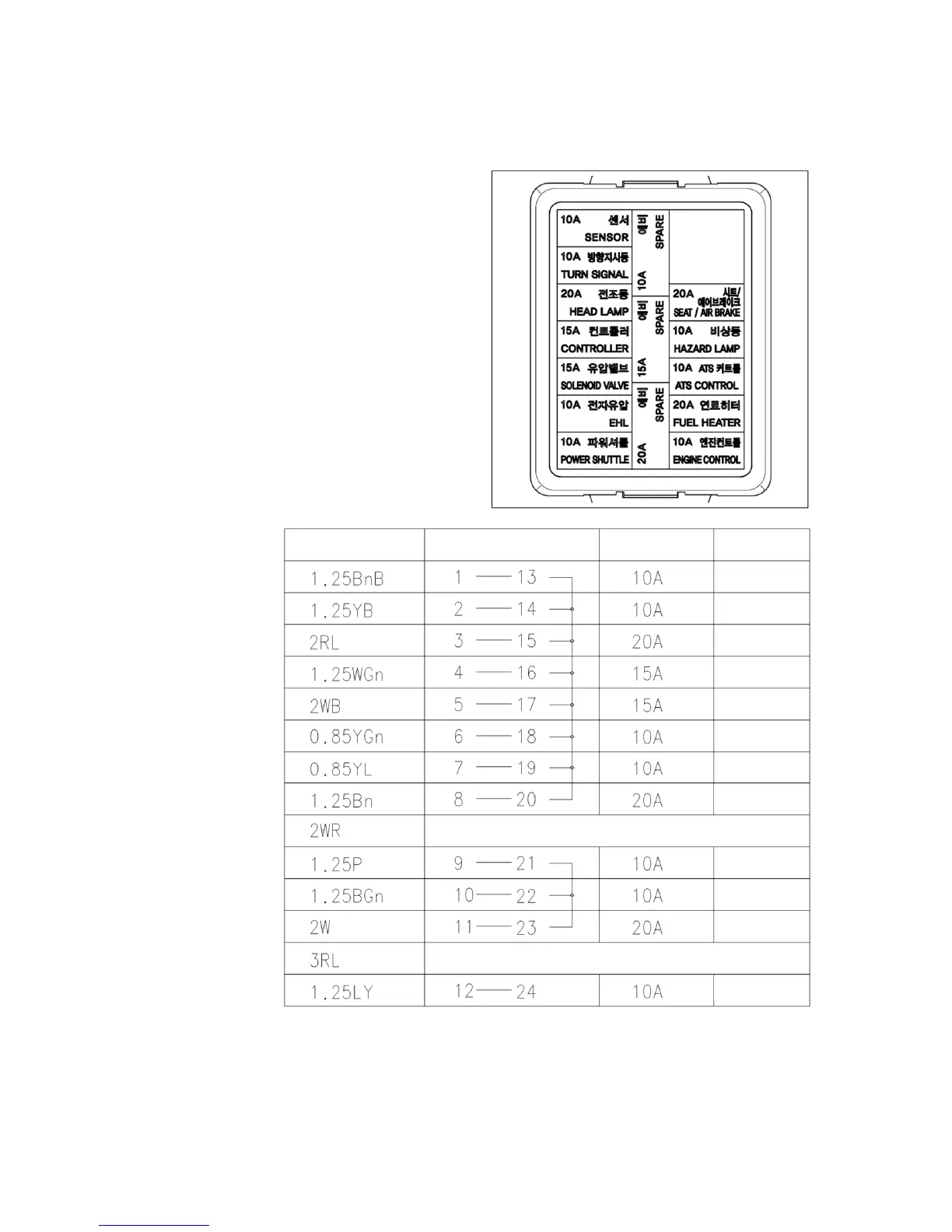

Wiring spec. Connection circuit Fuse spec. Remark
Sensor
Turn signal
Head light
Controller
Solenoid VV
EHL
Power shuttle
Seat/Air brake
Hazard light
ATS control
Fuel heater
Engine control
Main common terminal is connected on 13, 14
ECU common terminal is connected on 21
