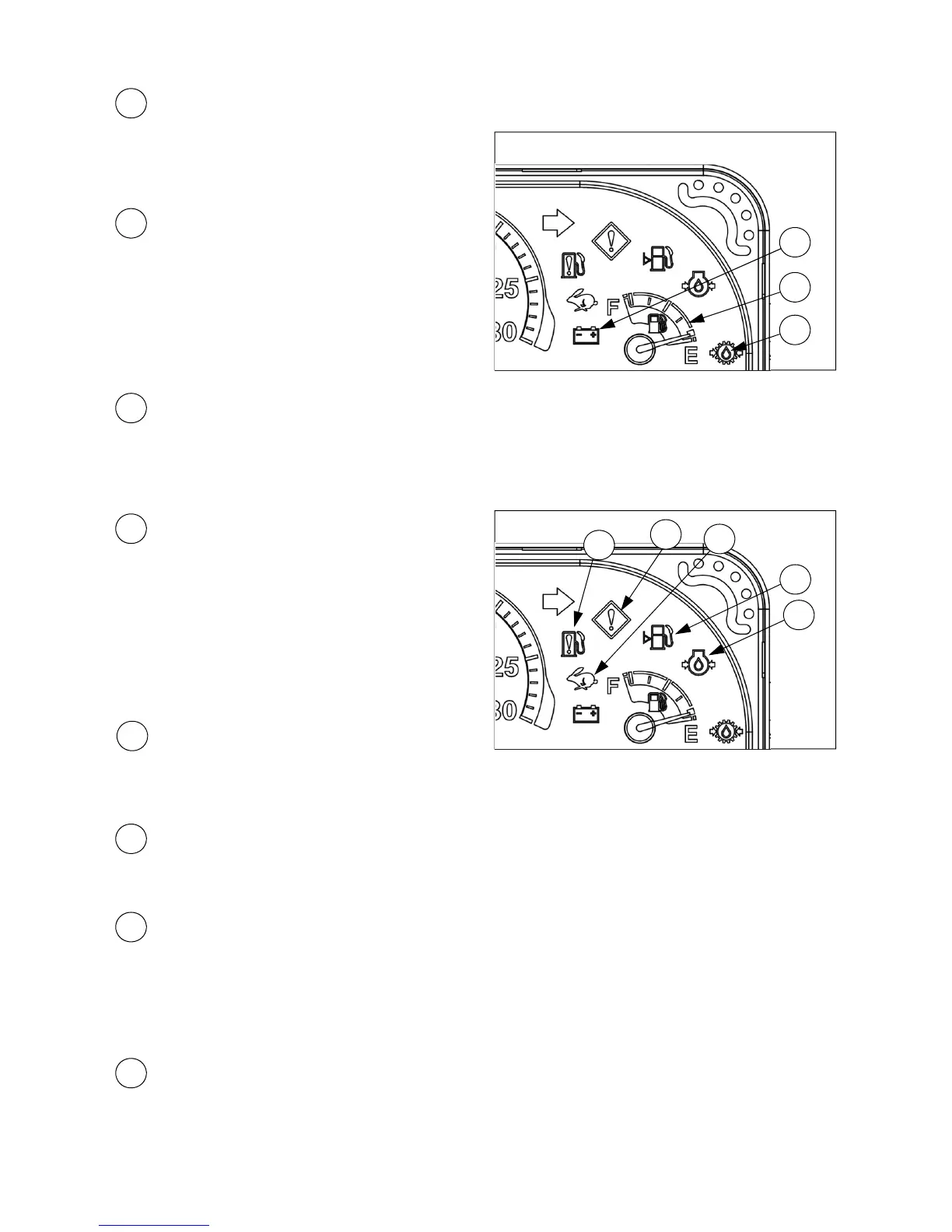

Engine oil pressure indicator
z If this indicator is ON when the key switch is ON
before starting engine, this means normal.
z If the indicator is ON while the engine is running,
stop the engine and check the engine oil level.
If the indicator is ON even if the oil level is
normal, contact your authorized local dealer for
check.
26
Low fuel level warning indicator
z When the fuel in the fuel tank is under minimum level, this indicator shall be ON.
z If this indicator turns on, fill the fuel tank immediately with fuel.
27
High speed indicator (power shuttle model only)
z This indicator shall be ON/OFF in power shuttle transmission with Hi-Lo system when pressing Hi/
Lo buttons. (Refer to 3-4. Power Shuttle System)
28
Vehicle control error warning indicator
29
Fuel filter warning indicator
z When there is a restriction or excess water in the fuel filter, this indicator shall be ON.
z Remove water in the fuel filter. (See section 5 in this manual)
26
27
28
29
25
24
Battery charging indicator
z If this indicator is ON when the key switch is ON before staring engine, this means normal.
z If the indicator is ON while the engine is running, this means there is trouble in charging system. In
this case, contact your authorized local dealer for check.
23
24
23
Hydraulic oil filter pressure indicator
z If the pressure differential of the hydraulic oil
filter is increased over the designated level, this
indicator shall be ON. Replace the oil filter with a
new one.
z It may be turned on in cold winter. Warm up the
transmission oil and recheck the indicator.
22
Fuel level gauge
z This gauge shows the fuel level in the fuel tank.
z If the needle indicates āEā, fill the fuel tank
immediately.
22
z If there is any significant error on vehicle control, this indicator shall be ON. Contact your authorized
local dealer for check.
z This indicator shows detailed information for vehicle control error in combination with other indicators.
For further details, see next page.
To Next Page
