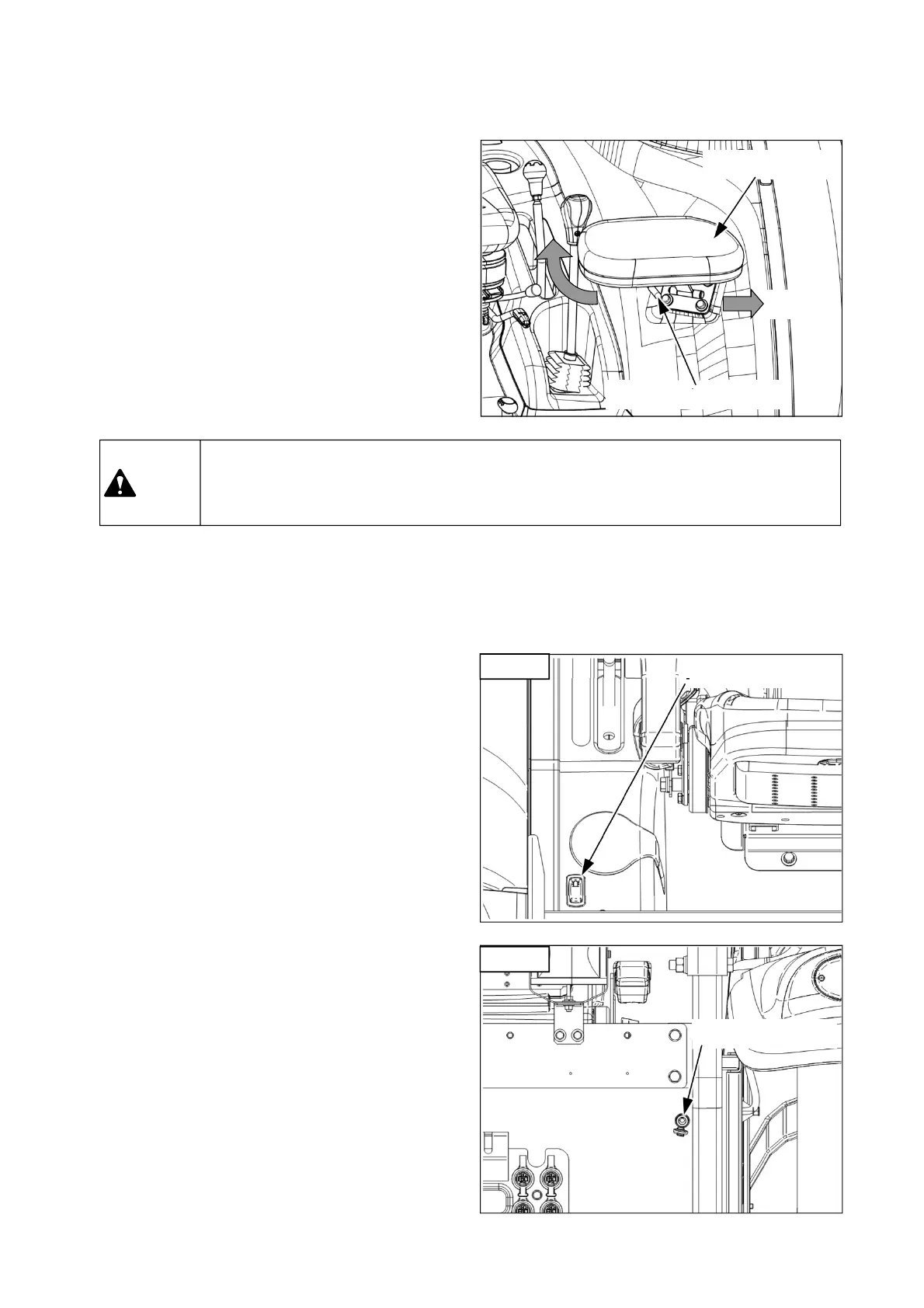

(6) Passenger’s seat (Cabin type,
if fitted)
 When using the seat, just lift the seat to the
locked position.
 When folding the seat, push the passenger’s
seat lever to the outside and fold it down.
Passenger’s seat
Passenger’s seat lever
Release
Warning
▶ This passenger’s seat is an application for training or education about the tractor.
DO NOT ride people on the passenger’s seat while driving on the road.
(7) Beacon lamp switch (Roll-bar
type, if fitted)
 It is used to turn on/off the beacon lamp
connected to the beacon connectors.
 The beacon connectors are installed on the rear
steel plate of the driver’s station for roll-bar
models.
 Press the upper side (symbol part) of the switch
to turn on the beacon lamp.
Beacon lamp switch
Beacon connector
Roll-bar
Roll-bar
