LS tractor XP8084 - Belt Tension Adjustment; Cleaning and Replacing Cabin Air Filters

6 -4
Check point
② Optional type - with Air trailer
brake
 Check if the belt tension is proper, and if
necessary, adjust the belt tension with adjust
bolt.
 Tension : Approx. 10 mm (0.4 in.)
(when pressed by 98N (22 lb))
 Check the damaged part of the belt, and if
necessary, after checking the pulley alignment,
replace it with a new one.
(5) Cleaning and replacing cabin
air filters
 Check, clean and replace the cabin air filters
periodically after referring to the chapter 5 in this
manual.
 See chapter 5-7-(8), “Every 50 hour check”
 See chapter 5-9-(6), “Every 600 hour check”
Compressor
belt
Adjust
bolt

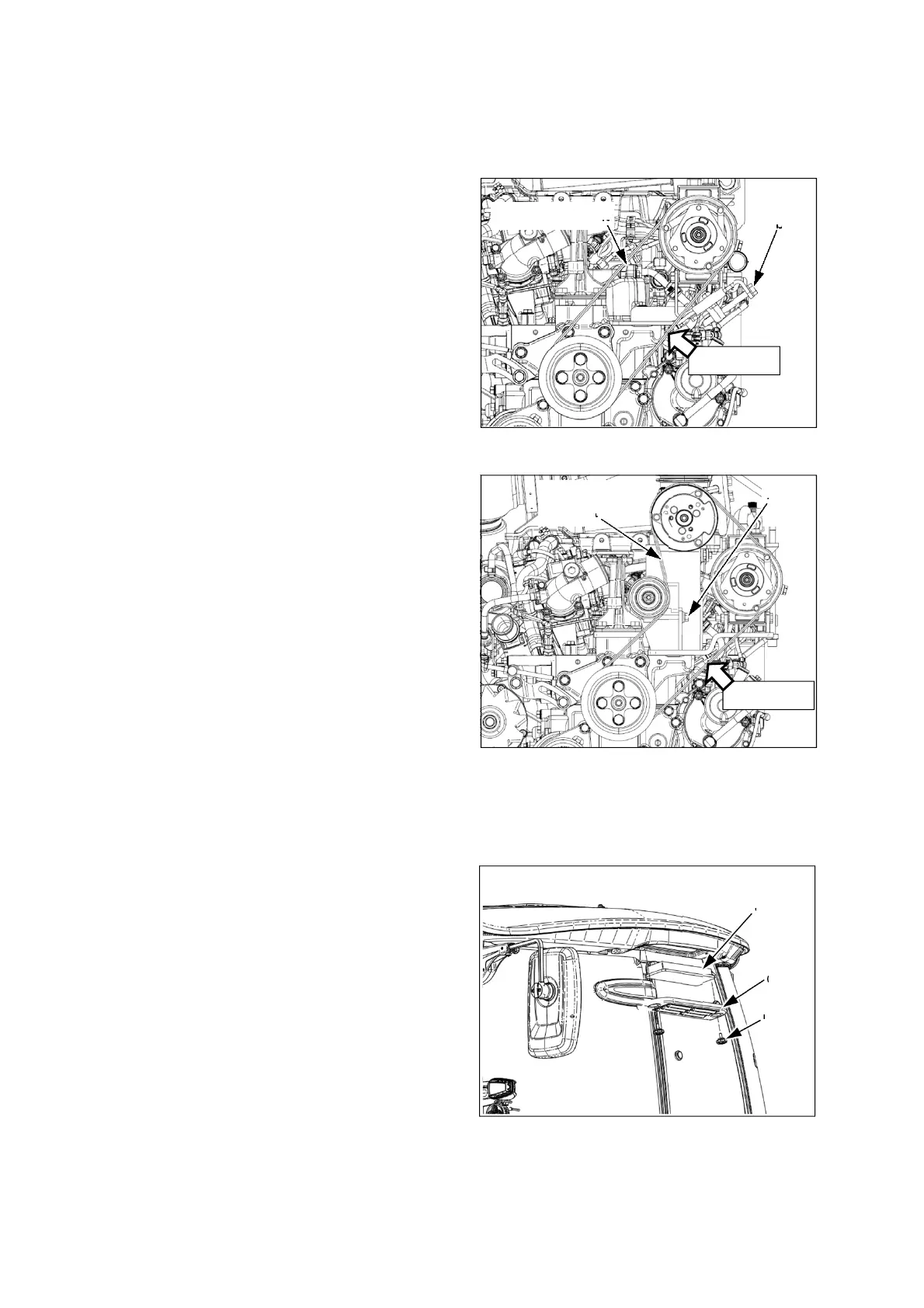

(4) Belt tension adjustment
① Standard type - without Air
trailer brake
 Check if the belt tension is proper, and if
necessary, adjust the tension with adjust bolt.
 Tension : Approx. 10 mm (0.4 in.)
(when pressed by 98N (22 lb))
 Check the damaged part of the belt, and if
necessary, after checking the pulley alignment,
replace it with a new one.
Compressor belt
Check point
Adjust
bolt
Cabin
air filter
Filter
cover
Knobs
