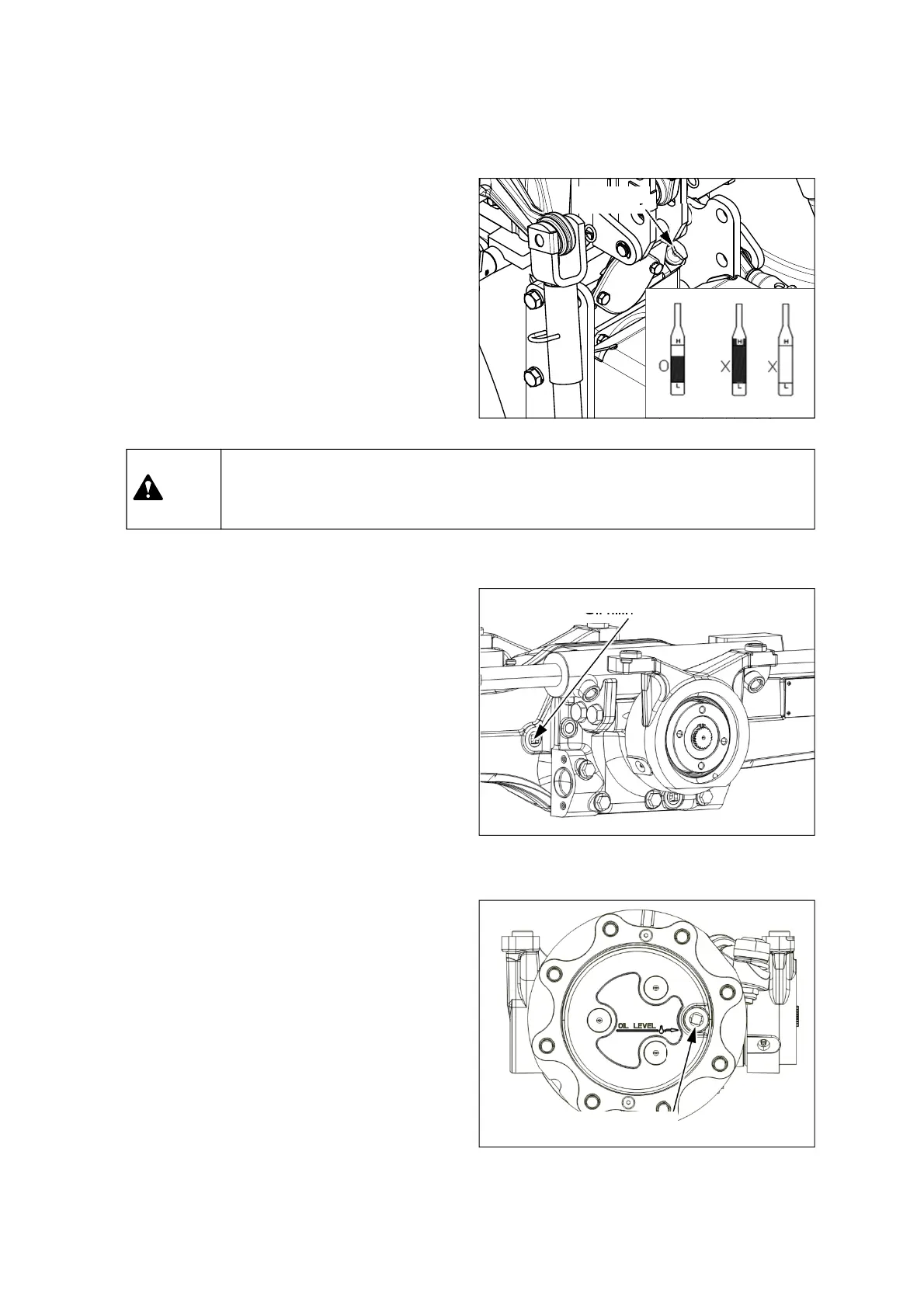

(3) Checking Transmission oil
 Stop the tractor on a level surface and apply the
parking brake and lower the implements to the
ground.
 Clean around oil filling inlet and pull the oil
gauge straight out.
 If oil level is between “Min” and “Max” mark of
the oil gauge, it means proper amount.
 For oil specification, see chapter 5-3, “Lubricants
and Capacity” or the last page in this manual.
Oil gauge
(4) Checking Front axle oil
① Center housing
 Park the tractor on a level surface.
 Open the oil check port plug and be sure to
check if the oil level is full.
 If necessary, add new oil into the oil filling inlet.
(after 5~10 minutes later, check the oil level
again)
 Tighten the oil check port plug.
 For oil specification, see chapter 5-3, “Lubricants
and Capacity” or the last page in this manual.
Oil filling inlet & check port
Oil filling inlet & check port
② Final gear case
 Place the oil check port horizontally.
 Open the oil check port plug and be sure to
check if the oil level is full. If necessary, add new
oil into the oil filling inlet.
 Tighten the oil check port plug, and check the oil
level on the other side.
 For oil specification, see chapter 5-3, “Lubricants
and Capacity” or the last page in this manual.
▶
The contaminated oil may reduce the durability of the power drive line and it can
cause failure of the transmission and hydraulic system. Clean around the oil filling
inlet before opening the gauge.
Caution
