(5) Brake pedals
When stopping the tractor, press both brake
pedals together with depressing clutch pedal.
If the brake pedals are not locked with pedal
latch, left or right brake pedal can be operated
independently. This one-brake pedal operation is
useful to reduce the turning radius in field ground.
DO NOT press the one-brake pedal while the
differential lock is engaged. It may cause
damage or failure of the rear axle.
When brake pedals are pressed, 4WD will be
engaged automatically to brake the front wheels.
When pressing brake pedals with pressing the
throttle pedal first, the engine speed will be
changed to low idle.

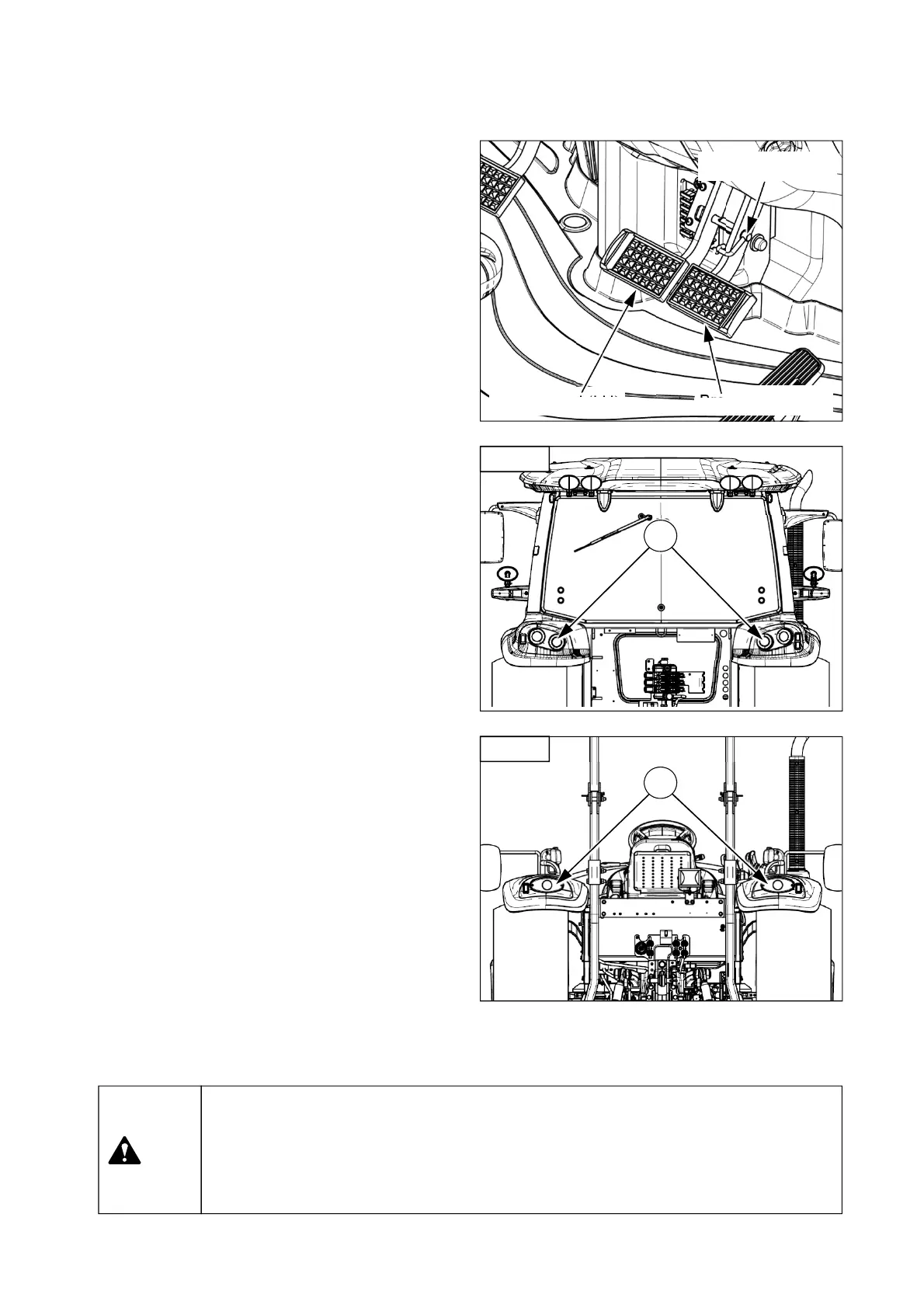

The brake lights① will illuminate when the brake
pedal is depressed and the key switch is “ON”
position.
Brake pedal latch
Brake pedal (RH)
Brake pedal (LH)
Caution
▶When driving on public roads, engage the brake pedals with the brake pedal latch.
If pressing the one-side brake pedal while driving, the tractor may turnover.
▶DO NOT ride your foot on the brake pedals while driving. It can cause damage of
the brake disks and a failure of the brake system.
