5 -28

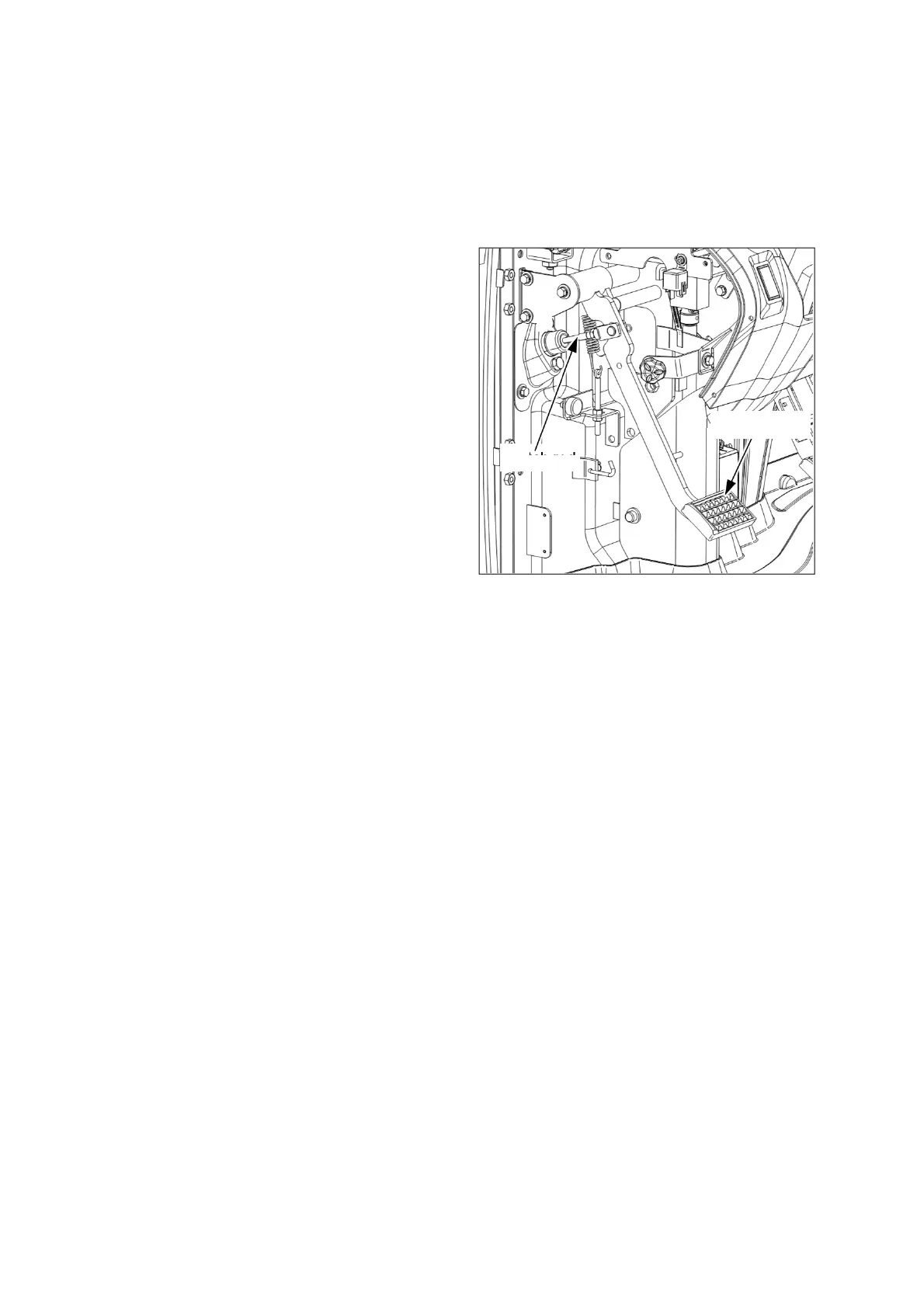

Clutch rod
Clutch pedal
(10) Adjustment of Clutch pedal
play
① Synchro-shuttle(MEC) models
Normal distance: 20~40mm (0.7~1.6 in.)
If the pedal play distance is over the normal
distance, adjust it as below.
1. Loosen locking nut and turn clutch rod to adjust.
2. If the clutch rod is tightened, the pedal play shall
be increased, and if loosened, it shall be
reduced.
3. Pay attention that clutch rod does NOT push the
piston of clutch master cylinder when clutch
pedal is released.
4. After adjusting the pedal play, tighten the locking
nut.
5. Check if the clutch is disengaged completely.
If you need more adjustment for clutch pedal play,
check the oil level and bleed air from the clutch
pedal oil line. (See page 5-51)
②
Power shuttle(PSS) and Power shift
(PST) models
In case of power shuttle models, an electric
sensor to control the power shuttle clutch pack is
attached and tuned specially on the clutch pedal
linkage system.
If this linkage system is changed or modified
arbitrary, it may cause a serious fault or
malfunction to the power shuttle clutch pack.
The air-bleeding of the power shuttle clutch
pedal system is NOT needed.
If you need any service for power shuttle system,
do not hesitate to contact your authorized local
dealer for check.
