LS tractor XP8084 - Checking Nozzle Injection Pressure; Replacing Cabin Air Filters

5 -39
(5) Checking Nozzle injection pressure
 Contact your authorized local dealer for check.
Normal injection pressure : 180 MPa (26107 psi)
(6) Replacing Cabin air filters
 Before servicing the filters, switch off the blower
and close all the cabin doors and windows.
 Cabin air filters are installed on the left and right-
hand side under the cabin roof.
 Unscrew the knobs under the roof and remove
the covers and filter elements as shown in the
right figure.
 Clean both filter chambers with a damp, lint-free
cloth.
 Replace the cabin air filters with a new one.
 Re-install the filter covers and tighten the knobs.
▶ The filters are made of specially treated media with a rubber sealing strip bonded
around the sides. Take care not to damage the element during installation.
Notice

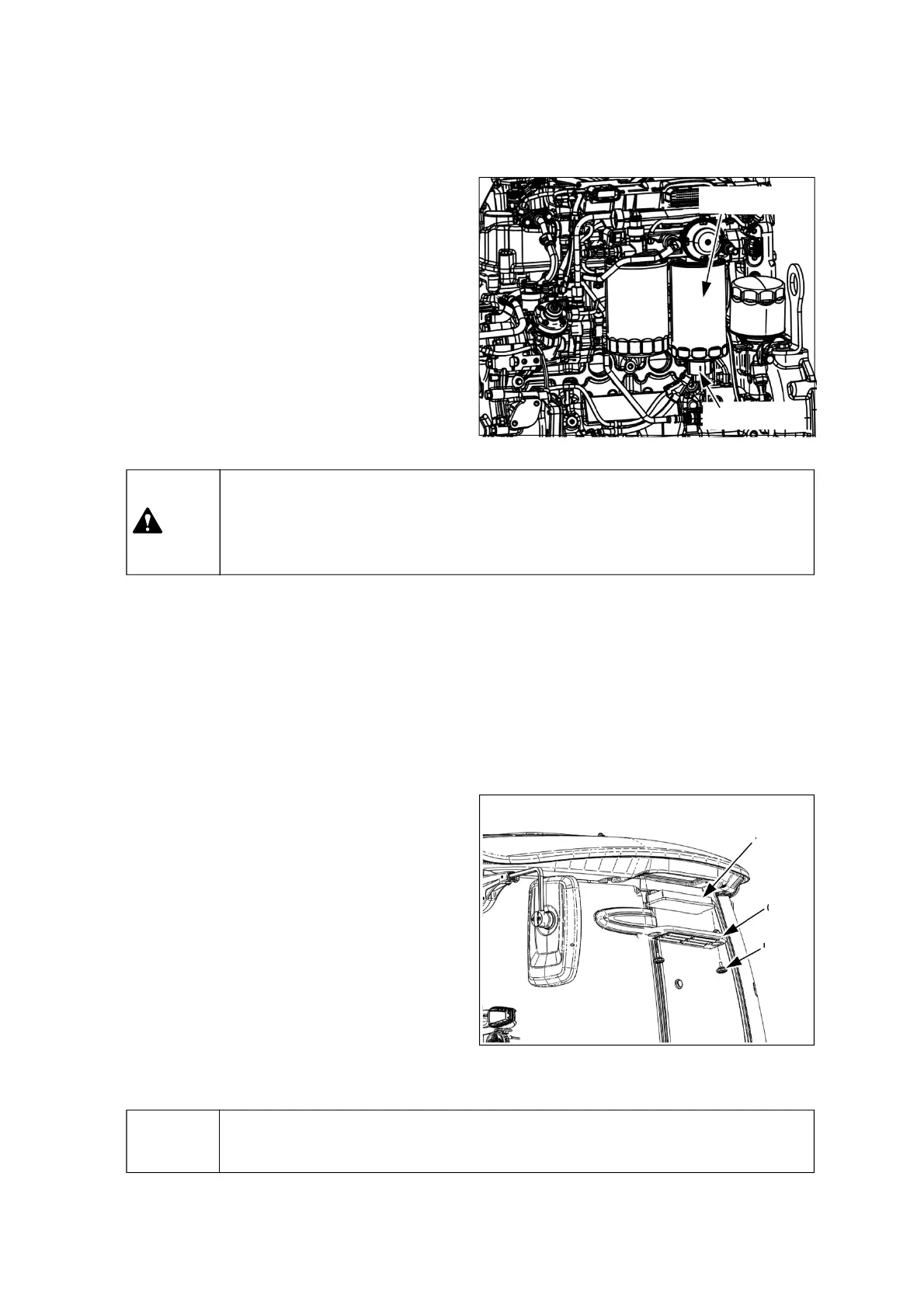

② Fuel pre-filter
 Apply parking brake and set a container under
the fuel pre-filter.
 Remove the electric wiring connected to the
water sensor, and remove water sensor.
 Turn the filter counter-clockwise to remove with
using a filter wrench.
 Coat the seal of new filter with a little fuel.
 Assemble new filter.
 Bleed the air from the fuel pre-filter. (Refer to the
chapter 5-13, “General maintenance” in this
manual.)
Fuel pre-filter
water sensor
▶ Do not allow dirt to enter the fuel system. Thoroughly clean the area around a fuel
system component that will be disconnected. Fit a suitable cover disconnected fuel
system component. Do not fill the new filter with fuel. Invisible fine contaminants
can enter the injection pump and it may cause damage to the fuel injection system.
Caution
Cabin
air filter
Filter
cover
Knobs
