LS tractor XP8084 - Key Switch; Throttle Pedal

3 -14
Throttle pedal
Brake pedals

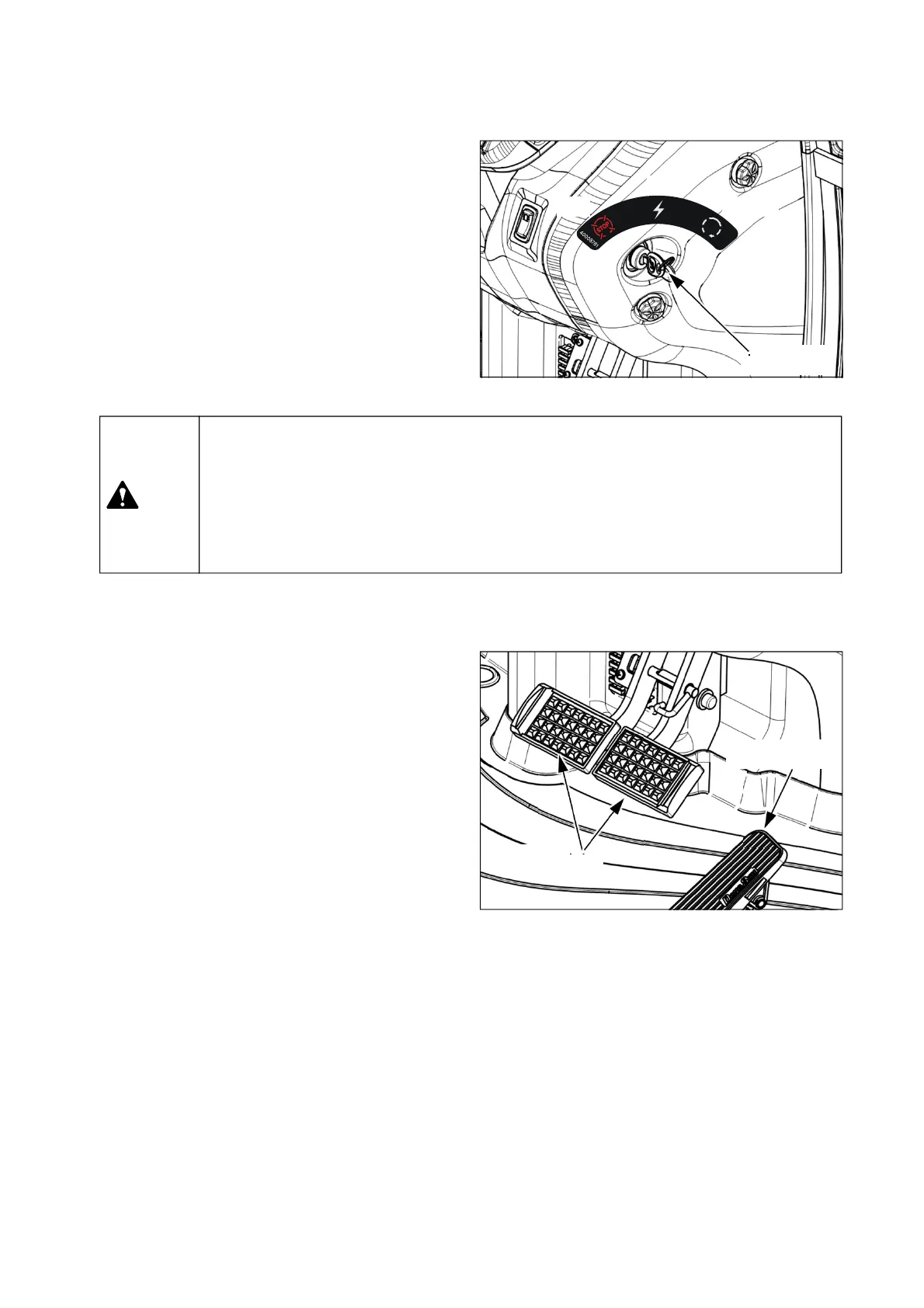

(2) Key switch
 “OFF” – power off (engine stop)
 “ON” – power on
 “START” – engine start
 As soon as the engine starts, turn the ignition
key to “ON” position immediately. If not, it may
cause damage to the starter motor.
Key switch
OFF
ON
START
(3) Throttle pedal
 This pedal is used when driving on the road.
 When pressing the throttle pedal, the engine
speed will be increased.
 When using the throttle pedal, the throttle lever
must be placed in “Low speed” position.
 When pressing brake pedals with pressing the
throttle pedal first, the engine speed will be
changed to the low idle speed.
 When pressing the throttle pedal with pressing
brake pedals first, the engine speed will be
controlled by the throttle pedal.
 There is a sensitive electric sensor on the
throttle pedal. Do not remove or modify the
throttle pedal arbitrarily.
▶ Because a safety switch for start-up has to be engaged, put PTO switch to “OFF”
position, depress the clutch pedal fully, and place the F/R shuttle lever in neutral
position, and then turn the key switch to “Start” position. See chapter 4-2-(1),
“Engine Start” in this manual.
▶ If the tractor is not in use, the ignition key should be removed.
Caution
