(6) Error Diagnosis Code (PST)

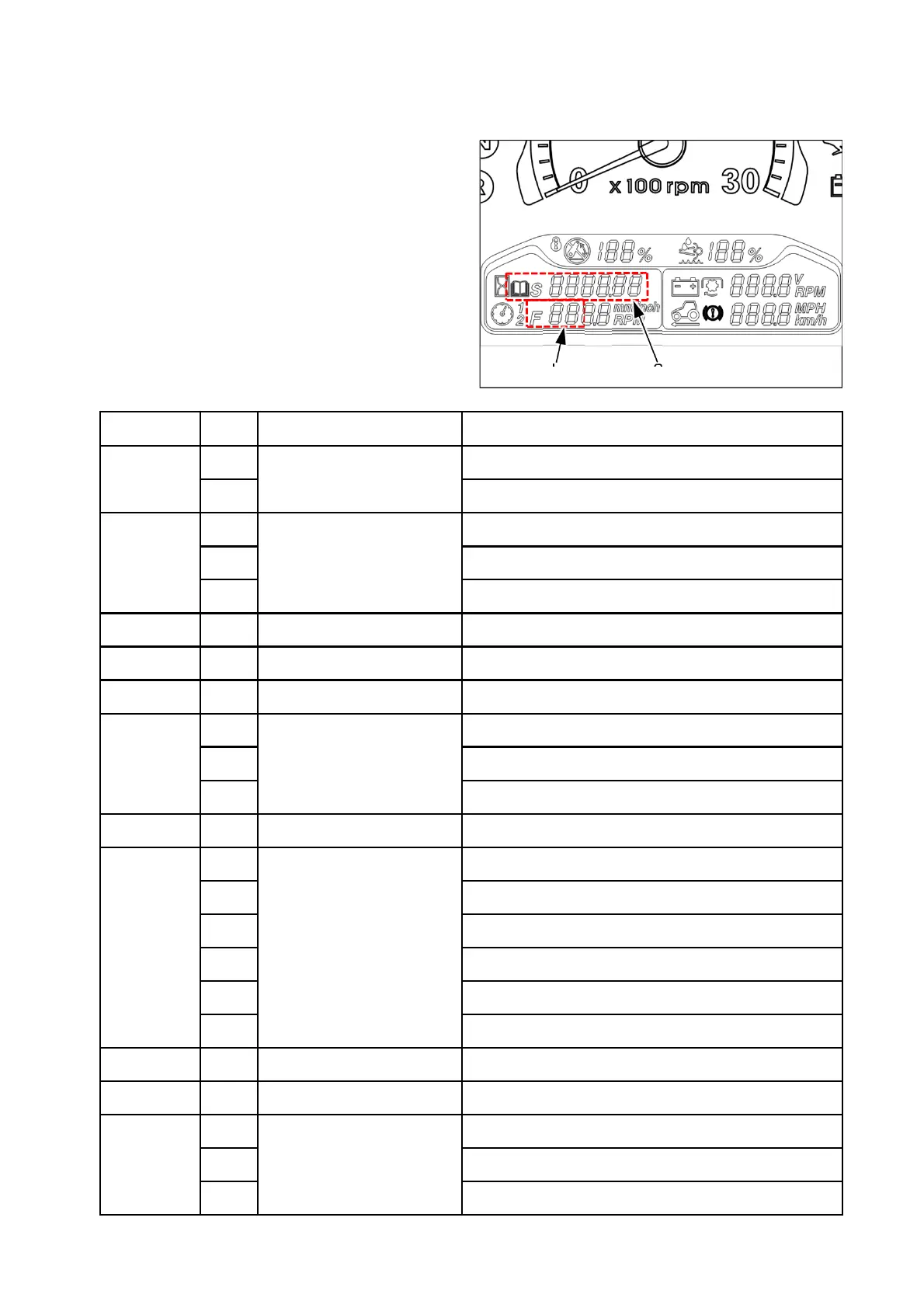

 If any sensor or valve relating to the power shift
system has an error, the error code will be
displayed on the instrument LCD panel as
shown in the right figure.
 In case of several errors, the errors will be
displayed repeatedly every 1 second. In this
case, record all error codes.
 And, contact your authorized local dealer for
check and tell the error code(s).
SPN FMI Relating Part(s) Description
110100
03
Controller input power
Controller input power is shorted.
01 Controller input power is low.
110000
04
Sensor input power(5V)
Sensor input power(5V) circuit is cut-off.
03 Sensor input power(5V) circuit is shorted.
01 Sensor input power(5V) is low.
130200 19 VCM VCM communication error.
130300 19 MCU MCU communication error.
130100 19 ECU ECU communication error.
100000
04
Power shuttle lever
Power shuttle lever circuit is cut-off.
03 Power shuttle lever circuit is shorted.
02 Power shuttle lever position error.
100400 02 Hi/Lo switch Hi/Lo switch error.
100100
04
Clutch pedal sensor
Clutch pedal sensor is cut-off.
03 Clutch pedal sensor if shorted.
11 Clutch pedal calibration is omitted.
13 Clutch pedal calibration range is over.
00 Clutch pedal operation range is over.
01 Clutch pedal operation range is less.
110400 08 C1,C2 speed sensor C1,C2 speed sensor error.
110500 08 C3,C4 speed sensor C3,C4 speed sensor error.
110300
00
TM oil temperature
sensor
TM oil temperature range is over.
04 TM oil temperature sensor is cut-off.
03 TM oil temperature range is shorted.
FMI code SPN code
