LS tractor XP8084 - Fuse & Main Fuse

5 -52

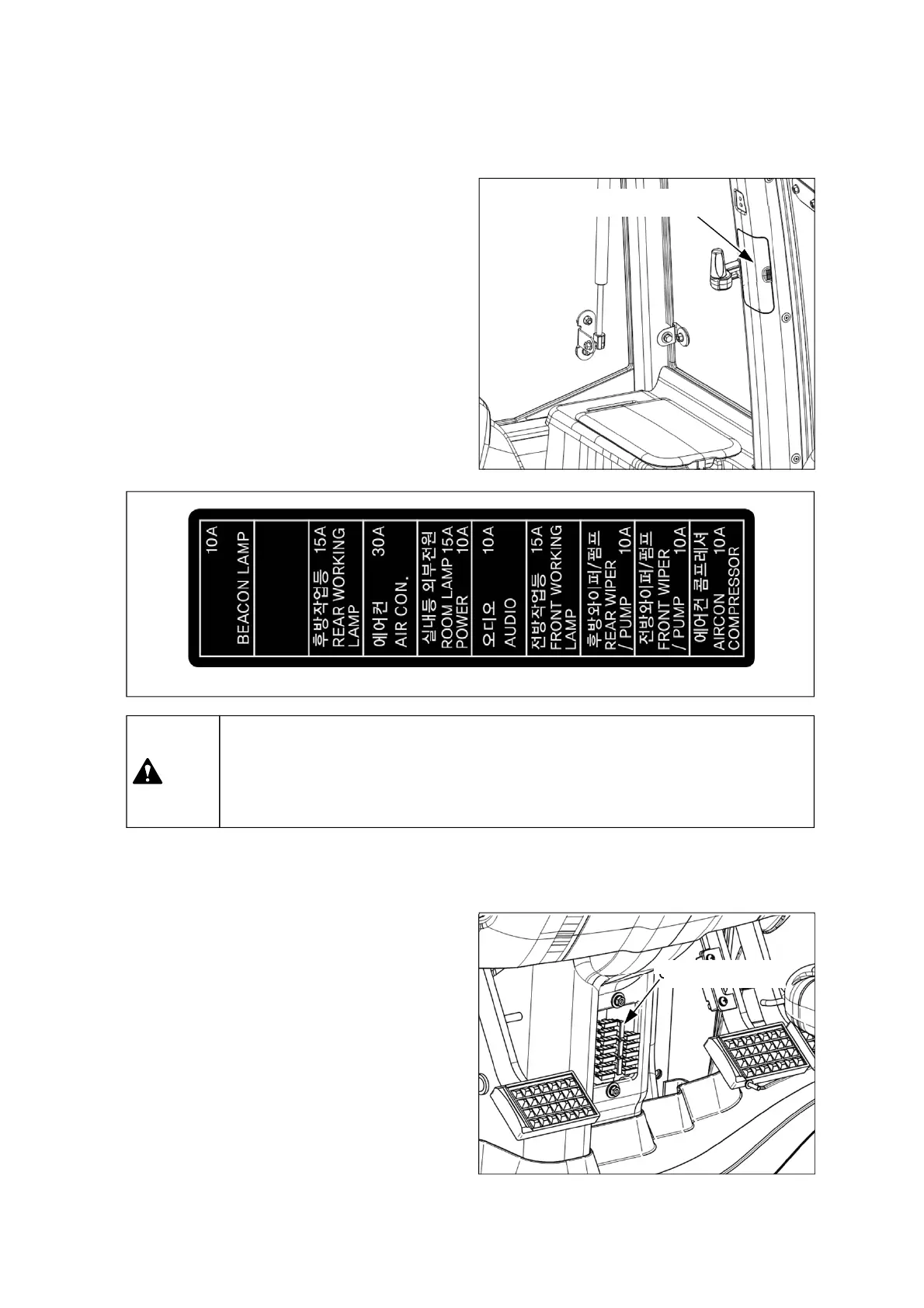

① Cabin fuse box
 Cabin fuse box is installed on the left cabin filler.
 How to replace the fuse.
1. Remove the fuse box cover.
2. Check if each fuse is damaged or not.
3. Replace it with a new one as same as damaged
fuse if necessary.
 Capacity and function of each fuse is described
in the cover of fuse box.
< Cabin fuse box >
(4) Fuse & Main fuse
Cabin fuse box cover
② Chassis fuse box
 Chassis fuse box is installed under the front
console cover.
 How to replace the fuse.
1. Remove the fuse box cover.
2. Check if each fuse is damaged or not.
3. Replace it with a new one as same as damaged
fuse if necessary.
 Capacity and function of each fuse is described
in the cover of fuse box.
Chassis fuse box
▶ If the same function fuse is damaged repeatedly, contact your authorized local
dealer for check. Do not use a substitute such as wire or aluminum foil.
▶ If using the substitute instead of the rated capacity fuse, it may cause a fire which
results in damage of the tractor or serious injury.
Caution
