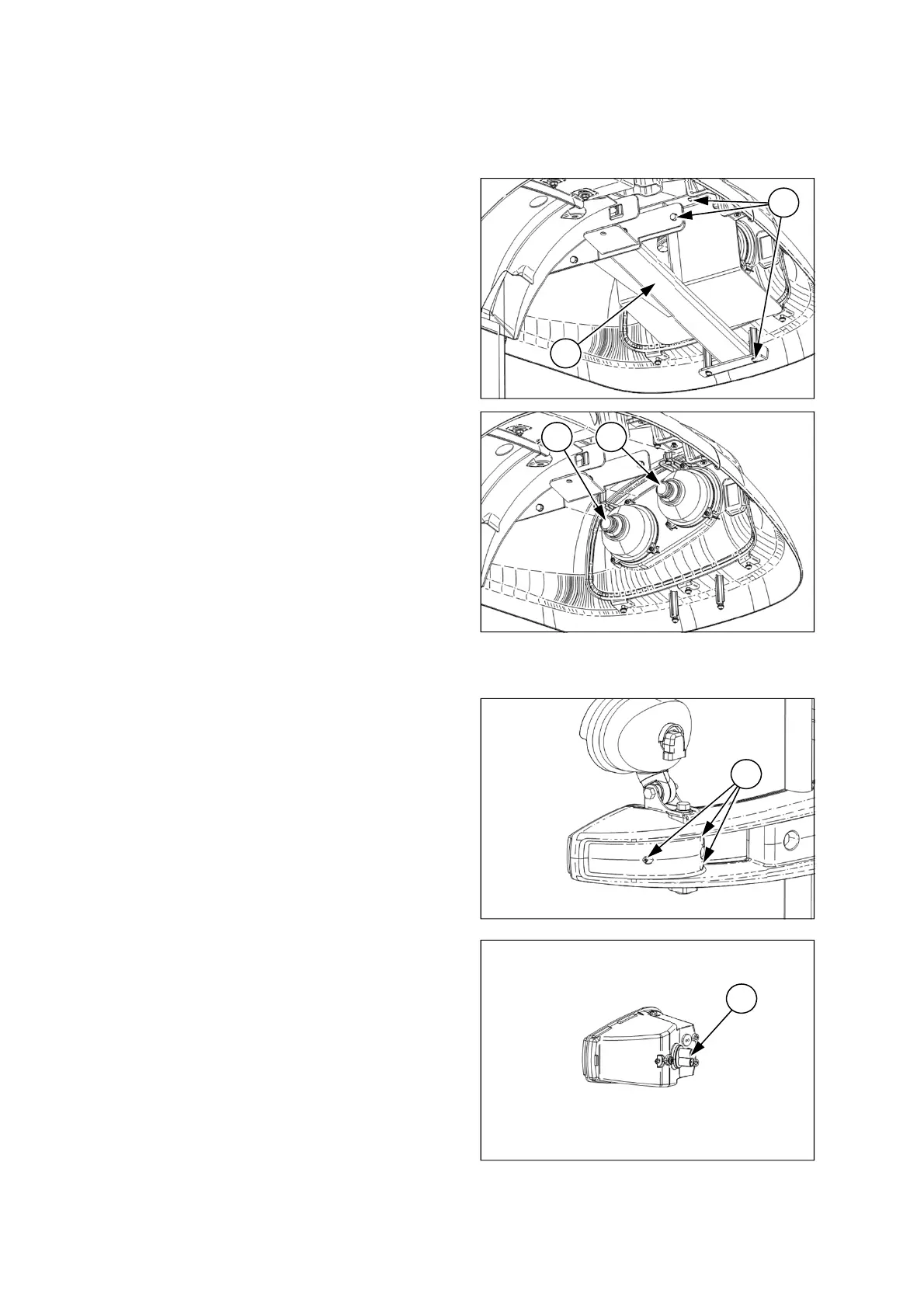

(7) Tail/brake light and Turn signal light bulb – Replace (Bulb type)
②
Front turn signal light bulb –
replacement (Cabin models)
1. Remove the three screws
①
retaining the turn
signal light assembly and remove the
assembly.
2. Turn the socket counter-clockwise and remove
the socket from the housing.
3. Push in on the turn signal light bulb and rotate
counterclockwise in the socket to remove the
old bulb.
4. Insert the new bulb into the socket and turn
the bulb in a clockwise direction until
tightened.
5. Install the socket to the housing.
6. Install the turn signal light assembly to the
cover and tighten the retaining screws.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
1
2
①
Tail/brake light and rear turn signal
light bulb – replacement (Cabin
models)
1. Unscrew the locking screws
①
and remove the
rear mud guard bracket
②
.
2. Turn the socket of the brake light
③
or turn
signal light
④
counter-clockwise to remove the
socket from the housing.
3. Push in on the turn signal light bulb and rotate
counter-clockwise in the socket to remove the
old bulb.
4. Insert the new bulb into the socket and turn the
bulb in a clockwise direction until tightened.
5. Install the socket, and assemble the rear mug
guard bracket
②
with locking screws
①
.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
