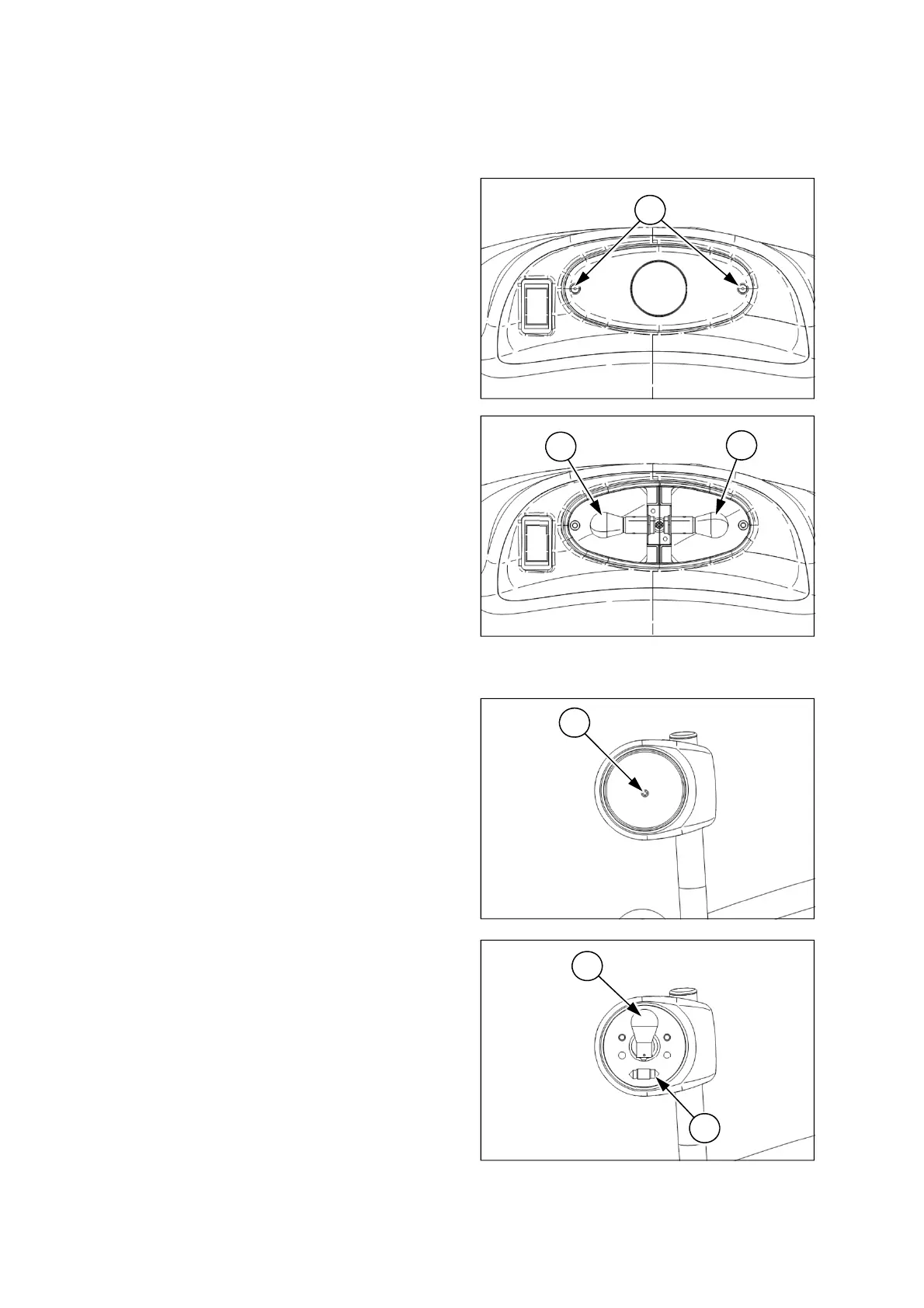

Side light/Front turn signal light
bulb replacement (Roll-bar models)
1. Remove the screw
①
retaining the turn signal
light lens and remove the lens.
2. Push in on the turn signal light bulb
②
and
rotate counterclockwise in the socket to remove
the old bulb.
3. Insert the new bulb into the socket and turn the
bulb in a clockwise direction until tightened.
4. If the side light bulb is damaged, open an
electrode terminal and pull out the bulb, and
replace it with a new one.
5. Install lenses and retaining screw
①
.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
1
3
2
③
Tail/brake light bulb and rear turn
signal light bulb replacement (Roll-
bar models)
1. Remove the two screws
①
retaining the taillight
lens and remove the lens.
2. Push in on the tail/brake light bulb
②
or turn
signal light bulb
③
and rotate counter-clockwise
in the socket to remove the old bulb.
3. Insert the new bulb into the socket and turn the
bulb in a clockwise direction until tightened.
4. Install lenses and retaining screws
①
.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
